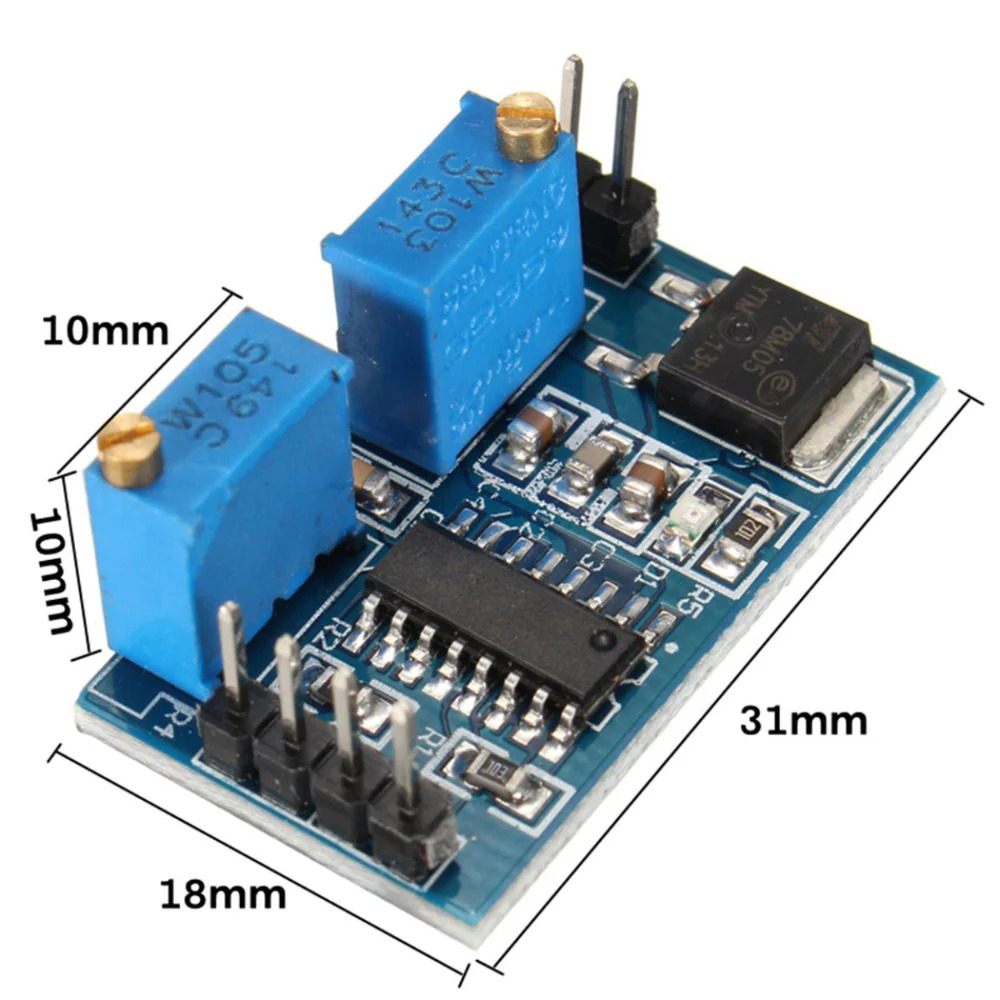

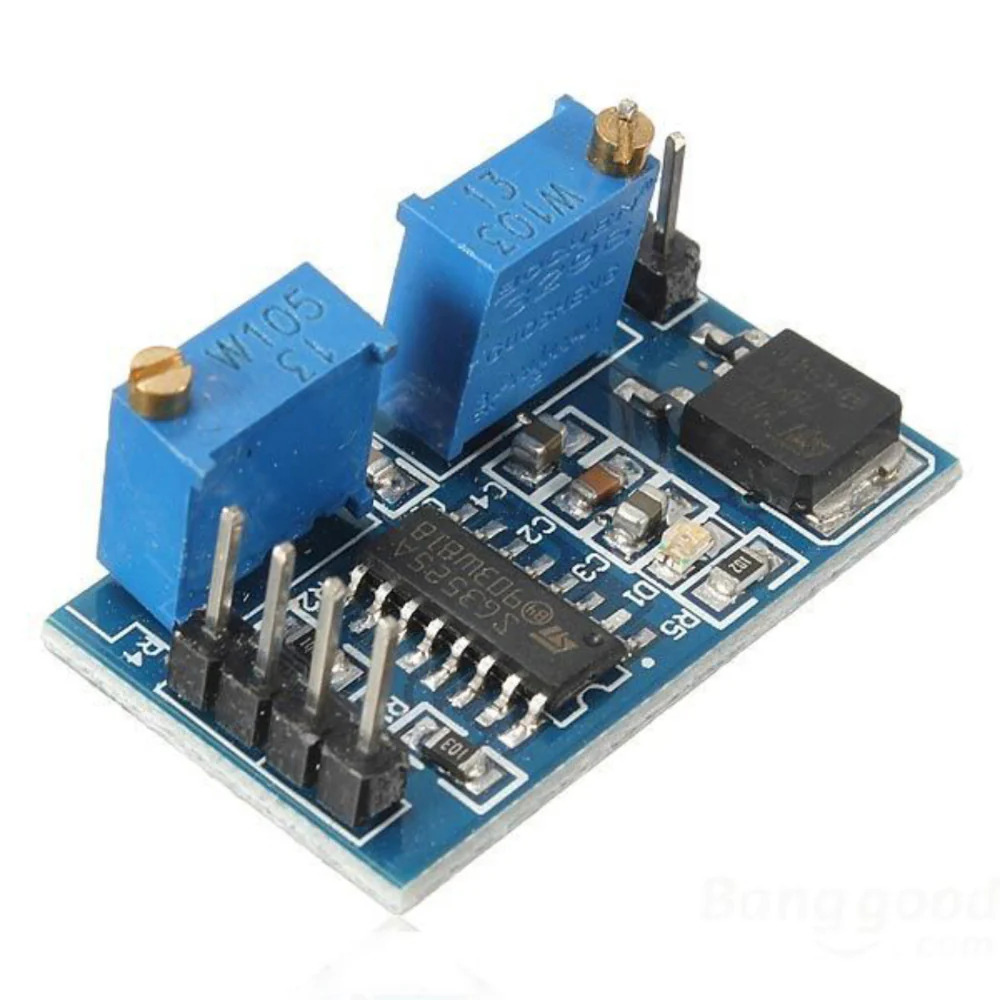

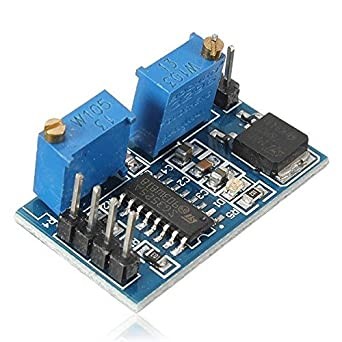

SG3525 PWM Controller Module Adjustable Frequency 100Hz-100KHz (PWM Generator Module)

The SG3525 PWM Controller Module is a versatile pulse width modulation generator designed for frequency and duty cycle control in power electronics, motor control, inverter circuits, switching power supplies, and automation applications. Based on the SG3525 PWM controller IC, it provides stable PWM output with adjustable frequency ranging from 100Hz to 100KHz.

Key Features -

• Based on SG3525 PWM controller IC

• Adjustable frequency from 100Hz to 100KHz

• Stable PWM signal generation

• Adjustable duty cycle control

• Wide operating voltage range

• Compact module design

• Easy integration into electronic projects

Specifications -

• Product type - PWM Controller Module

• Controller IC - SG3525

• Frequency range - 100Hz to 100KHz

• Output type - PWM Signal

• Frequency adjustment - Variable

• Duty cycle adjustment - Adjustable

• Mounting type - PCB Module

• Application - PWM Generation and Control

• Control method - Analog Adjustment

• Additional features - Stable frequency operation

Applications -

• DC motor speed control

• Inverter circuits

• Switching power supplies

• Battery charging systems

• LED brightness control

• Industrial automation

• Electronic development projects
