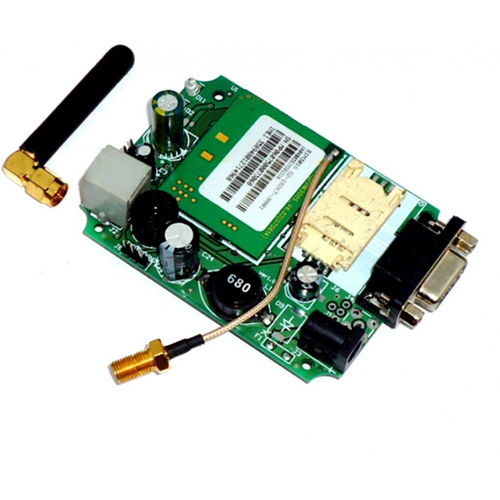

SIM 300 GSM MODEM

The SIM 300 GSM Modem is a compact quad band GSM GPRS communication module designed to add cellular connectivity to embedded systems and microcontroller projects. It enables SMS voice calls GPRS data and remote communication using standard AT commands through a simple serial UART interface.

Based on the entity reference SIM300 GSM GPRS module from the entity reference SIMCom this modem provides reliable mobile network connectivity and is widely used in industrial automation tracking systems and IoT applications. It can be directly interfaced with Arduino Raspberry Pi STM32 and other controllers.

KEY FEATURES

Supports SMS voice call and GPRS data communication

Quad band GSM network support

UART serial interface using AT commands

Built in TCP IP stack for internet connectivity

Supports external SIM card

Stable and reliable performance

Low power operation

Easy integration with microcontrollers

SPECIFICATIONS

Module SIM300

Network Type GSM GPRS

Frequency Bands 850 900 1800 1900 MHz

Operating Voltage 5V to 12V DC typical board dependent

Communication Interface UART TTL or RS232

Baud Rate 9600 to 115200 configurable

GPRS Class Class 10

Control AT command set

SIM Type Standard SIM card

Antenna External GSM antenna

INTERFACES

VCC Power supply

GND Ground

TX Serial transmit

RX Serial receive

RST Reset

SIM Slot SIM card holder

ANT GSM antenna connector

APPLICATIONS

SMS based control systems

Remote monitoring

GPS tracking devices

Home and industrial automation

Vending machines

Security systems

IoT communication

Telemetry and data logging
