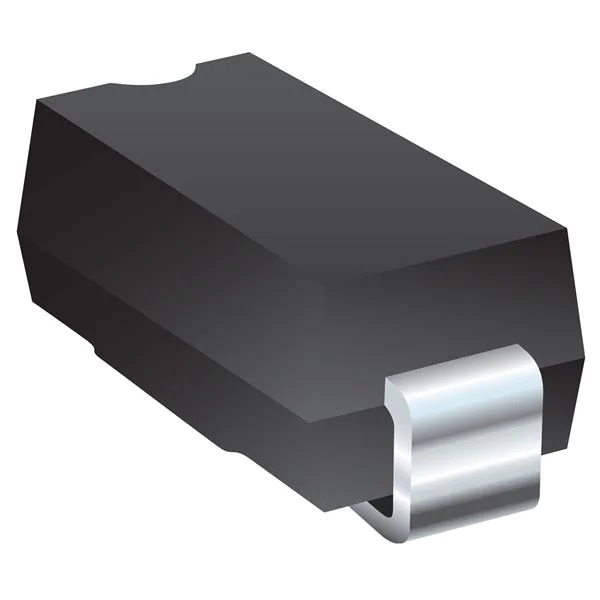

SMBJ13A 13V 600W TVS Diode SMB DO-214AA (Transient Voltage Suppressor Diode)

The SMBJ13A TVS Diode is a unidirectional transient voltage suppressor (TVS) diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning-induced surges, and transient overvoltage events. It features a 13V reverse standoff voltage, 600W peak pulse power dissipation, and an ultra-fast response time, making it ideal for protecting power supplies, industrial equipment, communication interfaces, automotive electronics, and embedded systems.

Housed in a compact SMB (DO-214AA) surface mount package, the SMBJ13A provides reliable surge protection with low leakage current during normal operating conditions.

Key Features -

• Unidirectional TVS protection diode

• 13V reverse standoff voltage

• 600W peak pulse power dissipation

• Ultra-fast response time

• Excellent ESD and surge protection

• Low leakage current

• Compact SMB (DO-214AA) package

• High reliability

Specifications -

• Product Type: Transient Voltage Suppressor (TVS) Diode

• Part Number: SMBJ13A

• Diode Type: Unidirectional TVS Diode

• Package Type: SMB (DO-214AA)

• Reverse Standoff Voltage (VRWM): 13V

• Breakdown Voltage (VBR): 14.4V to 15.9V

• Maximum Clamping Voltage (VC): 21.5V

• Peak Pulse Power Dissipation: 600W (10/1000µs Waveform)

• Peak Pulse Current (IPP): Approximately 28A

• Mounting Type: Surface Mount (SMD)

• Additional Features: Fast response, low leakage current, high surge capability

Applications -

• ESD protection circuits

• Surge protection systems

• Power supply protection

• Industrial control equipment

• Communication interfaces

• Automotive electronics

• Embedded electronic systems

• Consumer electronic devices
