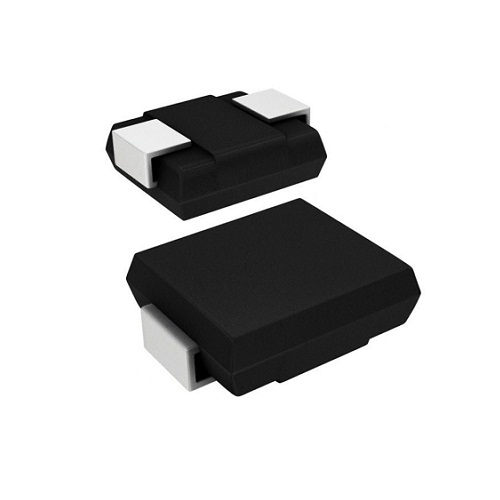

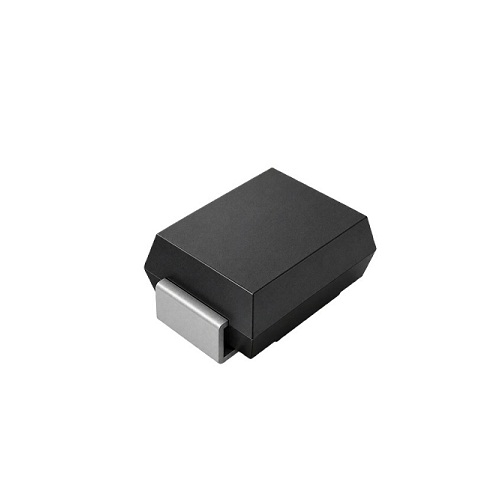

SMBJ15A 15V 600W ESD Suppressor TVS Diode 2Pin SMB DO-214AA (Unidirectional Surface Mount Transient Voltage Suppressor)

The SMBJ15A 15V 600W TVS Diode is a unidirectional Surface Mount Device designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning-induced surges, and transient overvoltage events. Featuring a 15V reverse standoff voltage, 600W peak pulse power capability, and a compact SMB (DO-214AA) package, it provides fast and reliable protection for power supplies, communication interfaces, automotive electronics, and industrial control systems.

Key Features -

• 15V reverse standoff voltage

• 600W peak pulse power rating

• Unidirectional TVS diode

• Fast transient response

• Built-in ESD protection

• Low reverse leakage current

• High surge current capability

• Compact SMB (DO-214AA) package

• Surface Mount Device design

• Ideal for circuit protection applications

Specifications -

• Product Type - Transient Voltage Suppressor Diode

• Model - SMBJ15A

• Device Type - Unidirectional TVS Diode

• Package Type - SMB (DO-214AA)

• Mounting Type - Surface Mount Device

• Number of Pins - 2

• Number of Channels - 1

• Number of Elements - 1

• Reverse Standoff Voltage (VRWM) - 15V

• Breakdown Voltage (Minimum) - 16.7V

• Breakdown Voltage (Maximum) - 18.5V

• Clamping Voltage - 24.4V

• Peak Pulse Power - 600W

• Peak Pulse Current - 24.6A

• Maximum Surge Current - 24.6A

• Maximum Reverse Leakage Current - 1µA

• Maximum Power Dissipation - 600W

• Maximum Operating Temperature - 150°C

• Minimum Operating Temperature - -65°C

• Polarity - Unidirectional

• Composition - Zener

• Compatibility - Surface Mount Device Printed Circuit Board assemblies

Applications -

• ESD protection circuits

• Surge protection

• Power supply protection

• DC power input protection

• Communication interfaces

• Industrial control equipment

• Automotive electronics

• Consumer electronic devices

• Embedded systems

• Surface Mount Device Printed Circuit Board assemblies
