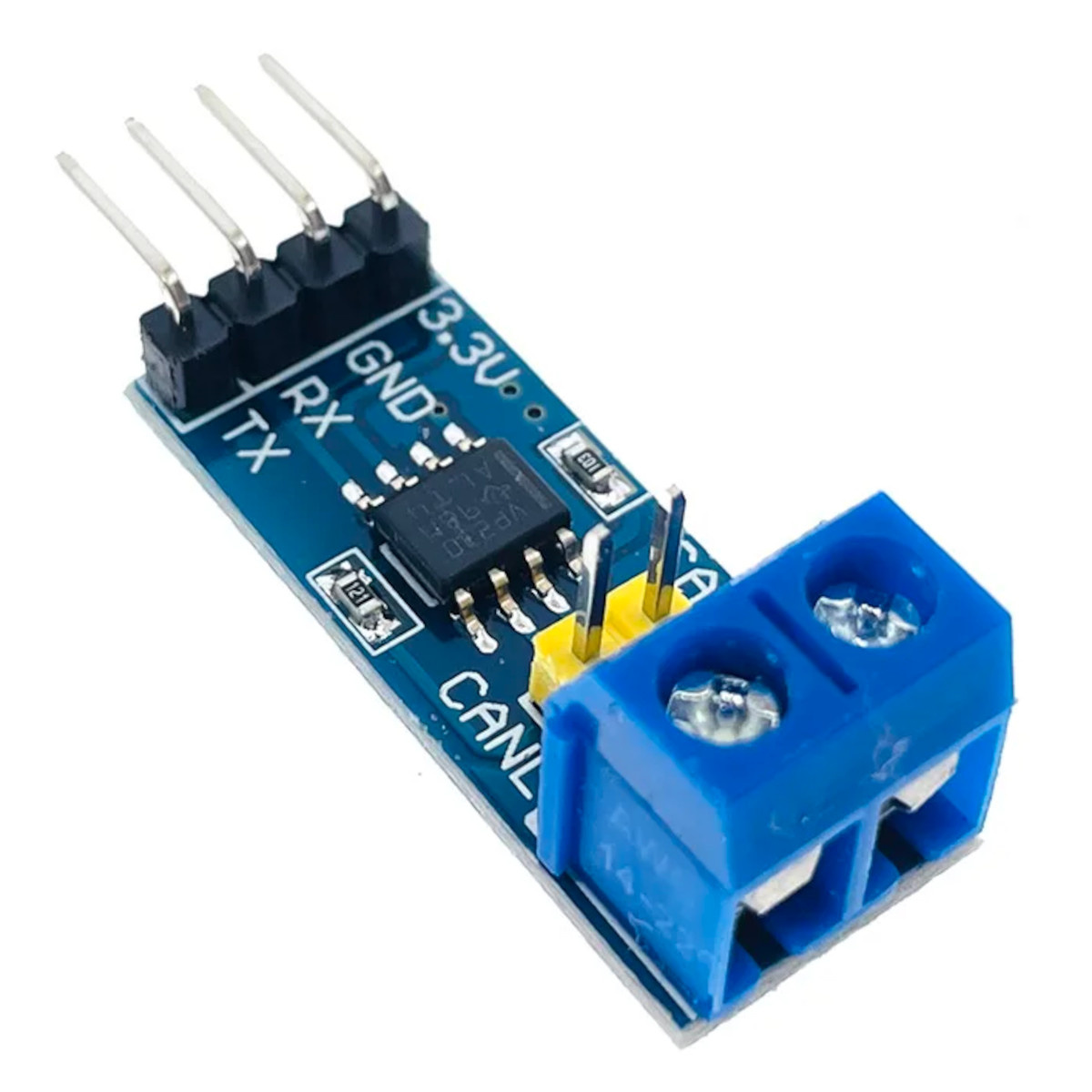

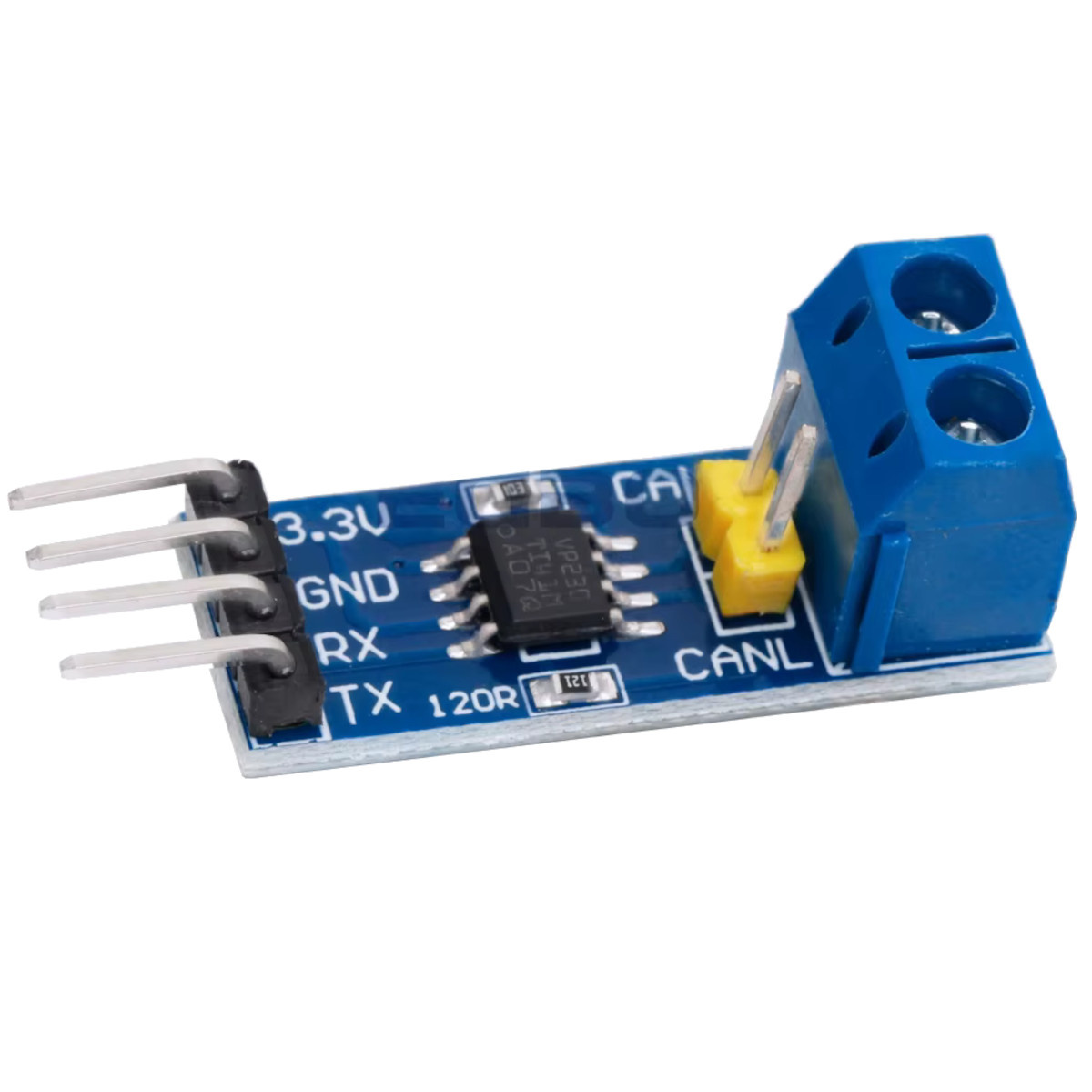

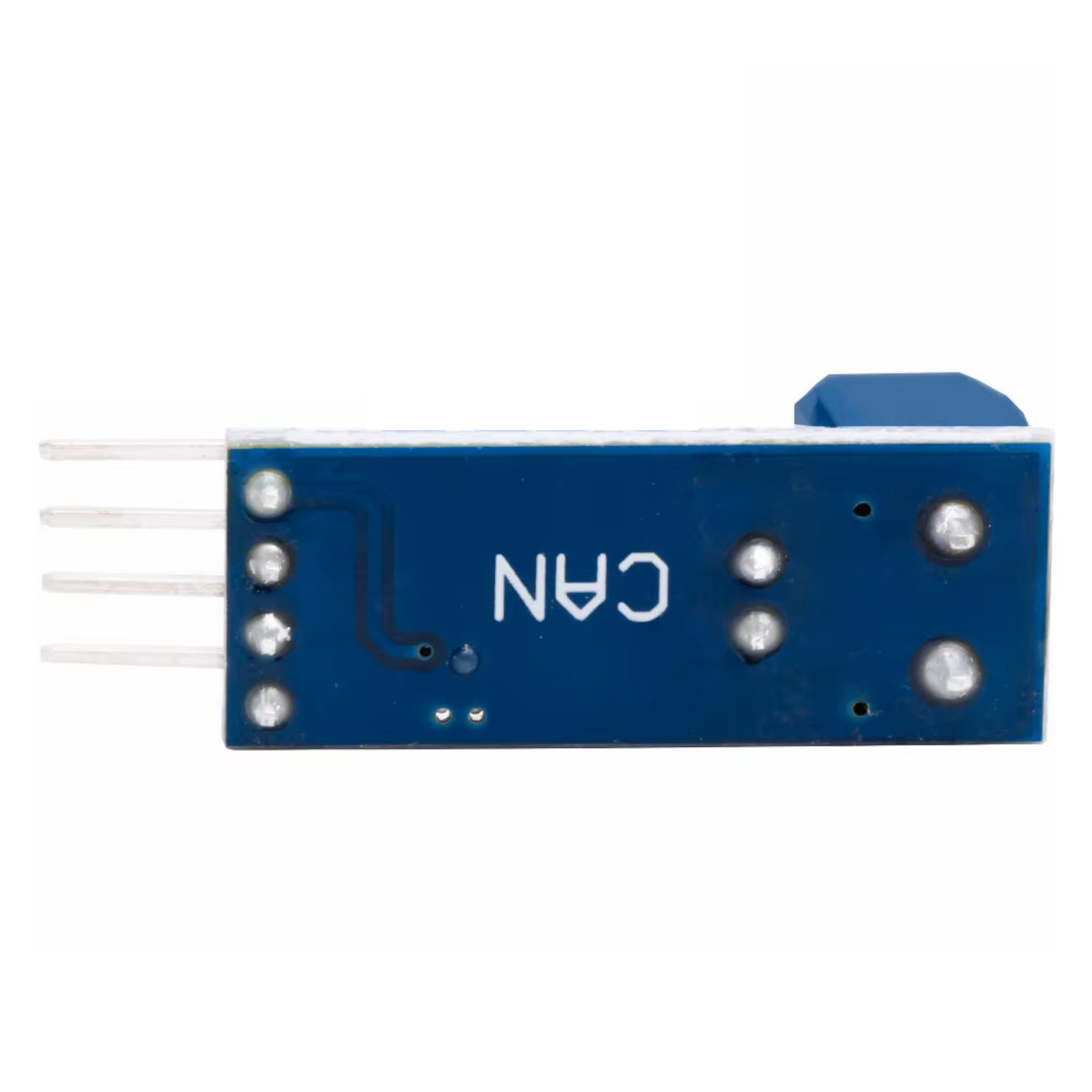

SN65HVD230 CAN Bus Transceiver Module (3.3V 1Mbps)

The SN65HVD230 CAN Bus Transceiver Module is a compact communication board designed to add Controller Area Network (CAN) bus connectivity to microcontroller based systems. It uses the SN65HVD230 transceiver to convert logic level CAN signals into differential CAN bus signals for reliable communication.

The module is suitable for automotive electronics, industrial automation, robotics, embedded networking, and distributed control systems. It can be interfaced with microcontrollers such as Arduino, ESP32, and STM32 that provide CAN controller functionality.

Key Features -

• Based on SN65HVD230 CAN transceiver IC

• Supports high speed CAN bus communication

• 3.3V logic and power operation

• Differential CANH and CANL bus interface

• Communication speed up to 1Mbps

• High noise immunity for reliable communication

• Compact development module

• Suitable for automotive and industrial applications

Specifications -

• Transceiver IC = SN65HVD230

• Communication Protocol = CAN bus

• Operating Voltage = 3.3V DC

• Communication Speed = Up to 1Mbps

• Bus Interface = CANH and CANL

• Signal Type = Differential CAN communication

• Logic Interface = TXD and RXD

• Application = Automotive networking and industrial automation

Applications -

• Automotive CAN bus networks

• Industrial automation

• Robotics and distributed control

• Embedded networking

• Vehicle monitoring systems

• Motor control systems

• IoT and industrial communication projects
