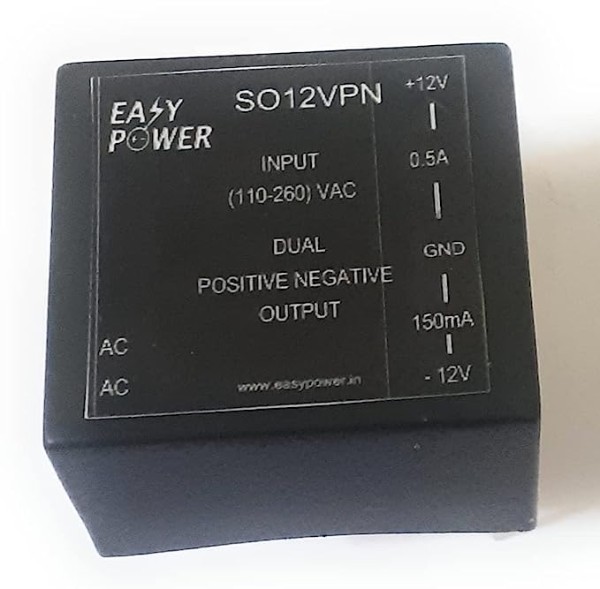

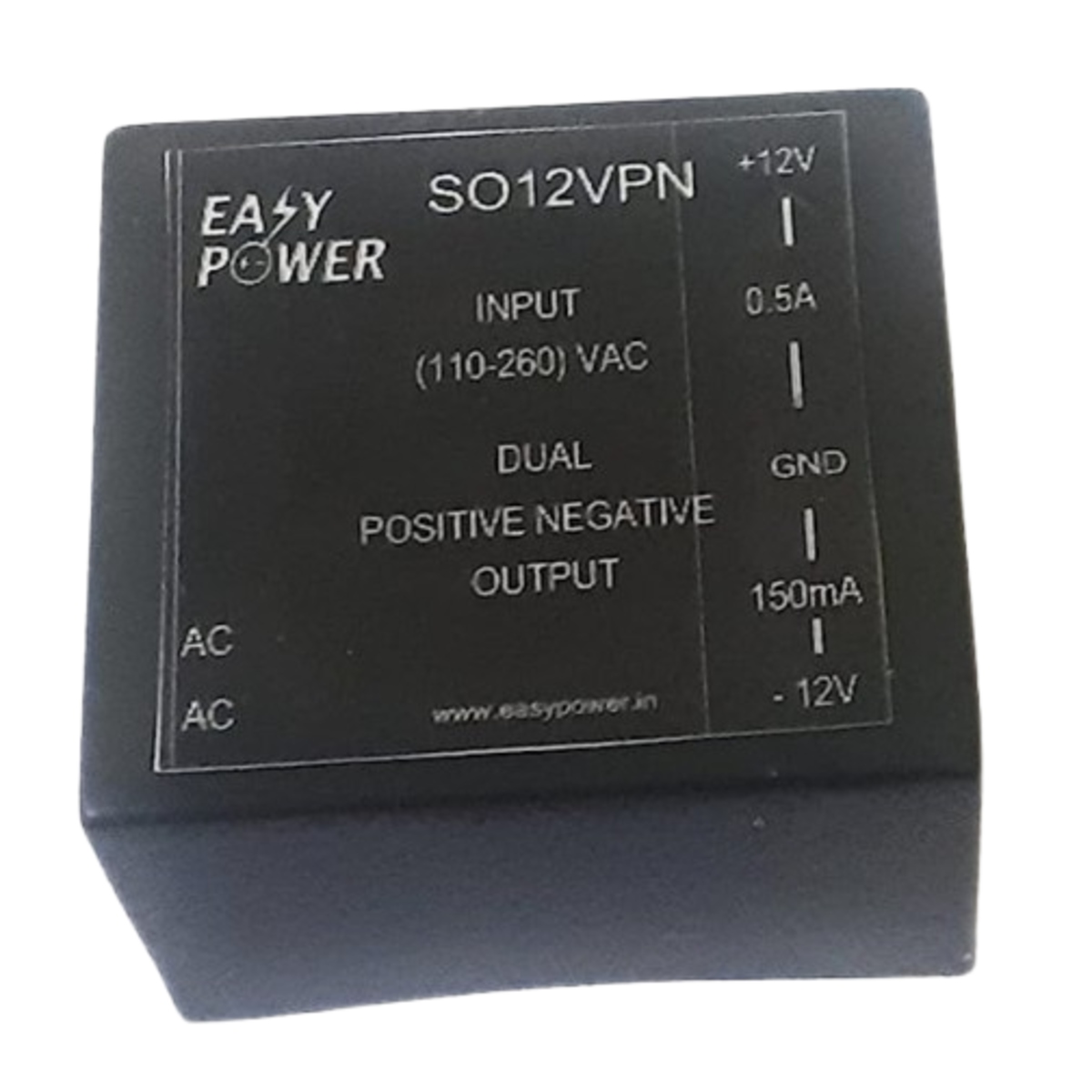

SO12VPN 110-260VAC to Dual 12V and -12V DC Power Supply Module (Dual Rail SMPS)

The SO12VPN Power Supply Module is a compact AC to DC switching power supply designed to convert a wide 110-260V AC input into regulated positive and negative DC voltage rails of +12V and -12V. The dual output configuration is suitable for electronic circuits requiring symmetrical power supplies.

The module is suitable for operational amplifier circuits, analog signal processing, instrumentation, industrial control systems, audio circuits, and mixed-signal electronics. Its compact PCB mountable design allows direct integration into electronic equipment and custom power supply assemblies.

KEY FEATURES -

• Wide 110-260V AC input range

• Dual regulated outputs of +12V DC and -12V DC

• Provides positive and negative voltage rails

• Compact PCB mountable design

• Switching mode power supply design

• Suitable for analog and mixed-signal circuits

• Suitable for operational amplifier applications

• Efficient AC to DC power conversion

SPECIFICATIONS -

• Model = SO12VPN

• Input Voltage = 110-260V AC

• Output Voltage = +12V DC / -12V DC

• Output Configuration = Dual positive and negative rail

• Conversion Type = AC to DC switching power supply

• Power Supply Type = SMPS

• Mounting Type = PCB mount

• Output Current = Depends on module version and load rating

• Application = Dual rail power supply

APPLICATIONS -

• Operational amplifier circuits

• Analog signal processing

• Audio amplifier circuits

• Industrial control systems

• Instrumentation equipment

• Mixed-signal electronic systems

• Sensor interface circuits

• Embedded power supply applications
