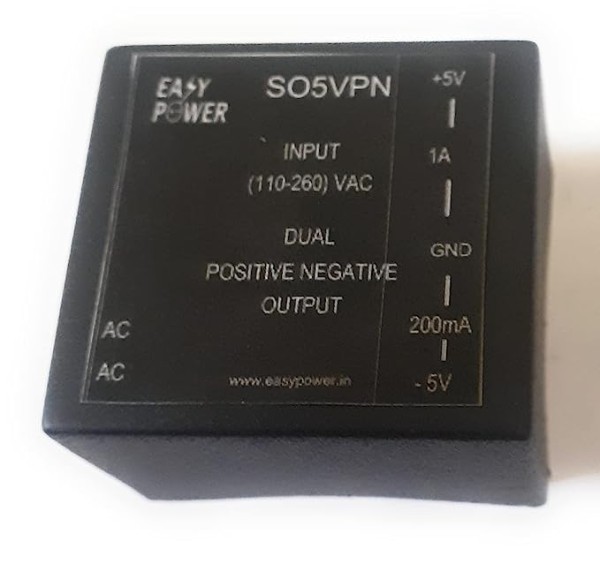

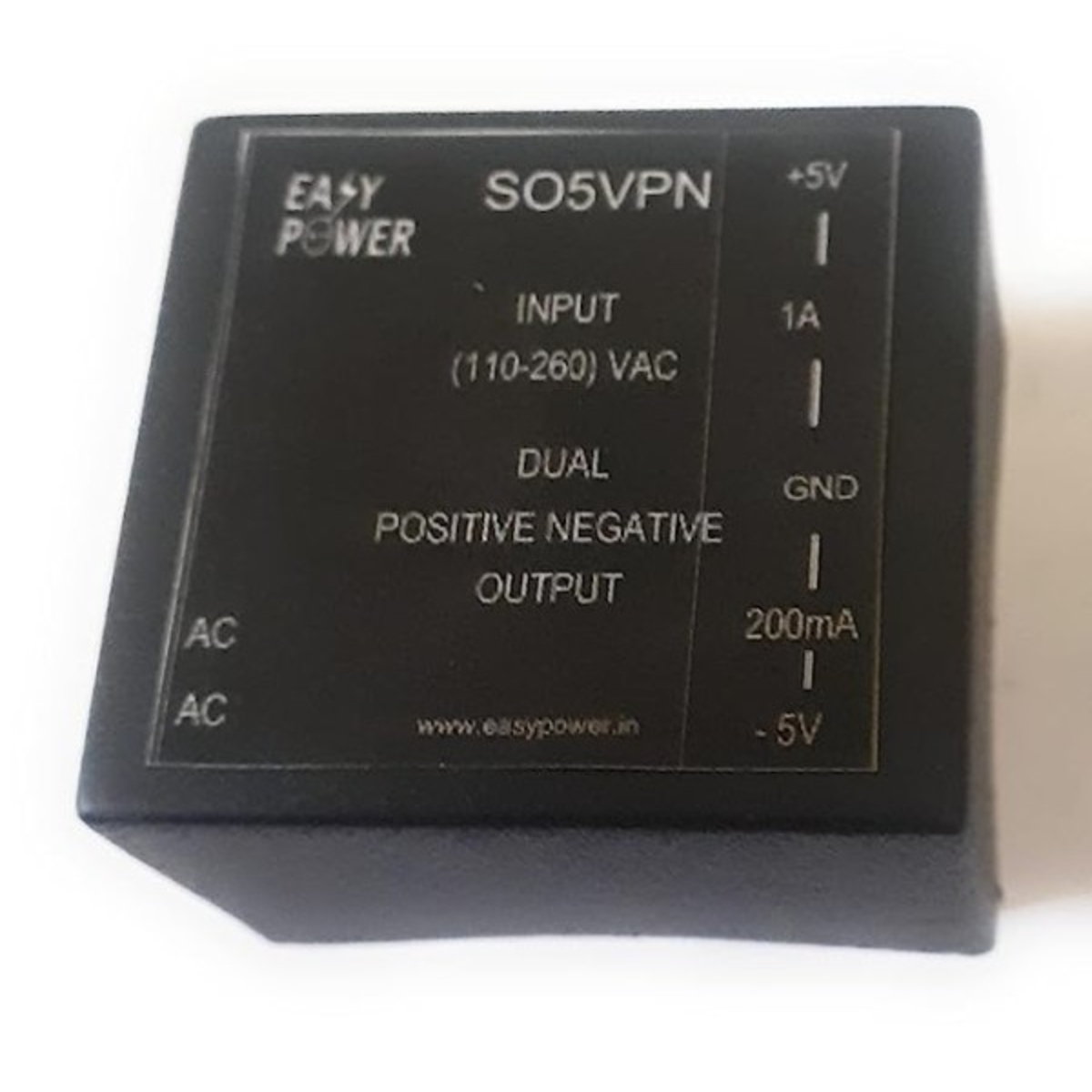

SO5VPN 110-260VAC To Dual 5V And -5V DC Power Supply Module (Isolated Dual Output SMPS)

The SO5VPN Power Supply Module is a compact isolated AC-DC switching power supply designed to provide regulated +5V DC and -5V DC outputs from a wide 110-260V AC input. It is suitable for PCB mounting in embedded, industrial, instrumentation, and mixed-signal electronic systems.

The dual-output design allows a single module to provide both positive and negative voltage rails for analog circuits, operational amplifiers, signal processing systems, and other applications requiring dual-polarity DC power. Its compact construction enables easy integration into custom PCB assemblies.

Key Features -

• Dual DC outputs of +5V and -5V

• Wide 110-260V AC input range

• Compact PCB mountable design

• Isolated AC-DC switching power supply

• Stable regulated positive and negative outputs

• Low ripple output performance

• High-efficiency power conversion

• Suitable for dual-rail electronic circuits

• Ideal for embedded and industrial applications

• Easy integration into custom PCB assemblies

Specifications -

• Product Type: Dual Output AC-DC SMPS Module

• Model: SO5VPN

• Input Voltage: 110-260V AC

• Output Voltage: +5V DC / -5V DC

• Output Current: According to module rating, typically 500-1000mA

• Output Power: Up to 10W typical

• Isolation Type: Galvanic Isolation

• Conversion Type: Switching Regulator SMPS

• Output Type: Dual Regulated DC

• Mounting Type: PCB Through Hole

• Application: Dual-Rail DC Power Supply

Applications -

• Analog electronic circuits

• Operational amplifier circuits

• Mixed-signal systems

• Signal processing equipment

• Instrumentation systems

• Embedded electronic devices

• Industrial control systems

• Communication equipment

• PCB power supply designs

• DIY dual-rail power supply projects
