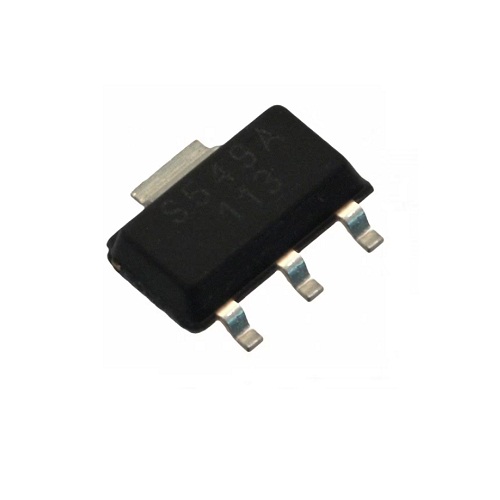

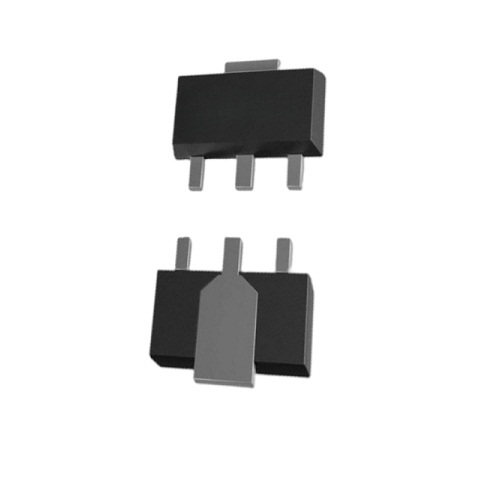

SS566AT Board Mount Hall Effect Magnetic Sensor Hall Latching SOT-89B (Bipolar Hall Effect Sensor Integrated Circuit)

The SS566AT Board Mount Hall Effect Magnetic Sensor Hall Latching SOT-89B is designed for magnetic field detection, position sensing, speed sensing, and proximity detection applications. It provides a reliable bipolar Hall latching output with stable switching characteristics, making it suitable for industrial, automotive, and consumer electronic systems.

Key Features -

• Bipolar Hall latching magnetic sensor

• Surface Mount Device SOT-89B package

• Reliable digital magnetic field detection

• Operating supply current of 8.7mA

• Maximum output current up to 20mA

• Operating point from 100G to 180G

• Stable switching performance

• Suitable for high-reliability magnetic sensing applications

Specifications -

• Product Type - Hall Effect Magnetic Sensor Integrated Circuit

• Model - SS566AT

• Type - Bipolar Hall Latching

• Mounting Type - Surface Mount

• Package Type - SOT-89B

• Operating Supply Current - 8.7mA

• Maximum Output Current - 20mA

• Operating Point - 100G to 180G

• Compatibility - Surface Mount Device Printed Circuit Board assemblies

Applications -

• Brushless Direct Current motor commutation

• Position sensing systems

• Rotary encoder circuits

• Speed detection

• Magnetic proximity switches

• Industrial automation equipment

• Automotive electronic systems

• Consumer electronic devices
