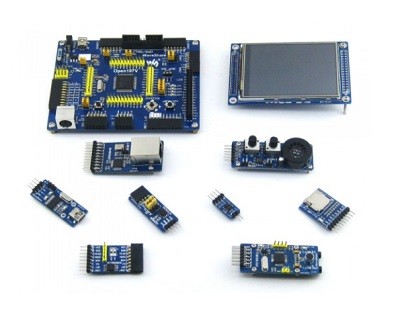

STM32F103RCT6 STM32F103 STM32 ARM Cortex-M3 Open103R Development Board + 8 Modules Kits + PL2303 USB UART

The STM32F103RCT6 Open103R Development Board is based on the ARM Cortex-M3 microcontroller and designed for embedded system development and prototyping. It provides a complete platform for learning, testing, and application design using the STM32F103 series MCU. The board includes essential onboard peripherals and expansion support for rapid development.

This kit includes 8 functional modules for practical interfacing and experimentation along with a PL2303 USB UART converter for programming and serial communication. It is suitable for engineering students, R and D development, industrial control projects, and embedded system training.

KEY FEATURES

• Based on STM32F103RCT6 ARM Cortex-M3 MCU
• Open103R development board platform
• Includes 8 interface modules for experimentation
• PL2303 USB to UART converter included
• Onboard clock and reset circuit
• Multiple GPIO and peripheral support
• Suitable for embedded system development

SPECIFICATIONS

• Microcontroller - STM32F103RCT6
• Core Architecture - ARM Cortex-M3
• Operating Voltage - 3.3V DC
• Flash Memory - 256KB
• SRAM - 48KB
• Communication Interfaces - USART SPI I2C CAN USB
• Development Type - Embedded development board kit

INTERFACES

• USB UART - Programming and serial communication
• GPIO Headers - External peripheral connection
• USART Ports - Serial communication
• SPI Interface - Peripheral communication
• I2C Interface - Sensor and device interface
• CAN Interface - Industrial communication
• Power Input - 5V DC supply
