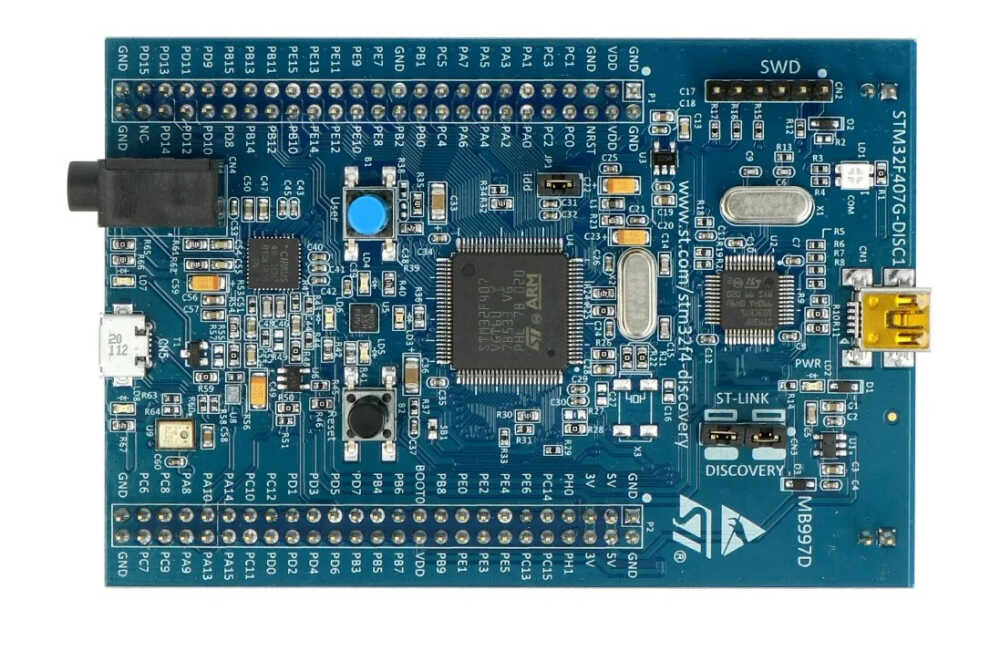

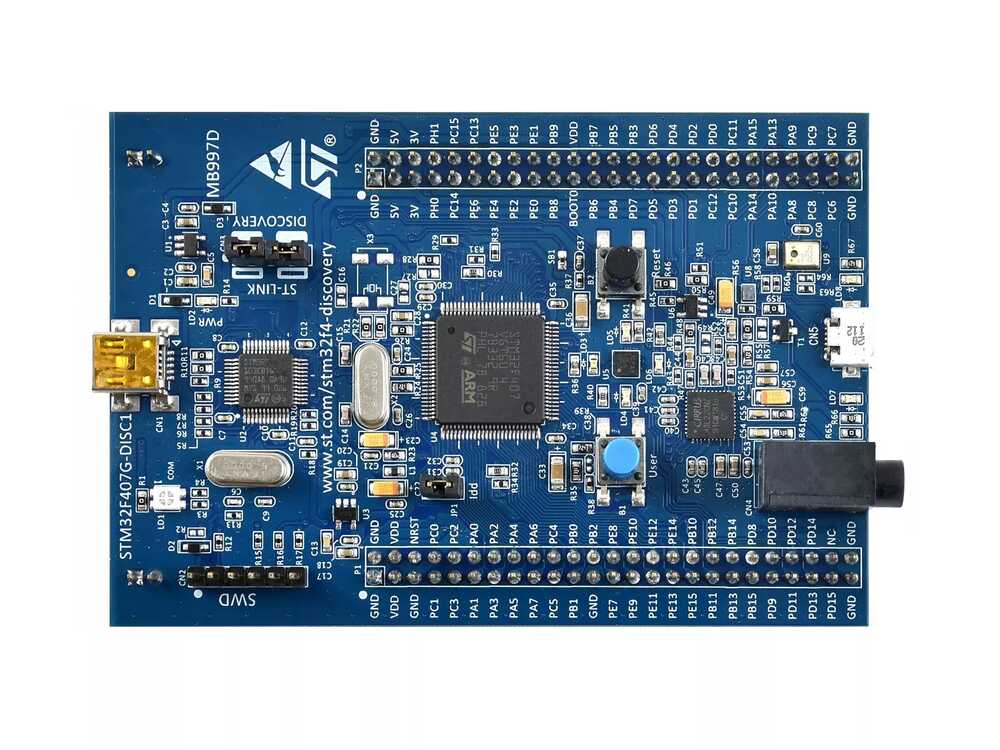

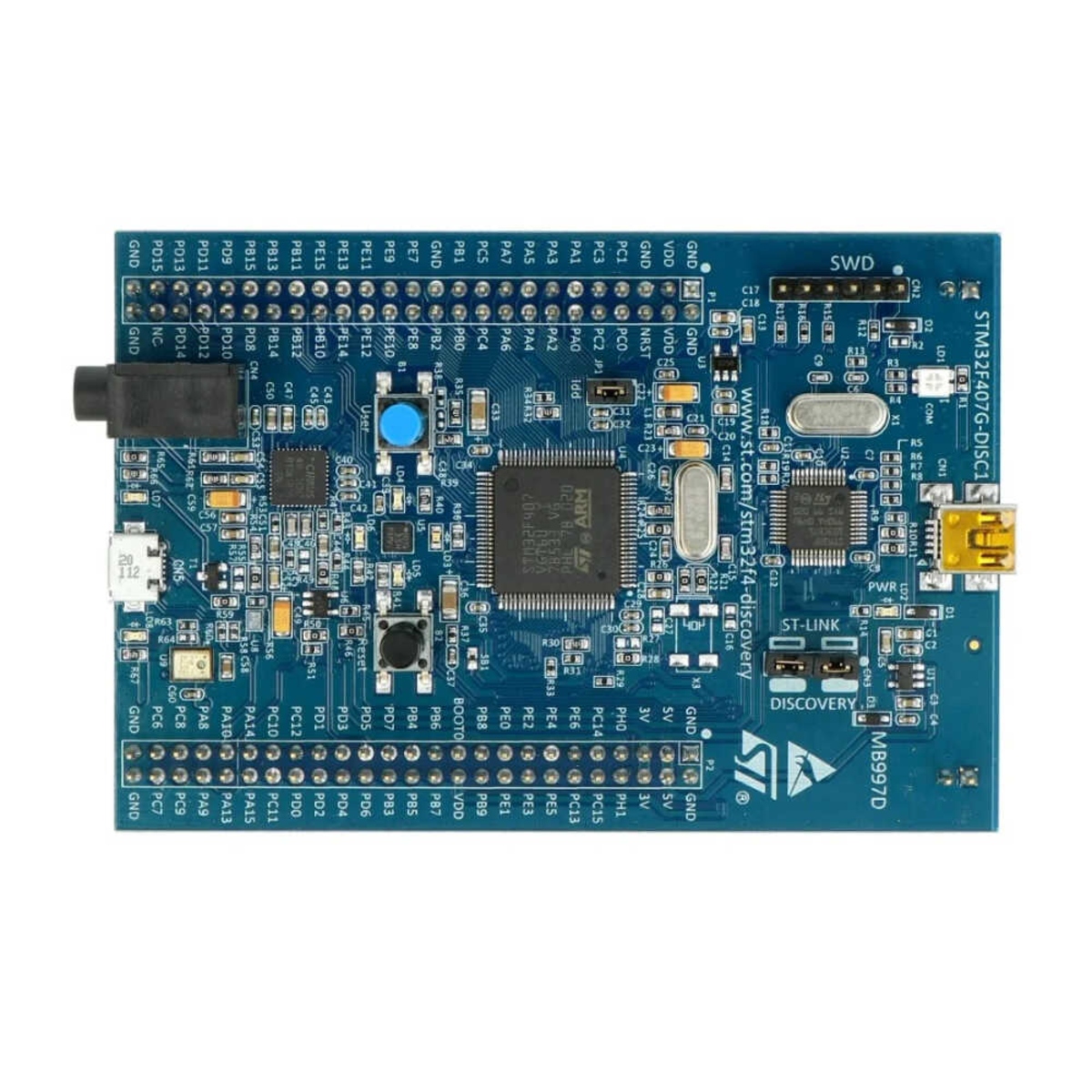

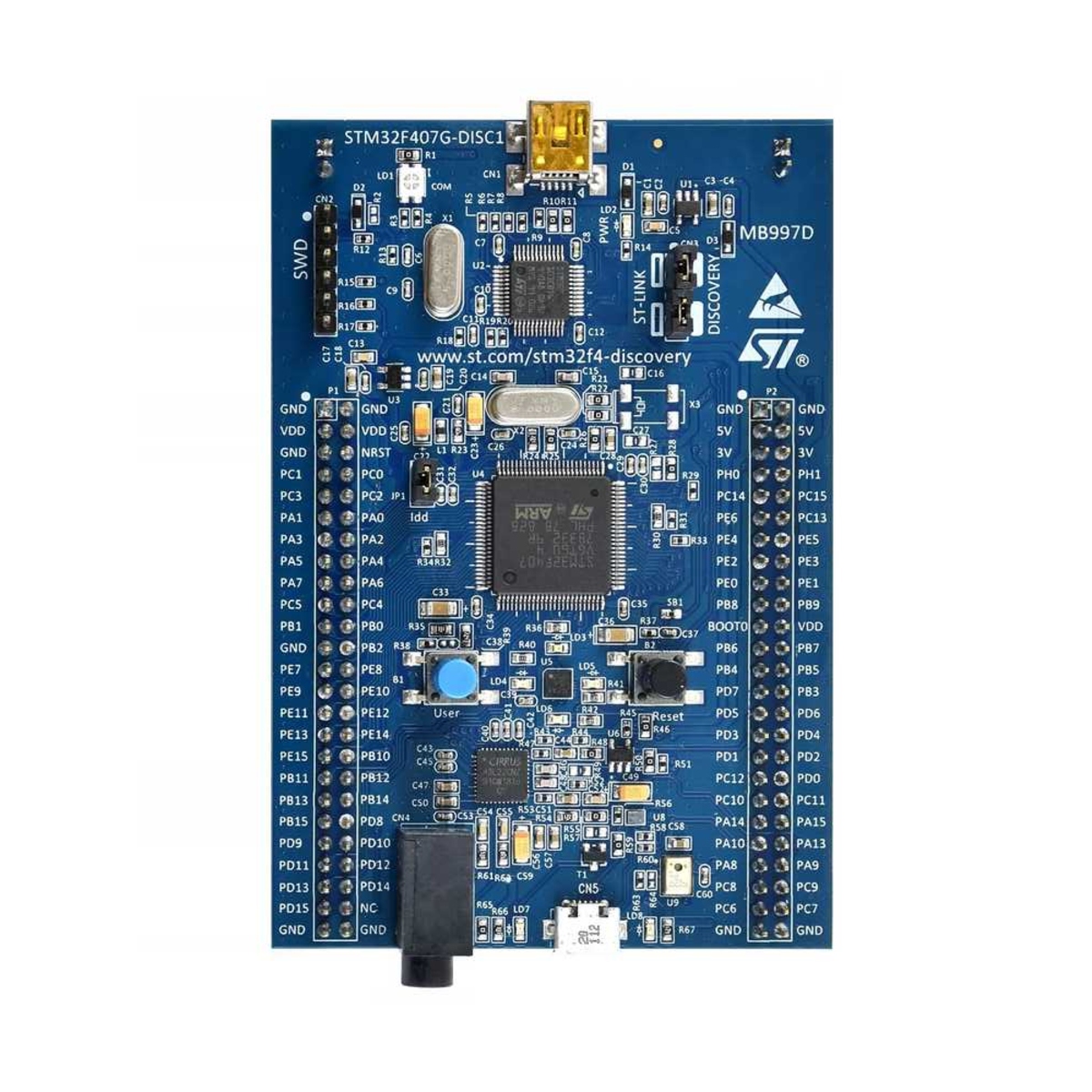

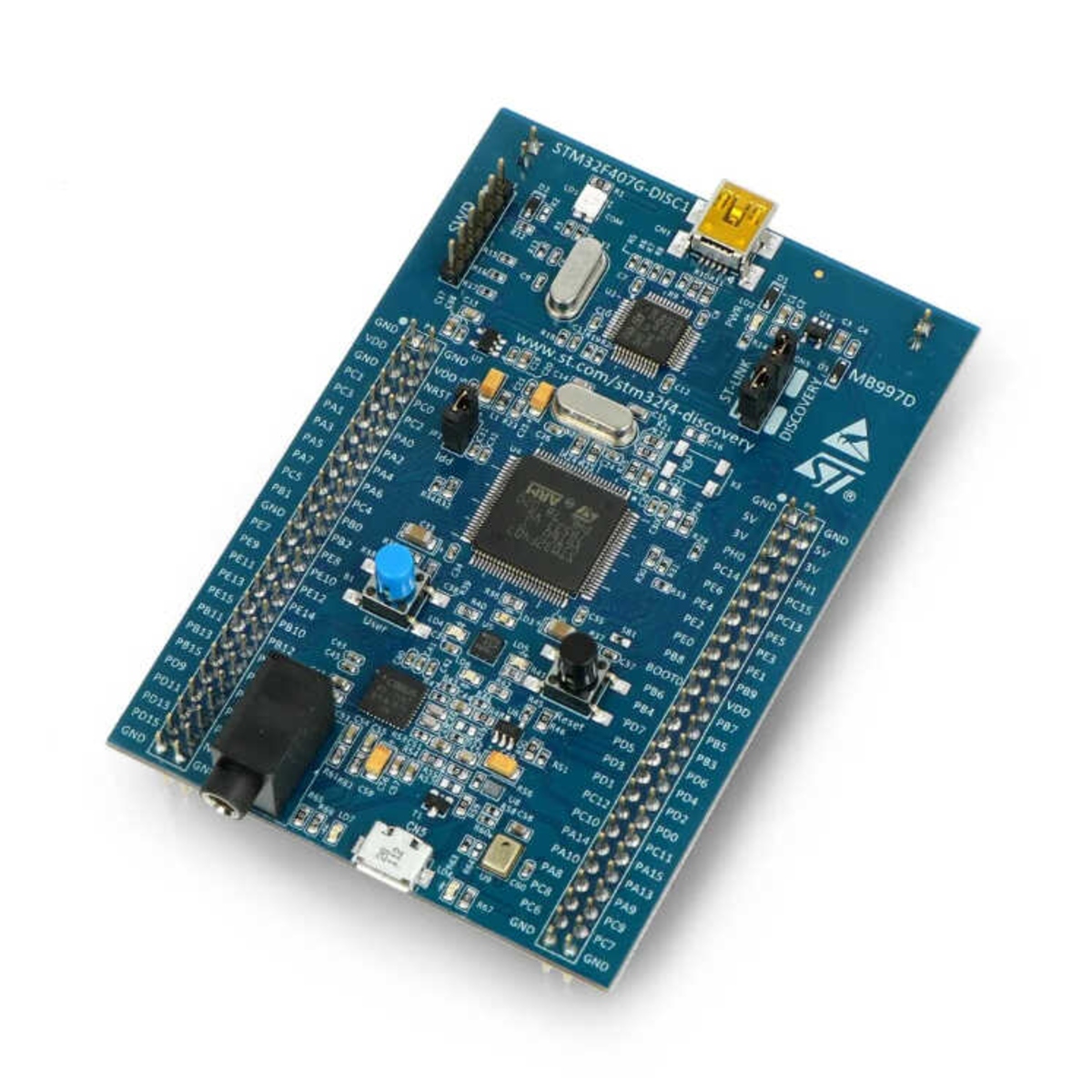

STM32F407G-DISC1 Discovery Development Board (STM32F407VGT6 ARM Cortex-M4, ST-LINK/V2, 168MHz)
The STM32F407G-DISC1 Discovery Development Board is a powerful evaluation and prototyping platform based on the STM32F407VGT6 ARM Cortex-M4 microcontroller. Designed by STMicroelectronics, it combines a high-performance 32-bit MCU with an onboard ST-LINK/V2 debugger/programmer and a rich collection of peripherals, making it ideal for embedded development, motor control, digital signal processing, IoT, robotics, and real-time applications. The board includes USB OTG support, motion sensors, audio interfaces, user LEDs, push buttons, and expansion headers for rapid application development using STM32CubeIDE, STM32CubeMX, Keil MDK, IAR Embedded Workbench, PlatformIO, and GCC toolchains.
Key Features -
• Based on STM32F407VGT6 ARM Cortex-M4 microcontroller
• 32-bit CPU running up to 168MHz
• Integrated ST-LINK/V2 debugger and programmer
• 1MB Flash memory and 192KB SRAM
• USB OTG Full-Speed interface
• Onboard 3-axis digital accelerometer
• Integrated audio codec and MEMS microphone
• User LEDs and push buttons
• Arduino-compatible and ST extension headers
• Compatible with STM32CubeIDE, Keil, IAR and PlatformIO
Specifications -
• Product type - ARM Microcontroller Development Board
• Board model - STM32F407G-DISC1 Discovery
• Microcontroller - STM32F407VGT6
• Core - 32-bit ARM Cortex-M4 with FPU
• CPU frequency - Up to 168MHz
• Flash memory - 1MB
• SRAM - 192KB
• Operating voltage - 3.3V Logic
• Debugger/programmer - Onboard ST-LINK/V2
• USB interface - USB OTG Full-Speed
• Audio interface - Audio Codec and MEMS Microphone
• Motion sensor - 3-Axis Accelerometer
• Expansion interfaces - GPIO, UART, SPI, I2C, CAN, USB, ADC, DAC, PWM
• Power supply - USB or External Power Source
Applications -
• Embedded system development
• Industrial automation
• Robotics
• Motor control
• Digital signal processing
• IoT development
• Audio processing
• Sensor fusion
• Real-time control systems
• Educational and research projects
