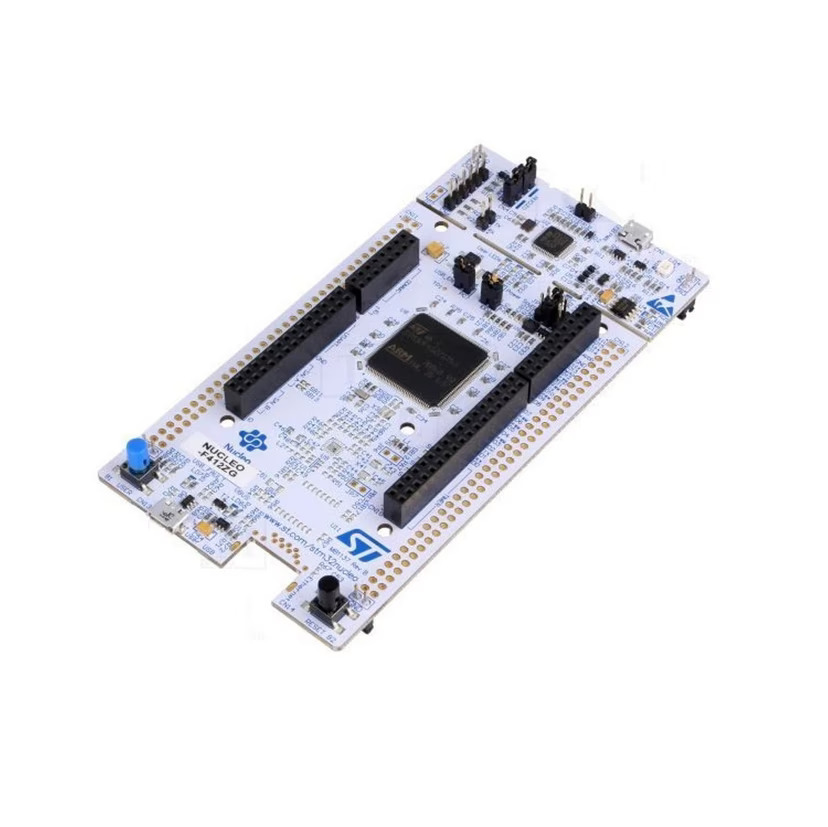

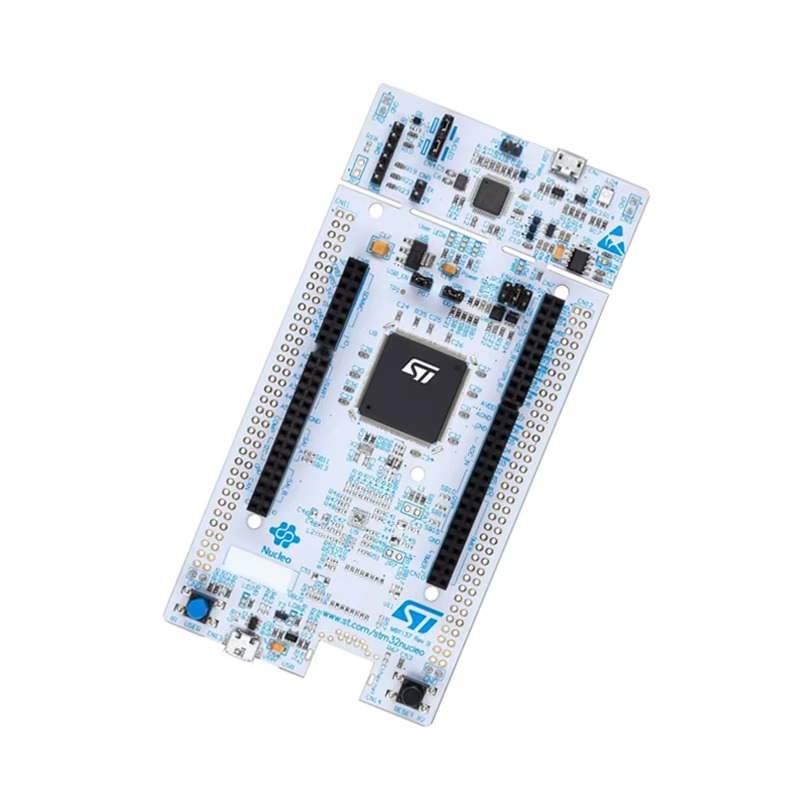

STM32F446ZET6 Nucleo-144 32bit ARM Cortex-M4F Development Board
The STM32F446ZET6 Nucleo-144 development board is designed to provide an affordable and flexible platform for developing applications based on the STM32F446 microcontroller. It features the ARM Cortex-M4F core with floating point unit and offers high performance processing suitable for embedded control, signal processing and real time applications.
The board includes ST LINK on board debugger and programmer which enables easy programming and debugging through USB. It supports expansion through Arduino UNO V3 connectors and ST Morpho headers allowing integration with a wide range of sensors, modules and shields for rapid prototyping and development.
Key Features
- Based on STM32F446ZET6 ARM Cortex-M4F microcontroller
- 32bit high performance embedded processing
- Integrated ST LINK debugger and programmer
- Supports Arduino UNO V3 connectivity
- ST Morpho headers for full microcontroller access
- On board USB interface for programming and power
- Suitable for embedded systems control and IoT development
Specifications
- Microcontroller = STM32F446ZET6
- Core Architecture = ARM Cortex M4F
- Data Width = 32bit
- Flash Memory = 512KB
- SRAM = 128KB
- Operating Voltage = 3.3V
- Development Board Type = Nucleo 144
- Debug Interface = ST LINK on board
- Connectivity = Arduino UNO V3 compatible headers
Interfaces
- USB Connector = Power programming and debugging
- Arduino UNO V3 Headers = Shield connectivity
- ST Morpho Headers = Full GPIO access
- SWD Interface = Debug and programming
- GPIO Pins = Digital input output connections
- I2C Interface = Sensor communication
- SPI Interface = High speed peripheral communication
- UART Interface = Serial communication
