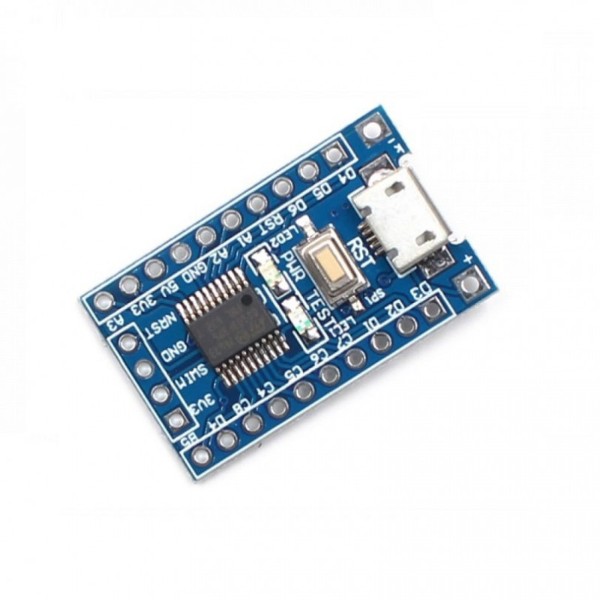

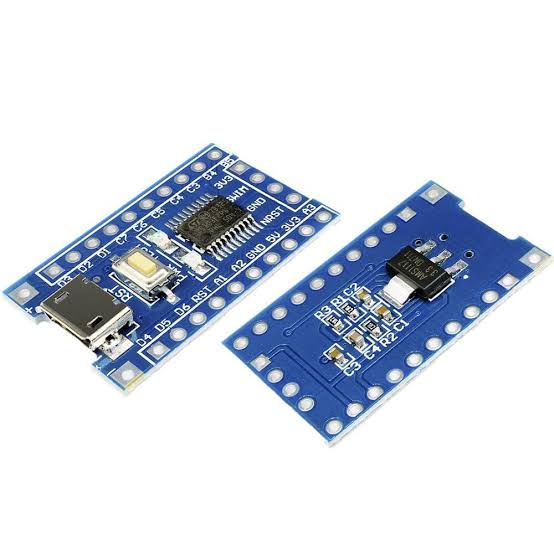

STM8S Development Board STM8S103F3P6
The STM8S Development Board STM8S103F3P6 is a microcontroller learning and prototyping board based on the STM8S103F3P6 MCU. It provides easy access to GPIOs and common interfaces along with a built-in programmer/debugger connection, making it suitable for embedded development, control system design, and learning the STM8 architecture.
This development board is ideal for hobbyists, students, and engineers working on automation, sensor interfacing, motor control, and general microcontroller projects. It supports popular development tools and libraries for rapid prototyping and application testing.
KEY FEATURES
- Based on STM8S103F3P6 8-bit MCU
- Multiple GPIO access pins
- Built-in programming/debug interface support
- Compact PCB board design
- Supports common communication protocols
- Easy prototyping and testing
- Suitable for beginners and embedded developers
- Works with standard STM8 development tools
SPECIFICATIONS
- MCU = STM8S103F3P6 8-bit microcontroller
- Core = STM8 8-bit performance
- Flash Memory = 8 KB
- SRAM = 1 KB
- Operating Voltage = 5V DC typical
- GPIO Pins = Multiple digital IO
- Communication = Supports UART I2C SPI via pins
- Clock Speed = Standard internal oscillator
- Mounting Type = PCB development board
INTERFACES
- VCC = Power supply positive
- GND = Ground
- PA0-PA7 = GPIO and analog inputs
- PB0-PB5 = GPIO and alternate functions
- UART TX RX = Serial communication pins
- I2C SDA SCL = I2C bus pins
- SPI SCK MISO MOSI = SPI interface pins
- SWIM = Debug/programming interface
