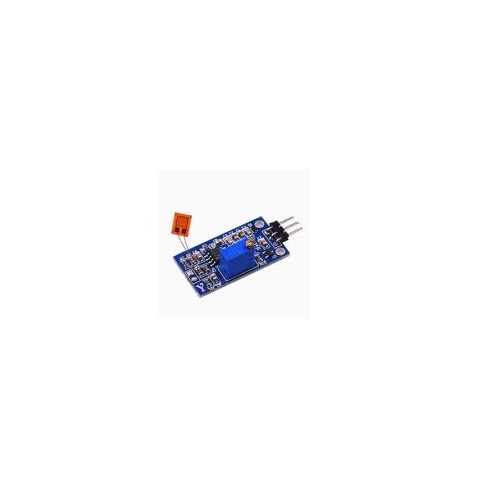

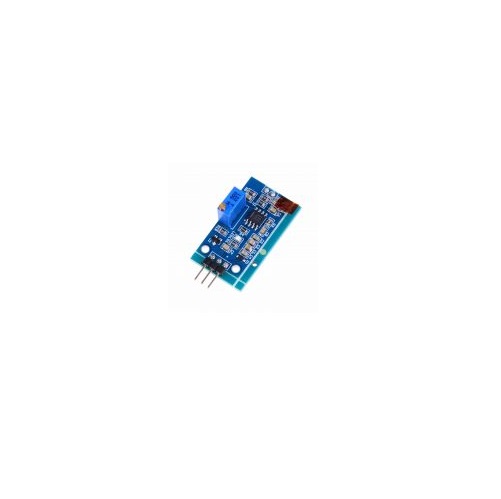

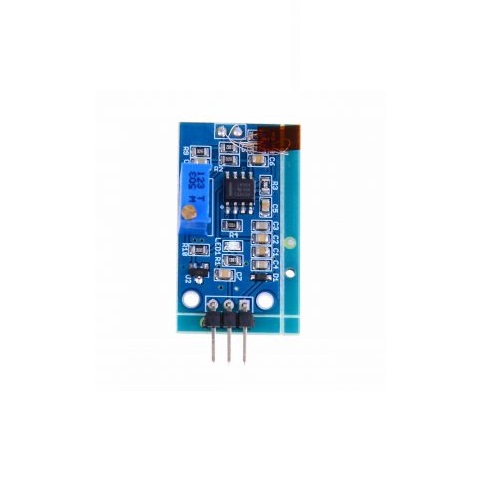

Strain Gauge Bending Sensor Module (Flex and Deformation Detection)

The Strain Gauge Bending Sensor Module is a compact sensing module designed to detect mechanical bending, strain, and deformation. It uses a strain gauge sensing element to detect changes in resistance caused by mechanical stress, allowing the resulting electrical signal to be measured by a suitable signal conditioning circuit or analog-to-digital converter.

The module is suitable for experimental measurement, material testing, robotics, force sensing, structural monitoring, and educational electronics projects. It can be interfaced with microcontrollers and measurement systems for detecting changes in mechanical deformation.

KEY FEATURES -

• Strain gauge based bending and deformation detection

• Detects mechanical stress and strain changes

• Analog signal suitable for measurement circuits

• Compact PCB design

• Suitable for microcontroller and ADC interfacing

• Useful for experimental and educational applications

• Suitable for robotics and mechanical testing projects

SPECIFICATIONS -

• Sensor Type = Strain gauge

• Detection Type = Bending, strain and mechanical deformation

• Output Type = Analog electrical signal

• Sensitivity = Depends on connected strain gauge and signal conditioning circuit

• Interface Type = Analog

• Operating Voltage = 3.3 - 5V DC typical

• Operating Temperature = -20 to 70 C

• Module Size = Approx. 40 x 30mm

APPLICATIONS -

• Bending detection systems

• Mechanical deformation measurement

• Material testing

• Robotics and automation

• Structural monitoring experiments

• Load and force measurement projects

• Educational strain measurement systems

• Microcontroller based sensing projects
