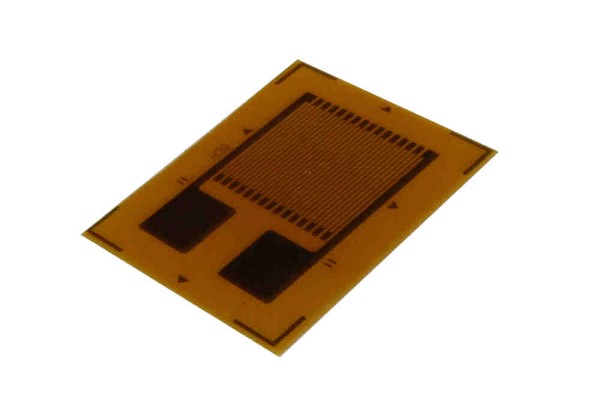

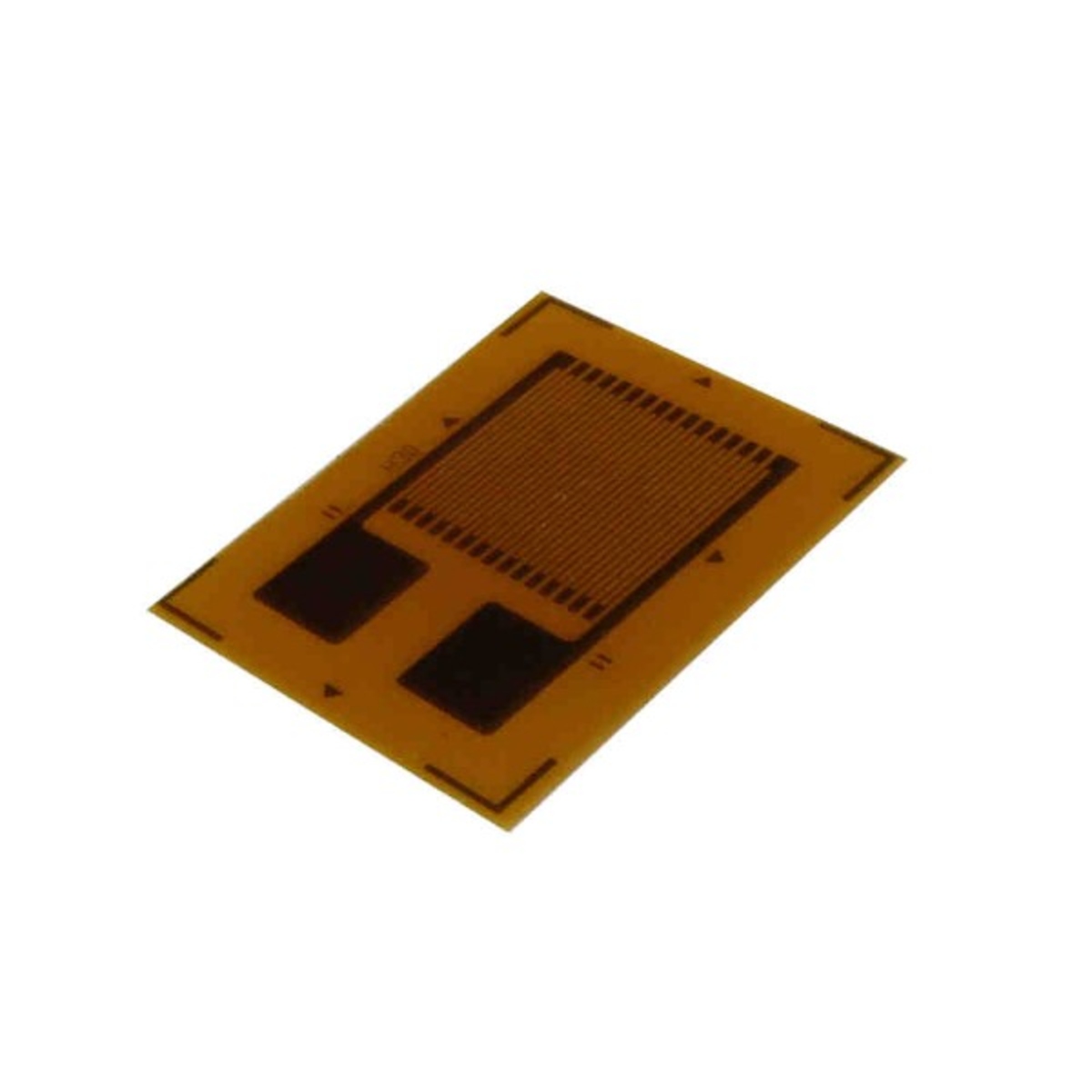

32 Ohm Foil Strain Gauge Sensor (Resistance Strain Gauge)

The 32 Ohm Foil Strain Gauge Sensor is a resistive sensing element designed to measure mechanical strain in materials and structures. When the gauge is stretched or compressed, its electrical resistance changes. This change can be measured using a suitable bridge circuit and signal conditioning electronics to determine the strain applied to the test surface.

With a nominal resistance of 32 Ohm, this strain gauge is suitable for experimental measurement setups, material testing and mechanical engineering projects. It requires appropriate bonding, electrical connections and signal conditioning for reliable measurements.

Key Features -

• Nominal resistance of 32 Ohm

• Foil type resistive sensing element

• Detects mechanical strain through resistance changes

• Suitable for Wheatstone bridge measurement circuits

• Compact sensing element for surface bonding

• Compatible with suitable strain measurement electronics

Specifications -

• Sensor Type: Foil resistance strain gauge

• Nominal Resistance: 32 Ohm

• Gauge Factor: Approximately 2.0, as specified

• Output Type: Resistance change proportional to strain

• Operating Mode: Bridge measurement configuration

• Sensing Element: Metal foil

• Mounting Type: Adhesive bonding to a prepared surface

• Dimensions, resistance tolerance, operating temperature and strain limits: Refer to the supplier datasheet for exact specifications

Applications -

• Load measurement experiments

• Structural strain and stress analysis

• Force measurement prototypes

• Mechanical material testing

• Industrial measurement systems

• Engineering laboratory projects

• Embedded strain measurement systems
