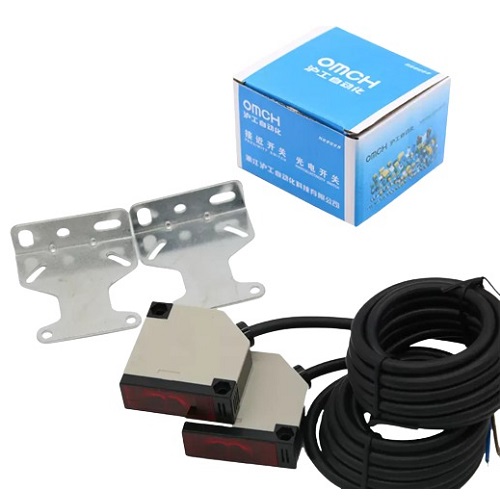

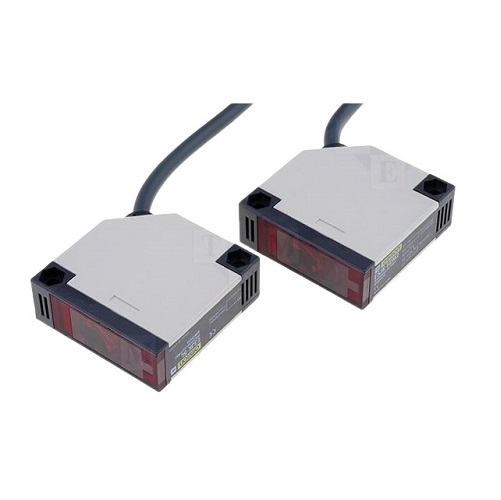

Switch Infrared Beam Photoelectric Sensor Photocell E3JK-5DM1 DC12-24V Detecting Distance 5M

The E3JK-5DM1 Infrared Beam Photoelectric Sensor is a precision sensing module designed to detect objects using an infrared light beam. Operating at DC 12-24V, it can reliably detect objects up to 5 meters away, providing a digital output for automation and safety applications.

This sensor is suitable for industrial automation, object detection, conveyor systems, robotics, and embedded electronics requiring non-contact sensing. Its compact design and stable detection performance make it ideal for precise monitoring in various environments.

KEY FEATURES

• Infrared beam photoelectric detection
• Operating voltage DC 12-24V
• Detecting distance up to 5 meters
• Digital output signal for easy interfacing
• Compact and robust design
• Fast response time
• Suitable for industrial and embedded applications

SPECIFICATIONS

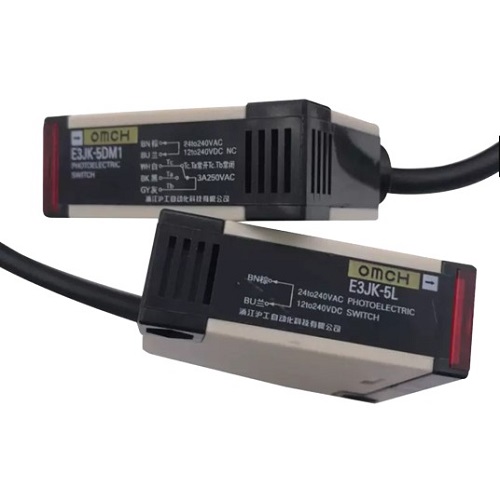

• Model = E3JK-5DM1
• Operating Voltage = DC 12-24V
• Detection Distance = 5 meters
• Output Type = NPN / PNP digital output (depends on version)
• Response Time = <1 ms typical
• Current Consumption = <20mA typical
• Operating Temperature = -25 to 55°C
• Protection Rating = IP65 (typical)

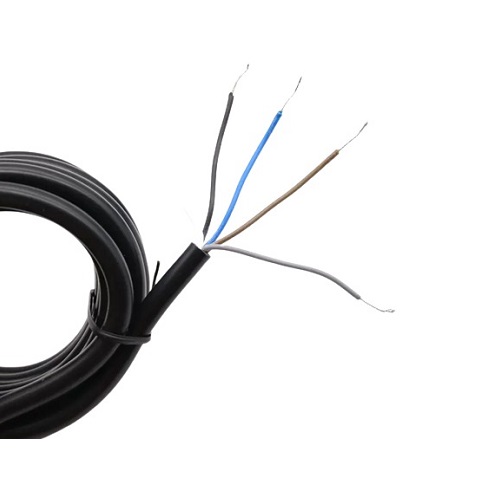

INTERFACES

• VCC = DC 12-24V power input
• GND = Ground
• OUT = Digital detection output

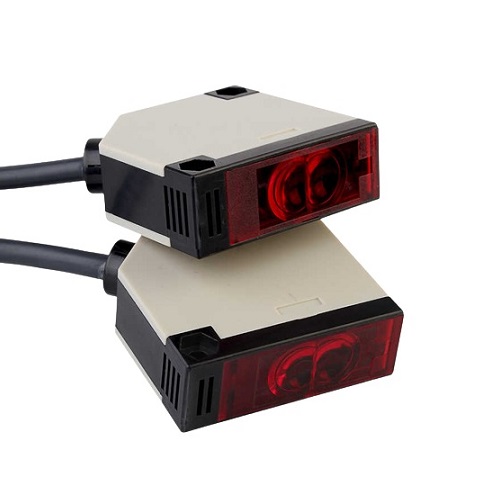

• LENS = Infrared emission and reception
