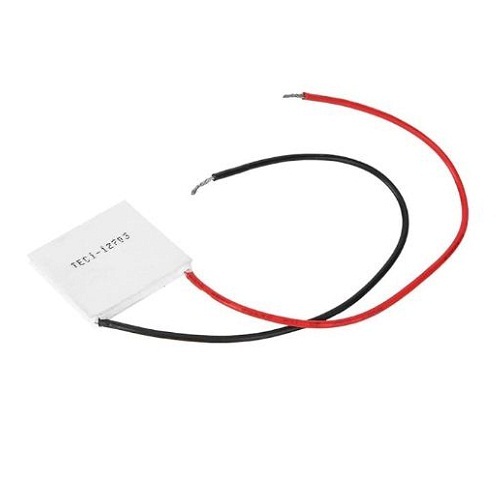

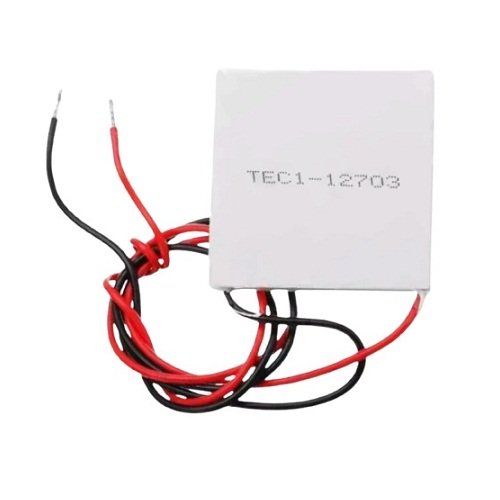

TEC1-12703 12V 30W Thermoelectric Peltier Cooler Module (40 × 40mm Thermoelectric Cooling Plate)

The TEC1-12703 Thermoelectric Peltier Cooler Module is a compact solid-state cooling device that operates on the Peltier effect to create a temperature difference between its two surfaces. Operating at 12V DC with a maximum cooling power of 30W, it is ideal for portable cooling systems, electronic equipment cooling, laboratory projects, beverage coolers, and temperature control applications. With no moving parts, it offers quiet, reliable, and maintenance-free operation.

Key Features -

• Thermoelectric Peltier cooling module

• Operates on 12V DC power supply

• Maximum cooling power of 30W

• Compact 40 × 40mm design

• Solid-state construction with no moving parts

• Quiet and vibration-free operation

• Temperature differential up to 67°C

• Reversible heating and cooling operation by changing polarity

• Lightweight and compact design

• Suitable for continuous operation

Specifications -

• Product Type - Thermoelectric Peltier Cooler Module

• Model - TEC1-12703

• Operating Voltage - 12V DC

• Maximum Voltage (Vmax) - 15.4V DC

• Maximum Current (Imax) - 3A

• Maximum Cooling Power - 30W

• Maximum Temperature Differential (ΔTmax) - Up to 67°C

• Operating Temperature Range - -30°C to 80°C

• Dimensions - 40mm × 40mm × 3.8mm

Applications -

• Electronic component cooling

• Mini refrigerators

• Portable coolers

• Water cooling systems

• Scientific instruments

• Laboratory experiments

• Temperature control systems

• Medical equipment

• DIY cooling projects

• Semiconductor cooling applications
