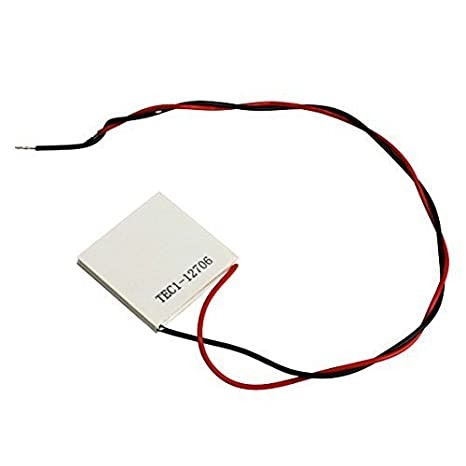

TEC1-12706 Peltier Cooler Heater 40×40mm 6A – White

The TEC1-12706 Peltier Cooler Heater is a compact thermoelectric module designed for both cooling and heating applications. It uses the Peltier effect to transfer heat from one side of the module to the other when DC power is applied. Reversing the polarity reverses the direction of heat transfer, allowing the module to function as either a cooler or heater.

With a 40 × 40mm form factor, 12V operating voltage, and up to 6A current capability, the TEC1-12706 is suitable for DIY cooling systems, electronics projects, temperature control applications, and educational experiments.

Key Features -

• TEC1-12706 thermoelectric Peltier module

• Cooling and heating operation

• 40 × 40mm compact size

• 12V nominal operating voltage

• Up to 6A maximum current

• Maximum power rating up to 92W

• Polarity reversible for heating or cooling

• Ceramic plate construction

• 200mm power cable

• Suitable for temperature control applications

Specifications -

• Product Type = Thermoelectric Peltier Cooler Heater

• Model Number = TEC1-12706

• Module Size = 40 × 40mm

• Operating Voltage = 12V

• Maximum Voltage (Umax) = 15.4V

• Maximum Current (Imax) = 6A

• Maximum Power = 92W

• Maximum Temperature = 138°C

• Power Cord Length = 200mm

• Operation = Cooling and Heating

• Module Type = Thermoelectric / Peltier Module

Applications -

• Electronics cooling

• Mini refrigerator projects

• CPU and component cooling experiments

• Temperature control systems

• DIY cooling and heating systems

• Food and beverage cooling experiments

• Laser and optical equipment cooling

• Scientific and educational experiments

• Thermoelectric energy experiments

• Embedded temperature control projects
