Description

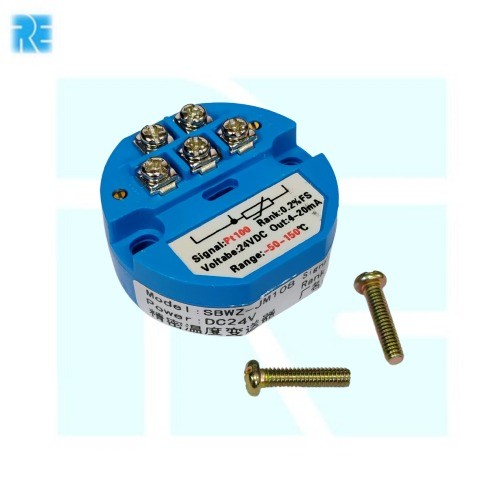

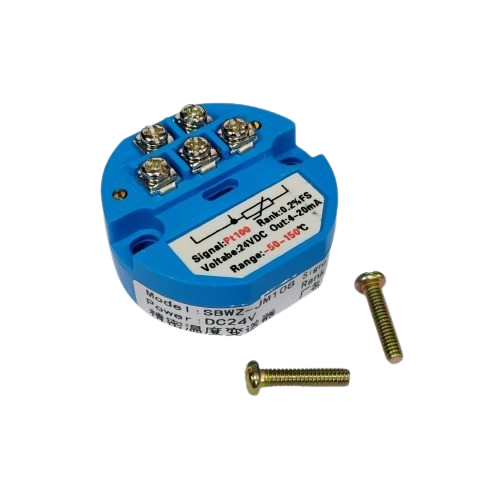

Temperature Transmitter – 50 to 150 degree PT100 RTD to 4-20mA
E-922
Signal input: 2-wire RTD, 3-wire RTD
Output :2-wire 4-20mA current, current limit: min.3.8mA, max 20.3mA
Power supply:24VDC
Measuring Accuracy: 0.5% TC input, 0.2% RTD input.
Temperature Drift: ≤25ppm/℃ F.S.
Protection circuit: Reverse polarity connection protection
Operating temperature: -30-+80℃
Storage temperature: -40-+120℃
Material PA66
Installation: M4x2 screw, standard head-mounted
Range – 50 to 150 degree
Additional Information
| Weight | 19.68 g |
|---|
