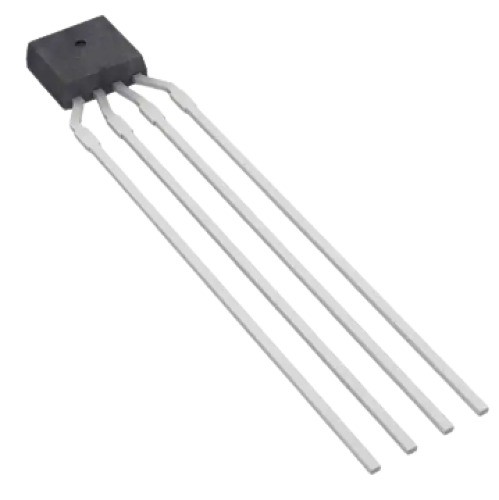

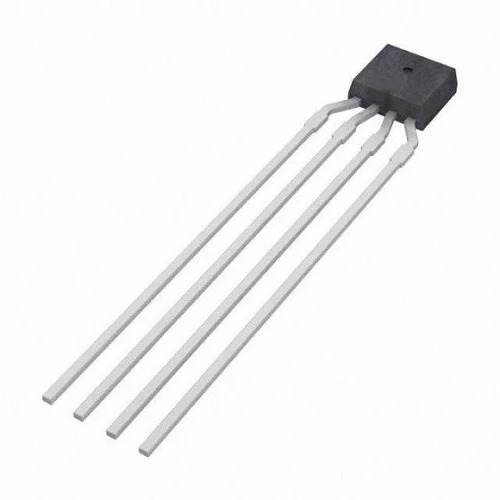

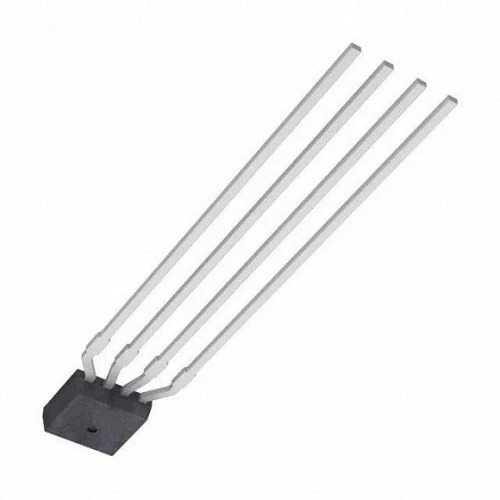

THS119 HG302C Hall Effect Magnetic Sensor IC (THS119 Hall Sensor)
The THS119 HG302C Hall Effect Magnetic Sensor IC is a solid state magnetic sensing device designed to detect the presence and variation of magnetic fields using the Hall effect principle. It generates an electrical output proportional to the magnetic field, enabling reliable switching or sensing in electronic circuits. Hall sensors operate by producing a voltage when exposed to a magnetic field perpendicular to current flow, making them suitable for contactless detection applications.
The THS119 HG302C sensor is widely used in India for embedded systems, motor control, position sensing, and industrial electronics. It is valued for its contactless operation, long life, and consistent performance in applications such as speed detection, proximity sensing, and automation systems.
Key Features
- Hall Effect Magnetic Sensor: Detects magnetic field presence
- Solid State Design: No mechanical wear and long life
- Fast Response Time: Suitable for high speed sensing
- Stable Output Signal: Reliable switching performance
- Compact Package: Easy PCB integration
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Hall effect magnetic sensor
- Function: Magnetic field detection and switching
- Output Type: Digital or analog depending on configuration
- Operating Voltage: Standard operating range
- Response Time: Fast switching response
- Temperature Stability: Reliable operation over wide range
- Mounting Type: Through hole package
- Applications: Position sensing speed detection motor control embedded systems industrial electronics
Pinout Configuration Sensor Layout
- VCC supply pin
- GND ground pin
- Output signal pin
