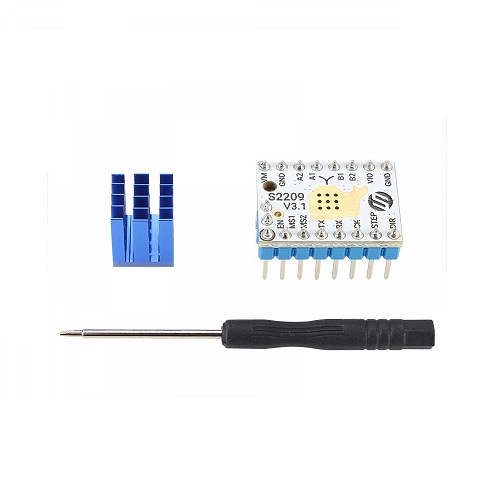

TMC2209 Stepper Motor Driver Module with Heatsink
The TMC2209 Stepper Motor Driver Module is a high performance stepper motor driver designed for silent and precise motor control in motion systems. It is based on the TMC2209 driver IC which uses advanced StealthChop and SpreadCycle technology to provide smooth and quiet motor operation with improved efficiency.
This module is widely used in 3D printers, CNC machines, robotics, and automation systems. It supports microstepping control and UART configuration for advanced tuning and diagnostics. The included heatsink helps improve thermal performance during high current operation and ensures stable motor control in continuous applications.
Key Features
- TMC2209 high performance stepper motor driver IC
- Ultra silent operation using StealthChop technology
- SpreadCycle mode for improved motor control
- Supports UART configuration and diagnostics
- High microstepping resolution for smooth motion
- Suitable for 3D printers CNC machines and robotics
- Includes heatsink for improved heat dissipation
- Compatible with Arduino/ESP32/Raspberry Pi motion control systems
Specifications
- Driver IC = TMC2209
- Motor Type = Bipolar stepper motor
- Operating Voltage = 4.75V to 29V
- Logic Voltage = 3.3V to 5V
- Peak Motor Current = Up to 2.8A
- RMS Motor Current = Up to 2A
- Microstepping = Up to 256 microsteps interpolation
- Control Interface = Step and direction with UART configuration
- Protection = Over temperature and short circuit protection
Interfaces
- VM = Motor power supply
- GND = Ground
- VIO = Logic power input
- STEP = Step pulse input
- DIR = Direction control input
- EN = Driver enable input
- TX = UART transmit
- RX = UART receive
- MS1 = Microstep configuration
- MS2 = Microstep configuration
