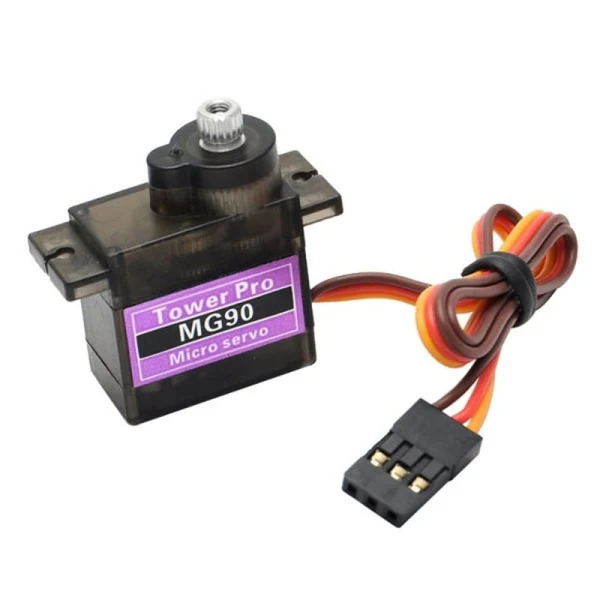

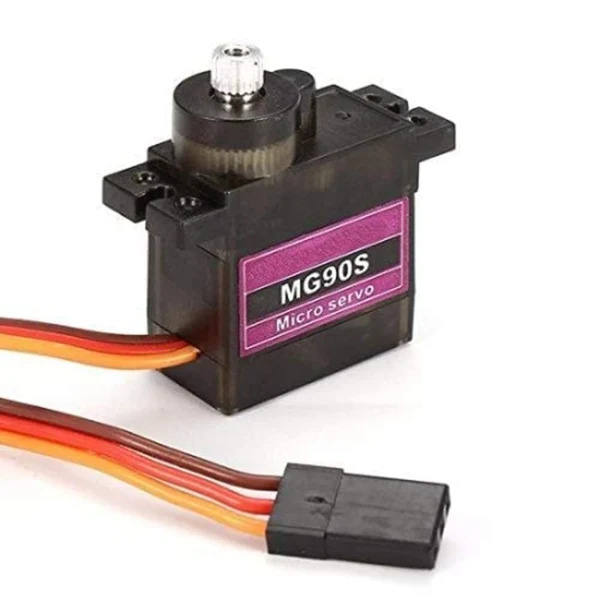

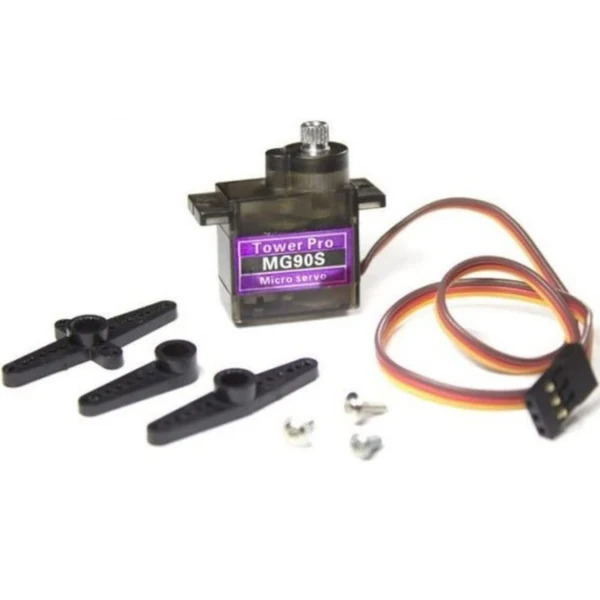

Tower Pro MG90S Metal Gear Micro Servo Motor 180 Degree (4.8V-6V)

The Tower Pro MG90S Servo Motor is a compact micro servo featuring a metal gear mechanism for improved durability and mechanical strength. It provides precise angular positioning through PWM control and is suitable for robotics, RC models, automation mechanisms, and embedded motion control applications.

Its small and lightweight design makes it suitable for applications where compact size and reliable positioning are required. It can be controlled using Arduino, ESP32, Raspberry Pi, and other microcontroller based systems with suitable PWM output.

Key Features -

• Tower Pro MG90S metal gear micro servo

• Metal gear mechanism for improved durability

• PWM controlled angular positioning

• Rotation range up to 180 degree

• Compact and lightweight construction

• High torque for its small size

• Suitable for robotics and RC applications

• Compatible with Arduino, ESP32, Raspberry Pi and other PWM controllers

Specifications -

• Model = MG90S

• Servo Type = Metal gear micro servo

• Operating Voltage = 4.8V to 6V DC

• Stall Torque = 1.8kg cm at 4.8V

• Stall Torque = 2.2kg cm at 6V

• Operating Speed = 0.10 sec/60 degree at 4.8V

• Operating Speed = 0.08 sec/60 degree at 6V

• Rotation Range = 0 to 180 degree

• Control Method = PWM

• Gear Material = Metal

• Weight = 13.4g

• Dimensions = 22.8mm x 12.2mm x 28.5mm

Applications -

• Robotic arms and mechanisms

• RC cars and aircraft

• Robotics projects

• Arduino projects

• ESP32 based motion control

• Camera and sensor positioning

• Small automation mechanisms

• Educational electronics projects
