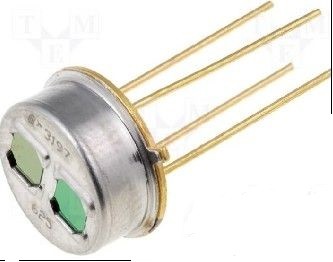

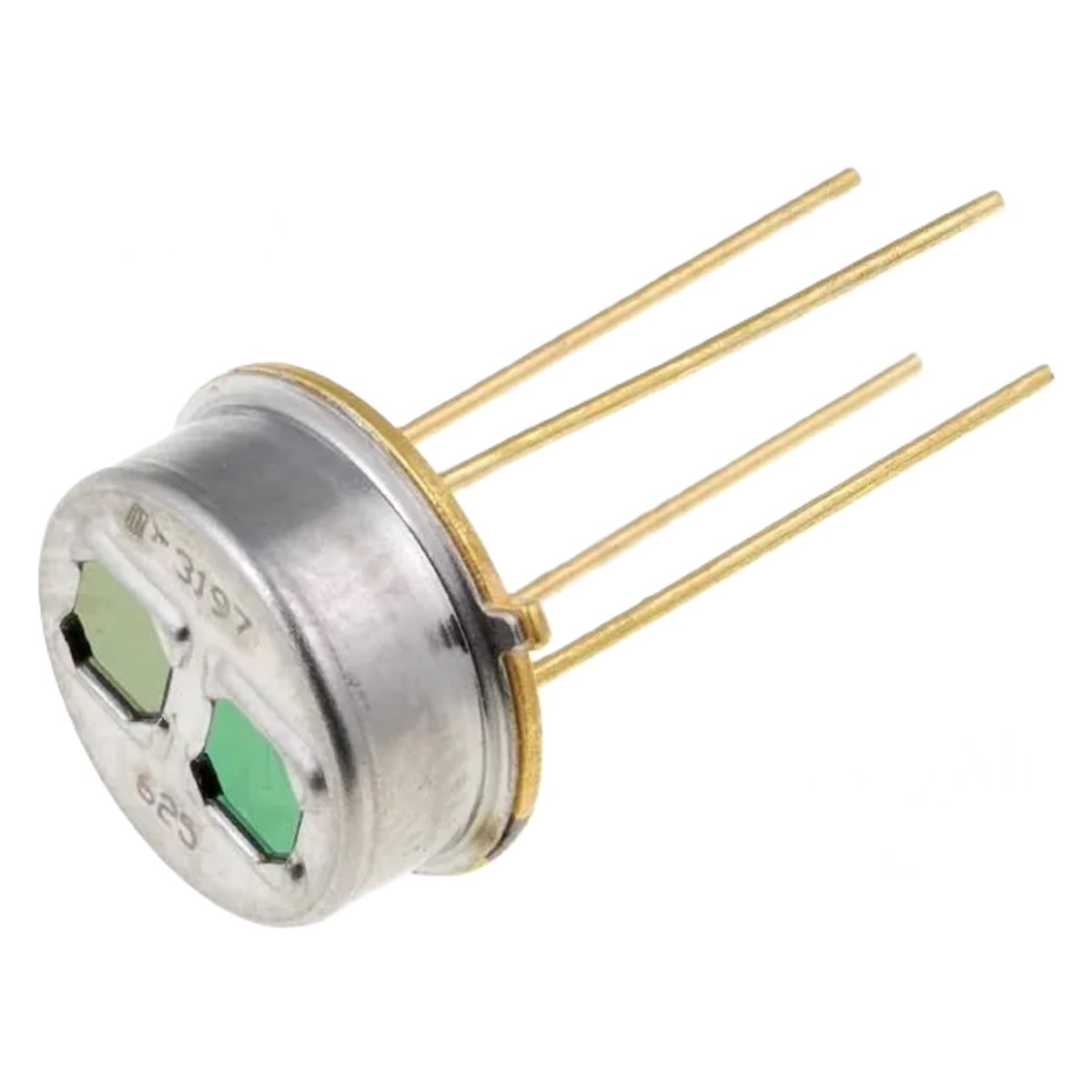

TPS2534 Dual Thermopile Sensor IC (TPS2534 Infrared Sensor)
The TPS2534 Dual Thermopile Sensor IC is a high sensitivity infrared sensing device designed for detecting thermal radiation and gas concentration using non contact measurement. It integrates two thermopile sensing elements within a single package, enabling differential measurement with a reference channel for improved accuracy. The sensor converts incident infrared radiation into a proportional voltage output using the thermoelectric effect, ensuring stable and precise detection.
The TPS2534 sensor is widely used in India for gas detection systems, NDIR gas analyzers, industrial electronics, and embedded systems. It is especially valued for its dual channel design, which allows one channel for measurement and another for reference, improving reliability and reducing environmental interference in applications such as CO2 sensing and environmental monitoring.
Key Features
- Dual Thermopile Sensor: Two sensing elements for differential measurement
- Infrared Detection: Converts IR radiation into electrical signal
- Built In Thermistor: Temperature compensation for accuracy
- High Sensitivity Output: Reliable low level IR detection
- Stable Performance: Low temperature drift characteristics
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Dual thermopile infrared sensor
- Number of Channels: 2 thermopile elements
- Output Type: Analog voltage output
- Package Type: TO5 metal can package
- Sensing Method: Thermoelectric IR detection
- Temperature Reference: Integrated thermistor
- Operating Temperature: Approx -40 to 100 degree C
- Response Type: Thermal radiation detection
- Mounting Type: Through hole
- Applications: NDIR gas sensing temperature measurement industrial electronics embedded systems environmental monitoring
Pinout Configuration Sensor Layout
- Thermopile output pins for measurement channel
- Thermopile output pins for reference channel
- Thermistor pins for temperature compensation
- VCC supply connection
- GND ground connection
