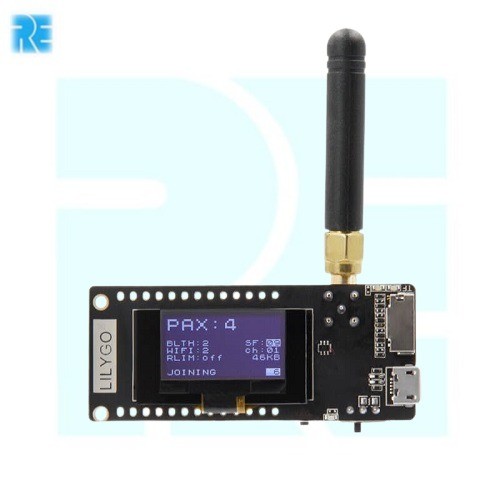

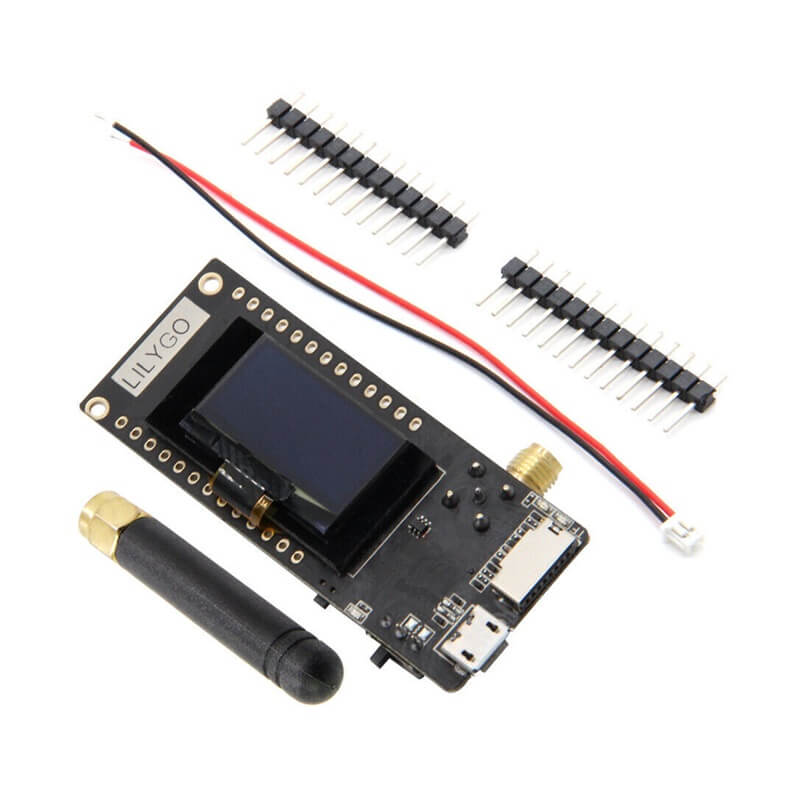

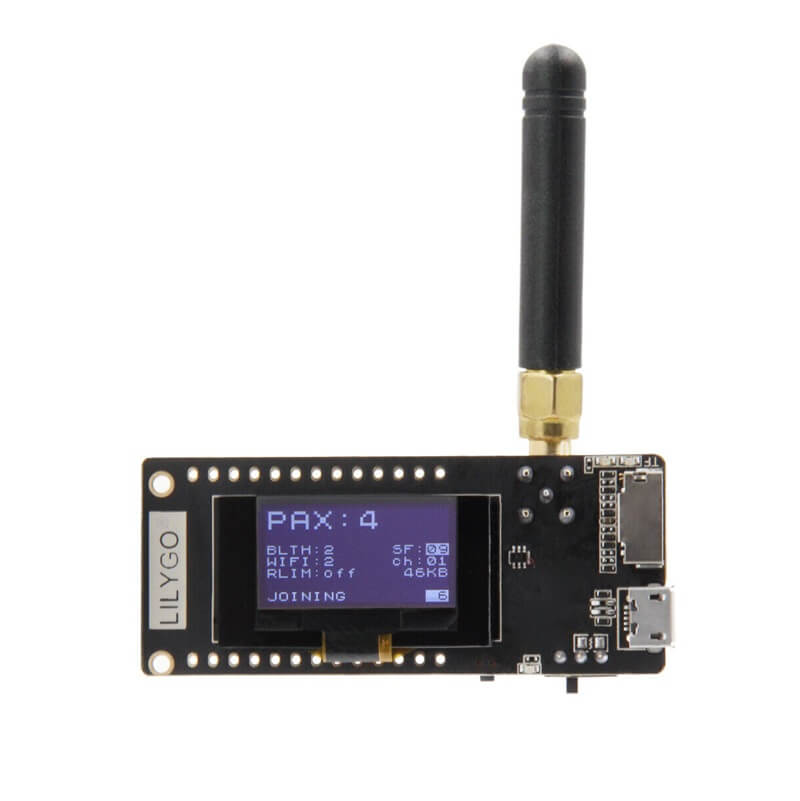

TTGO LoRa32 V1.6.1 ESP32 LoRa OLED Development Board (SX1276 WiFi Bluetooth 433 868 915MHz)
The TTGO LoRa32 V1.6.1 is a wireless IoT development board that combines an ESP32 microcontroller, SX1276 LoRa transceiver, WiFi, Bluetooth, OLED display, and Micro SD card interface in a compact development platform. It is designed for long-range wireless communication, sensor networks, remote monitoring, and IoT applications.
The integrated 0.96 inch OLED display can be used to show sensor readings, communication status, and system information, while the Micro SD card interface provides local data storage for logging applications. The board supports development using Arduino and ESP32 compatible development environments.
Key Features -
• ESP32 microcontroller with WiFi and Bluetooth
• Integrated SX1276 LoRa transceiver
• Supports 433MHz, 868MHz and 915MHz LoRa frequency variants
• 0.96 inch OLED display
• Micro SD card storage interface
• Long-range LoRa wireless communication
• WiFi and Bluetooth connectivity
• Suitable for IoT and remote monitoring systems
• Compatible with Arduino and ESP32 development environments
• Suitable for wireless sensor and data logging applications
Specifications -
• Product Type: LoRa32 Wireless Development Board
• Model: TTGO LoRa32 V1.6.1
• Microcontroller: ESP32
• LoRa Chipset: SX1276
• LoRa Frequency: 433MHz, 868MHz or 915MHz, Depending on Version
• Display Type: OLED
• Display Size: 0.96 Inch
• Wireless Communication: WiFi, Bluetooth and LoRa
• Storage Interface: Micro SD Card Slot
• Operating Voltage: 3.3V DC
• Development Platform: Arduino and ESP32 Compatible
• Application: IoT, LoRa Communication and Wireless Monitoring
Applications -
• LoRa IoT sensor nodes
• Long-range wireless communication
• Remote monitoring systems
• Environmental monitoring
• Wireless sensor networks
• Smart agriculture
• Asset tracking
• Industrial IoT
• Data logging systems
• LoRaWAN development
• PAX counter and wireless counting applications
• Arduino and ESP32 projects
