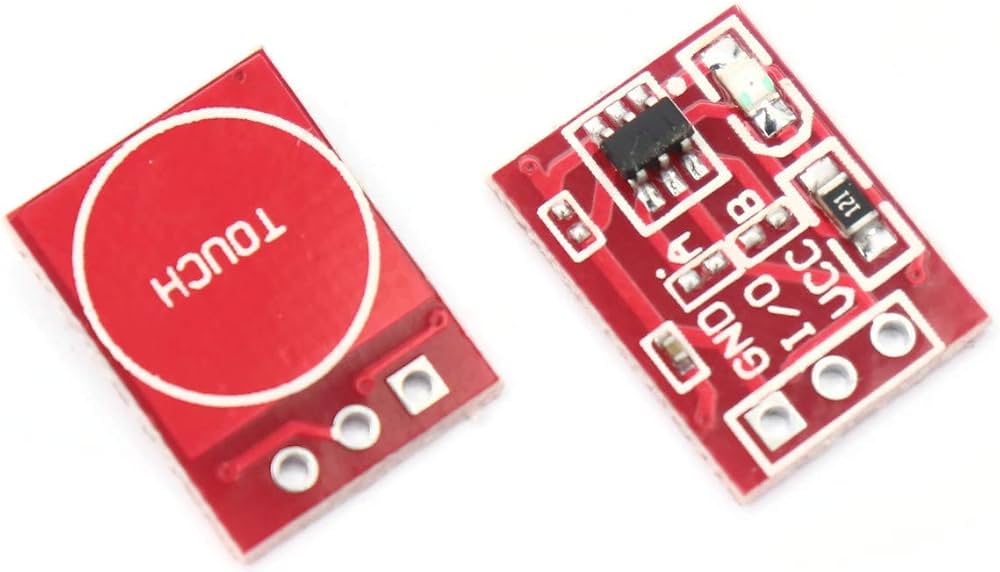

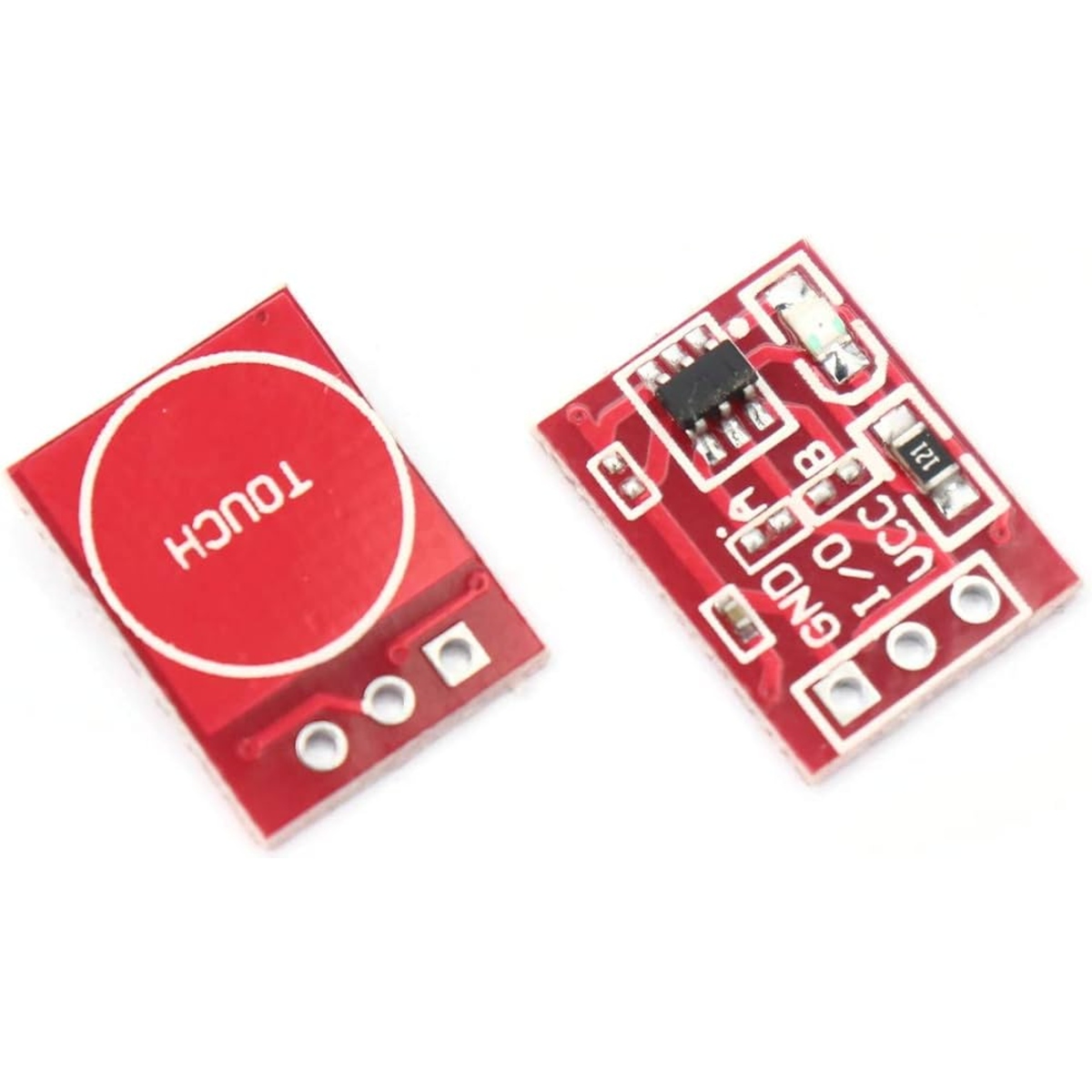

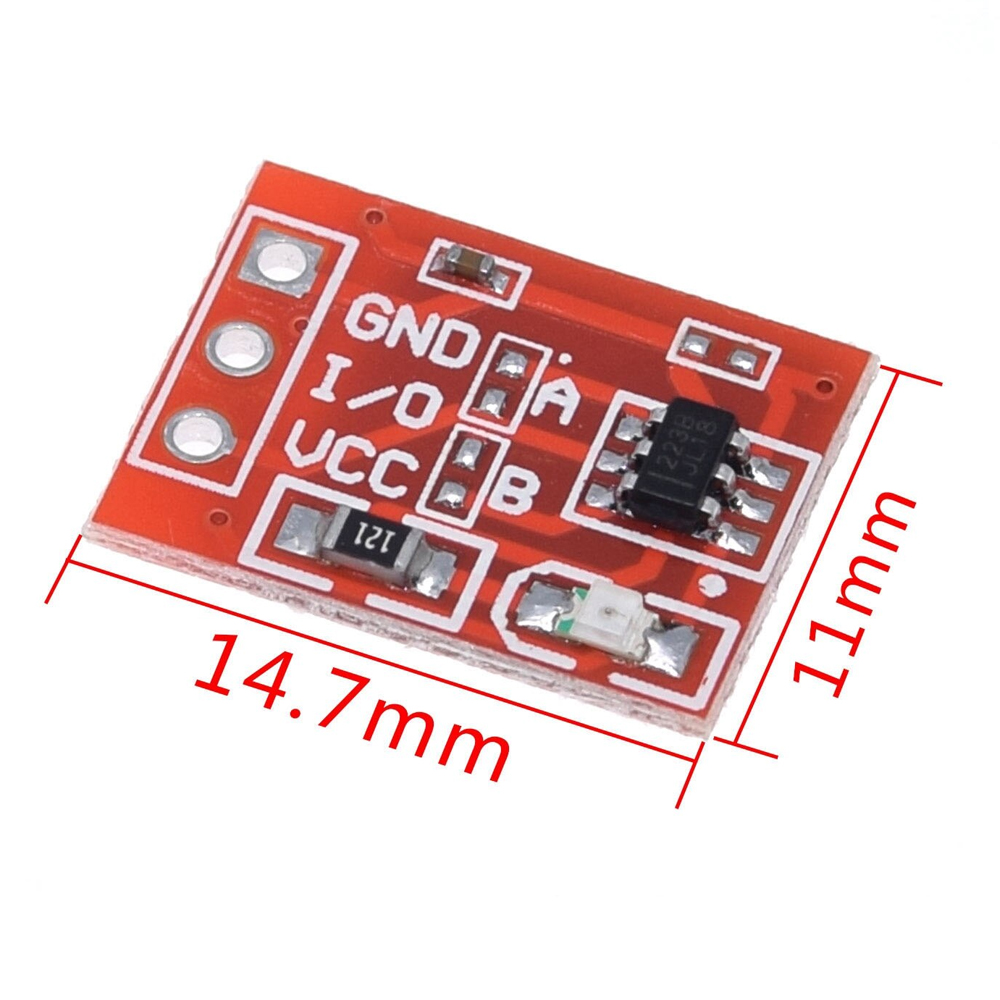

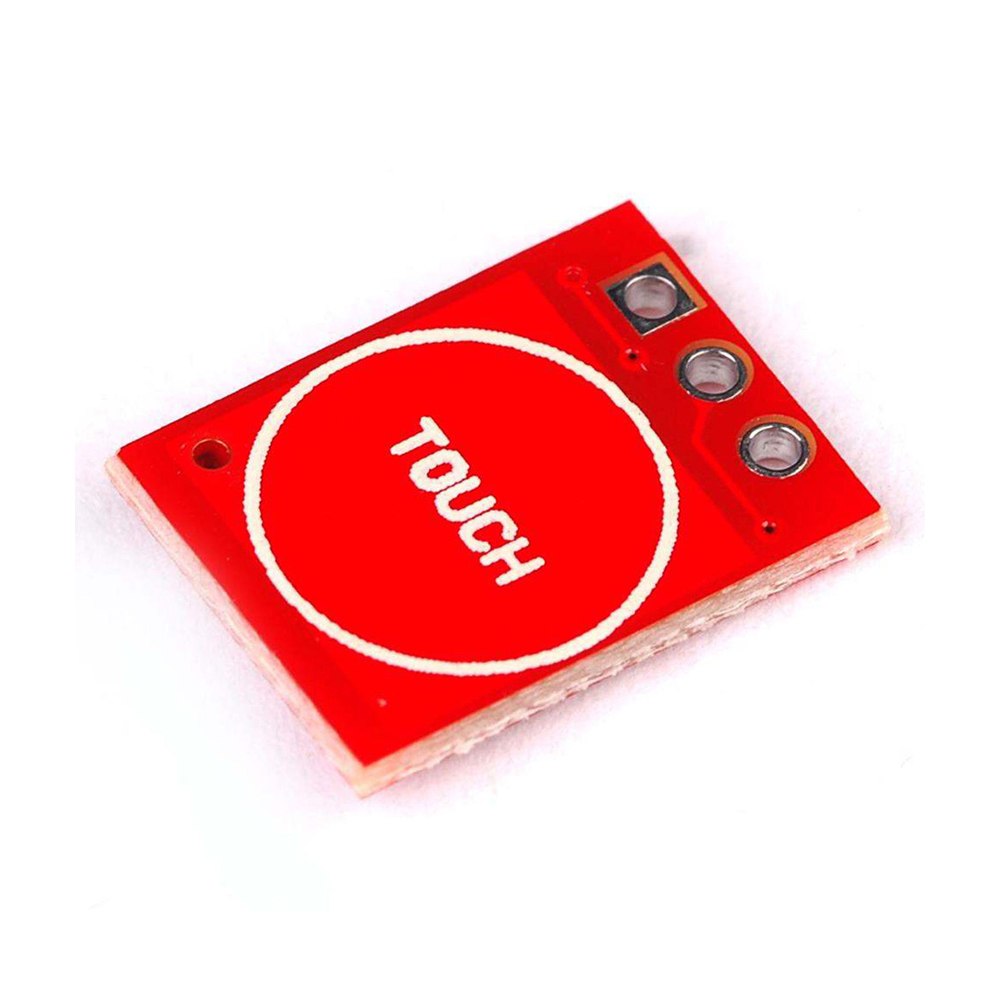

TTP223 Touch Key Module (Capacitive Touch Switch Sensor Module)

The TTP223 Touch Key Module is a compact capacitive touch switch designed to replace conventional mechanical push buttons in electronic circuits. Based on the TTP223 capacitive touch sensor IC, it detects finger touch through capacitive sensing technology and generates a digital output signal without requiring physical button movement. Operating from 2.0V to 5.5V, the module is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other microcontroller platforms. It is ideal for touch control panels, home automation, consumer electronics, smart appliances, and embedded system applications.

Key Features -

• Based on TTP223 capacitive touch sensor IC

• Capacitive touch key detection

• Digital HIGH/LOW output

• Replaces mechanical push buttons

• Fast touch response

• Low power consumption

• Stable and noise-resistant operation

• Compact PCB module

• Compatible with 3.3V and 5V logic systems

• Easy interface with microcontrollers

Specifications -

• Product type - Capacitive Touch Key Module

• Sensor IC - TTP223

• Operating voltage - 2.0V to 5.5V DC

• Output type - Digital

• Logic level - 3.3V / 5V Compatible

• Output mode - Momentary (Default, Configurable)

• Response time - Fast Touch Response

• Operating current - Low Power

• Operating temperature - 0C to 50C

• Mounting type - PCB Module

Applications -

• Touch control panels

• Home automation

• Smart appliances

• Consumer electronics

• Interactive devices

• Robotics

• Embedded systems

• DIY electronics projects
