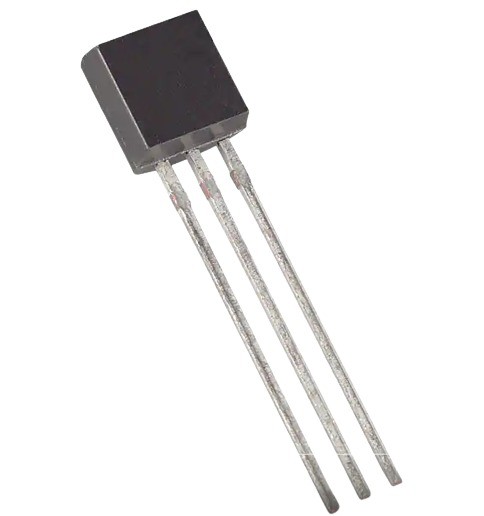

UGN3501 Linear Hall Effect Sensor IC (Analog Magnetic Field Sensor)

The UGN3501 Linear Hall Effect Sensor is an integrated magnetic sensing device designed to detect magnetic fields and convert them into an analog voltage output. It combines a Hall sensing element and signal conditioning circuitry in a single IC, enabling non contact measurement of magnetic field variations. It can be used in magnetic position sensing, proximity detection, and rotation monitoring circuits. Verify the exact device variant and datasheet before selecting its supply voltage and sensitivity.

Key Features -

• Linear Hall effect sensing for magnetic field detection

• Analog voltage output that varies with the applied magnetic field

• Integrated Hall sensing element and signal conditioning circuitry

• Non contact magnetic detection

• Suitable for position, proximity, and movement sensing

• Three pin through hole package, subject to the exact variant

Specifications -

• Component Type: Linear Hall effect sensor IC

• Model: UGN3501

• Sensing Method: Hall effect

• Output Type: Analog voltage

• Output Configuration: Single ended linear output

• Supply Voltage: Verify the operating range against the exact manufacturer datasheet

• Sensitivity: Confirm the value for the specific device variant

• Package Type: Three pin SIP, if applicable to the supplied variant

• Mounting Type: Through hole, subject to package version

• Operating Temperature: Verify the rated range using the manufacturer's datasheet

Applications -

• Magnetic field measurement systems

• Non contact position and displacement sensing

• Current sensing using magnetic fields

• Magnetic proximity detection

• Speed and rotation detection

• Robotics and embedded electronics

• Industrial monitoring and control circuits
