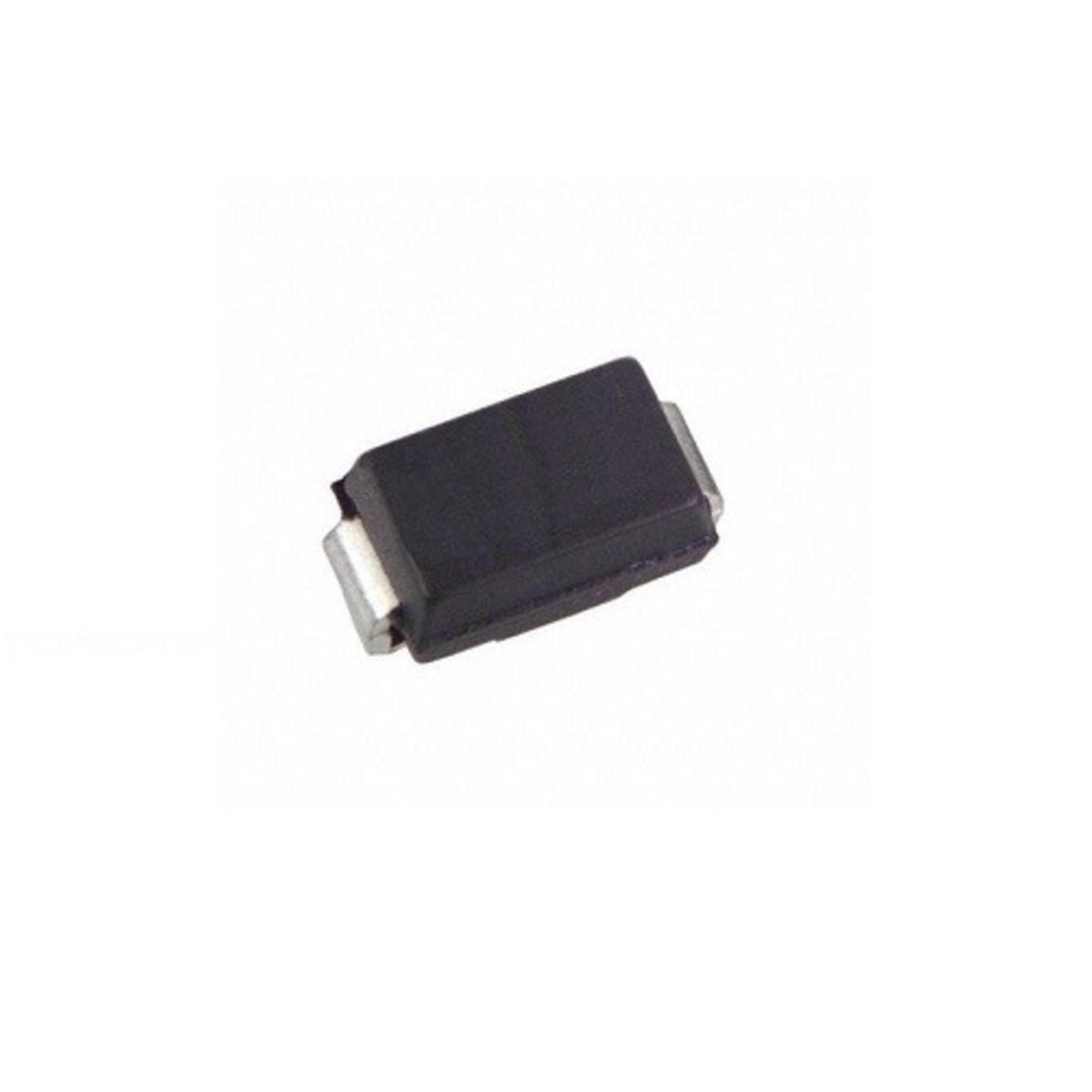

US1M Ultra Fast Recovery Diode 1A 1000V SMA DO-214AC (Surface Mount Rectifier Diode)

The US1M Ultra Fast Recovery Diode is a surface mount ultra-fast rectifier diode designed for high-speed rectification, freewheeling, switching power supplies, DC-DC converters, inverters, and power management applications. It features a 1A average forward current, 1000V reverse voltage, and ultra-fast recovery time, ensuring low switching losses and improved efficiency in high-frequency electronic circuits.

Housed in a compact SMA (DO-214AC) package, the US1M is widely used in industrial equipment, consumer electronics, LED drivers, automotive systems, and SMPS applications.

Key Features -

• Ultra-fast recovery rectifier diode

• 1A average forward current

• 1000V peak reverse voltage

• Ultra-fast reverse recovery time

• Low switching losses

• High surge current capability

• Compact SMA (DO-214AC) package

• High reliability

Specifications -

• Product Type: Ultra Fast Recovery Rectifier Diode

• Part Number: US1M

• Diode Type: Ultra Fast Recovery Diode

• Package Type: SMA (DO-214AC)

• Average Forward Current (IF): 1A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Forward Voltage (VF): Approximately 1.7V Maximum

• Reverse Recovery Time (trr): Approximately 75ns

• Peak Forward Surge Current (IFSM): 30A (Typical)

• Mounting Type: Surface Mount (SMD)

• Operating Temperature: Minus 55 Degree Celsius to Plus 150 Degree Celsius

• Additional Features: Fast recovery, low leakage current, high surge capability, high-frequency operation

Applications -

• Switching power supplies (SMPS)

• DC-DC converters

• Freewheeling diode circuits

• Inverters and UPS systems

• LED driver circuits

• Power management systems

• Industrial control equipment

• Consumer electronic devices
