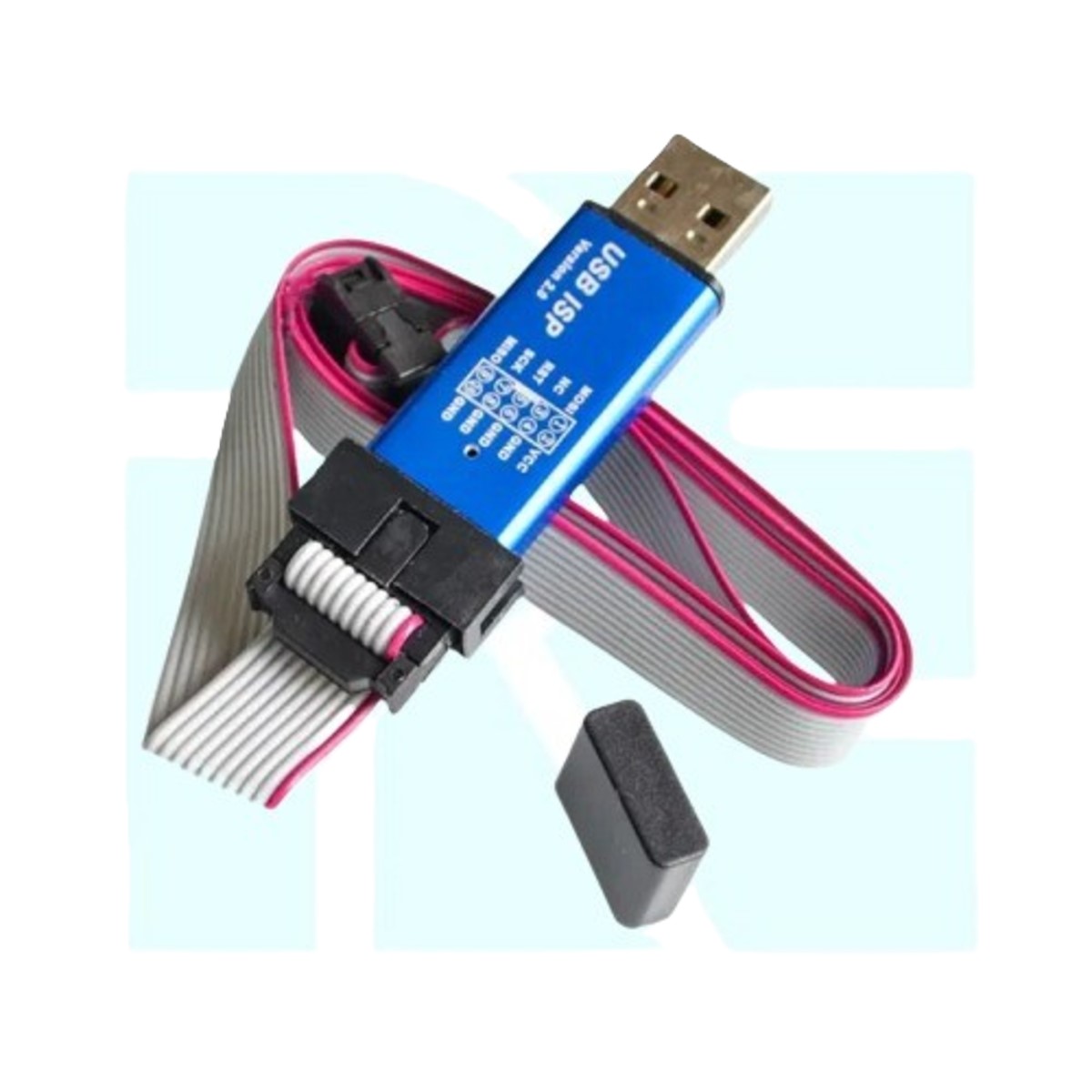

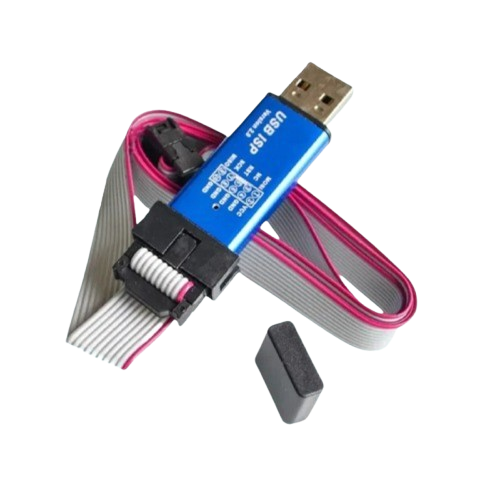

USB ISP Programmer Version 2.0

The USB ISP Programmer Version 2.0 is a compact programming tool designed for in system programming of AVR microcontrollers. It connects to a computer through a USB interface and allows direct programming of microcontrollers using the ISP protocol without removing the chip from the circuit.

This programmer is widely used for uploading firmware to AVR microcontrollers such as ATmega and ATtiny series. It is compatible with popular development tools and supports programming environments used for Arduino and AVR based embedded system development.

Key Features

• USB interface AVR ISP programmer
• Supports in system programming of AVR microcontrollers
• Compact USB powered design
• Compatible with ATmega and ATtiny microcontrollers
• Supports firmware uploading through USB
• Suitable for embedded system development
• Easy integration with AVR development tools

Specifications

• Programmer Type = USB ISP programmer
• Version = 2.0
• Supported MCU Family = AVR microcontrollers
• Programming Interface = ISP
• Connection Type = USB
• Application = AVR firmware programming and development

Interfaces

• USB Connector = Power and communication with computer
• ISP Header = Microcontroller programming interface
• MOSI = Master out slave in programming signal
• MISO = Master in slave out programming signal
• SCK = Serial clock signal
• RESET = Microcontroller reset signal
• VCC = Target power supply
• GND = Ground connection
