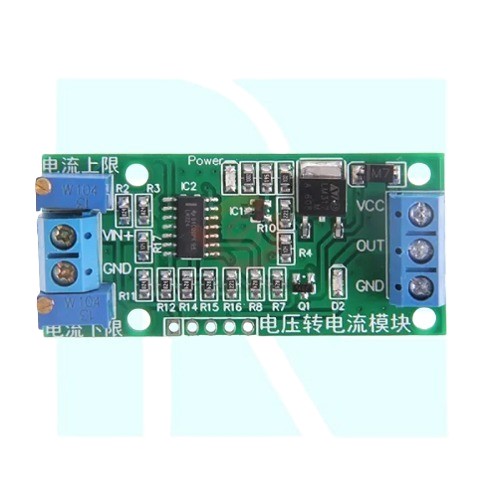

Voltage to Current Module 0-5V to 4-20mA Current Transmitter

The Voltage to Current Module 0-5V to 4-20mA Current Transmitter is designed to convert a 0-5V analog voltage input signal into a standard 4-20mA current output signal. It is widely used in industrial control systems for long distance signal transmission with high noise immunity.

The module ensures stable and linear conversion, making it suitable for PLC systems, sensor signal conditioning, process control, and automation applications where 4-20mA loop signaling is required.

Key Features

• Converts 0-5V voltage to 4-20mA current
• Standard industrial 4-20mA output
• Linear signal conversion
• High noise immunity for long distance transmission
• Suitable for PLC and control systems
• Compact module design

Specifications

• Input Signal Range = 0-5V DC
• Output Signal Range = 4-20mA
• Conversion Type = Voltage to current
• Application = Industrial signal transmission
• Output Type = Current loop

Interfaces

• VCC = Power supply positive
• GND = Ground
• VIN = 0-5V input signal
• IOUT Plus = 4-20mA output positive
• IOUT Minus = 4-20mA output return
