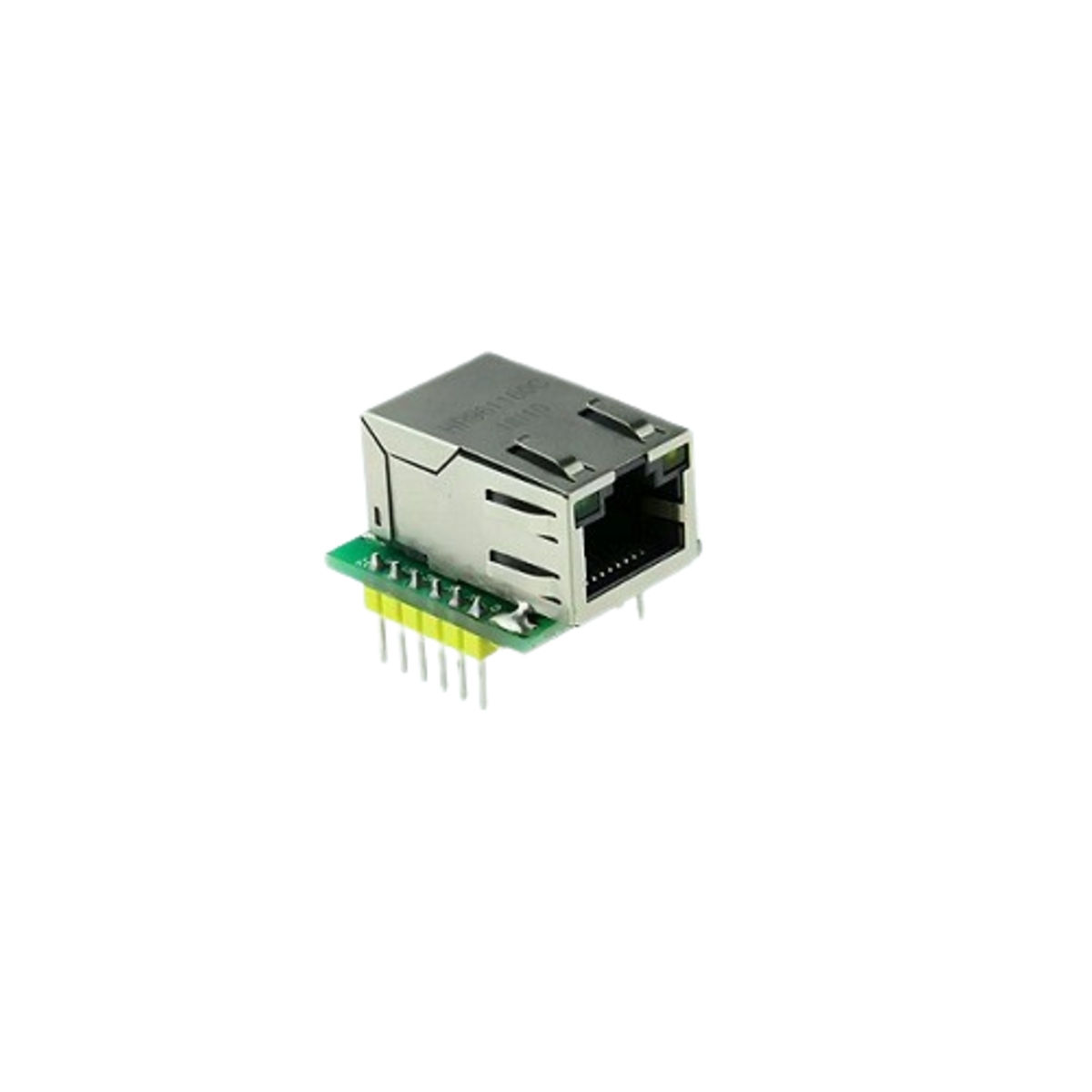

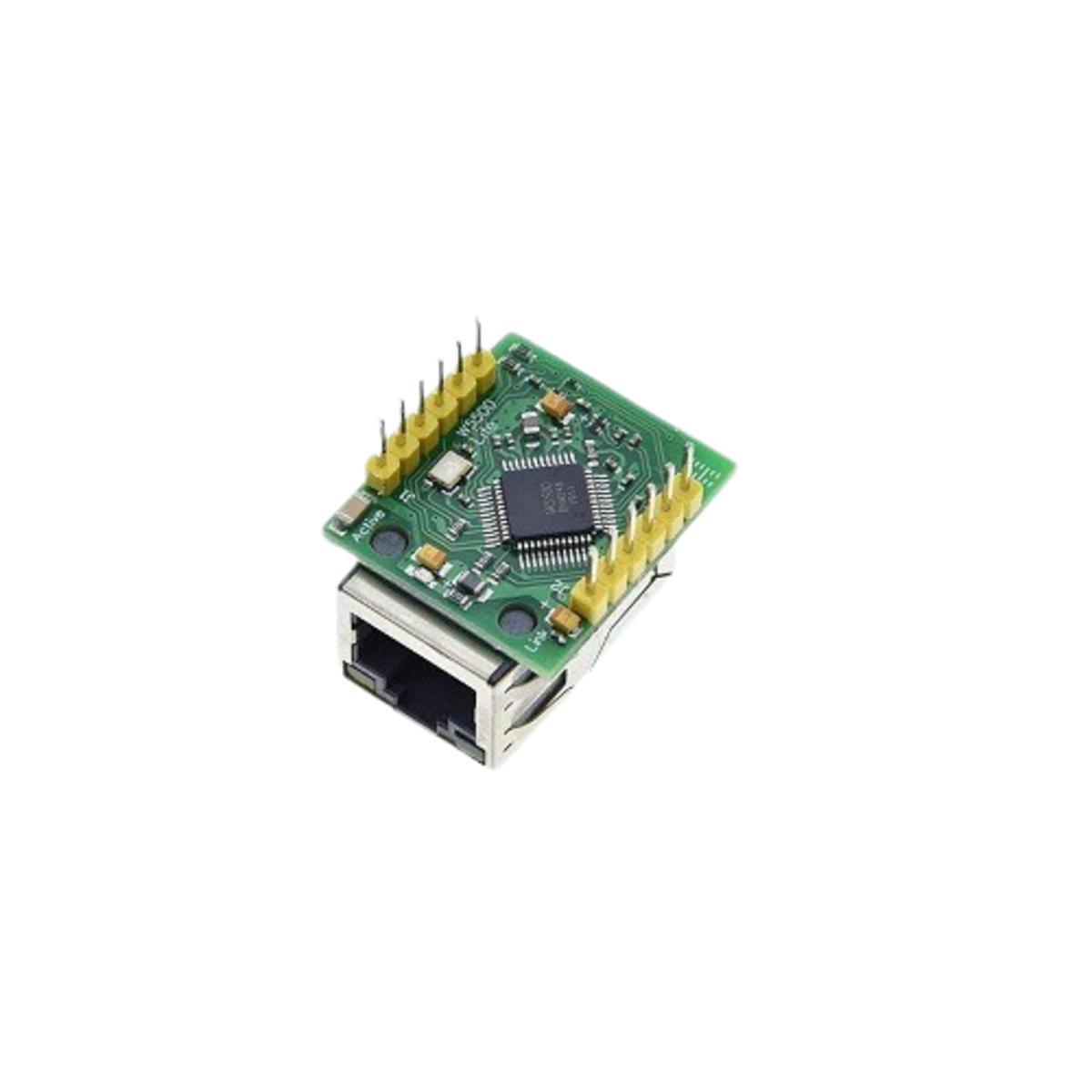

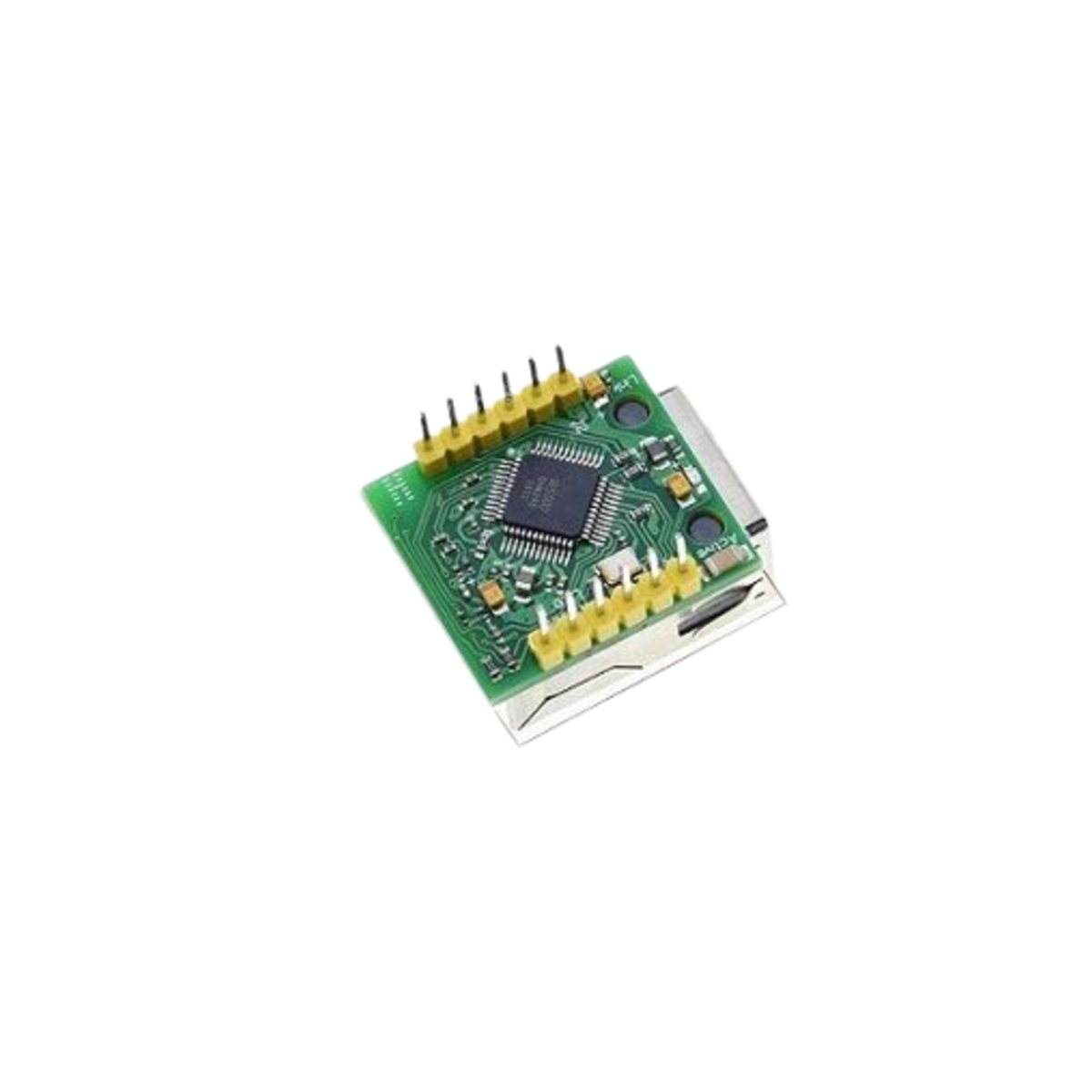

W5500 SPI to LAN Ethernet Module (10/100Mbps TCP/IP Network Interface)

The W5500 Ethernet Module is a wired Ethernet interface designed to add network connectivity to microcontroller and embedded systems. It uses the W5500 hardware TCP/IP Ethernet controller, which integrates a TCP/IP stack in hardware to reduce the processing requirements of the host microcontroller.

The module communicates with the controller through an SPI interface and provides a standard RJ45 Ethernet connection. It supports 10Mbps and 100Mbps Ethernet communication and is suitable for IoT devices, industrial automation, remote monitoring, data acquisition, and embedded networking applications.

Key Features -

• Based on W5500 hardware TCP/IP Ethernet controller

• Integrated hardware TCP/IP stack

• SPI interface for microcontroller communication

• 10Mbps and 100Mbps Ethernet support

• Onboard RJ45 Ethernet connector

• Suitable for wired IoT networking

• Reduces TCP/IP processing load on the host microcontroller

• Supports multiple network protocols through the W5500 controller

• Compact Ethernet interface module

• Compatible with Arduino, ESP32, STM32 and Raspberry Pi platforms

Specifications -

• Product Type: SPI to Ethernet Interface Module

• Ethernet Controller: W5500

• Communication Interface: SPI

• Network Interface: Ethernet LAN

• Network Speed: 10Mbps / 100Mbps

• Operating Voltage: 3.3V DC

• Network Connector: RJ45

• TCP/IP Stack: Hardware Integrated

• Application: Embedded Networking and IoT Communication

Applications -

• IoT devices

• Ethernet enabled Arduino projects

• ESP32 wired networking

• STM32 Ethernet applications

• Raspberry Pi networking projects

• Industrial automation

• Remote monitoring systems

• Data acquisition systems

• Network enabled sensors

• Embedded web servers

• Machine-to-machine communication

• Local area network communication
