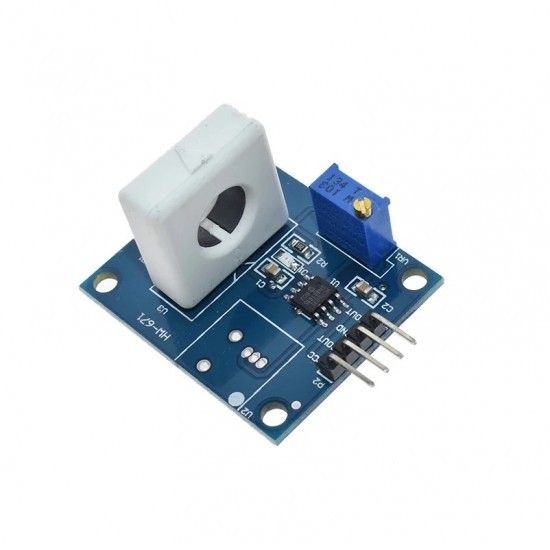

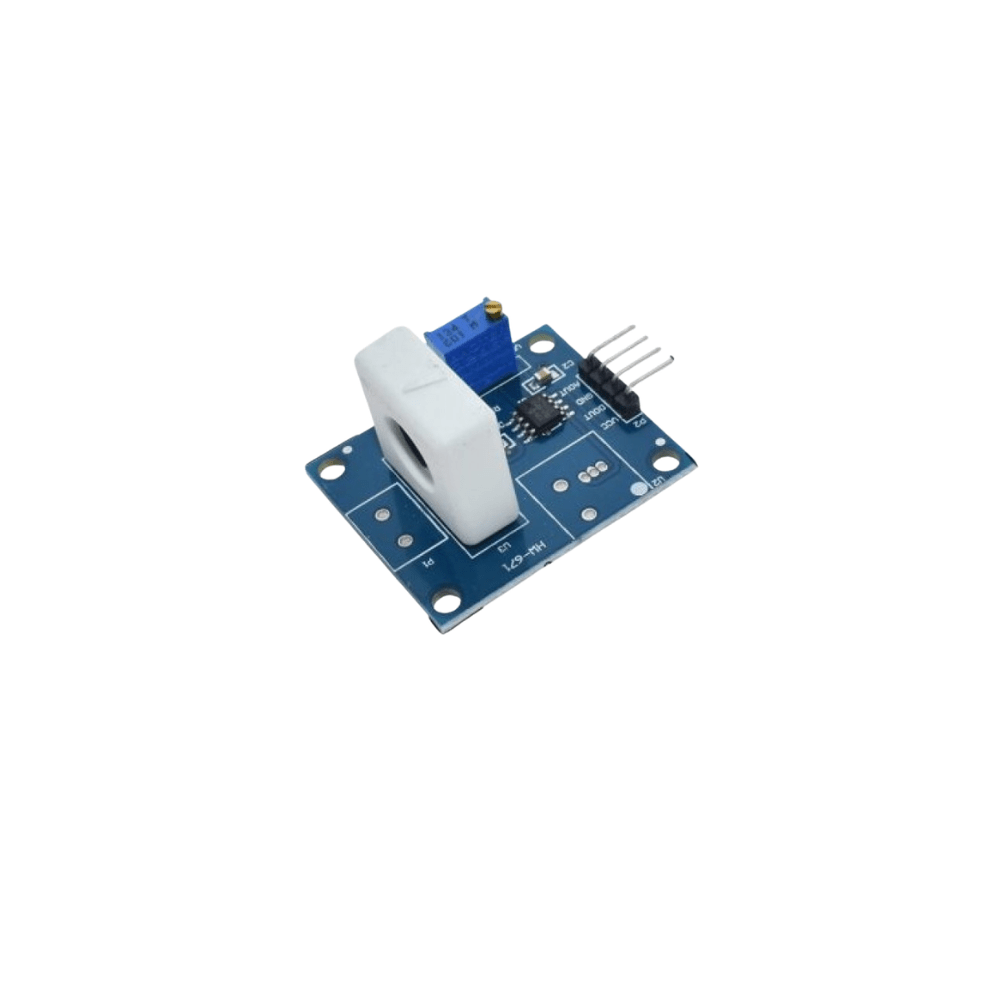

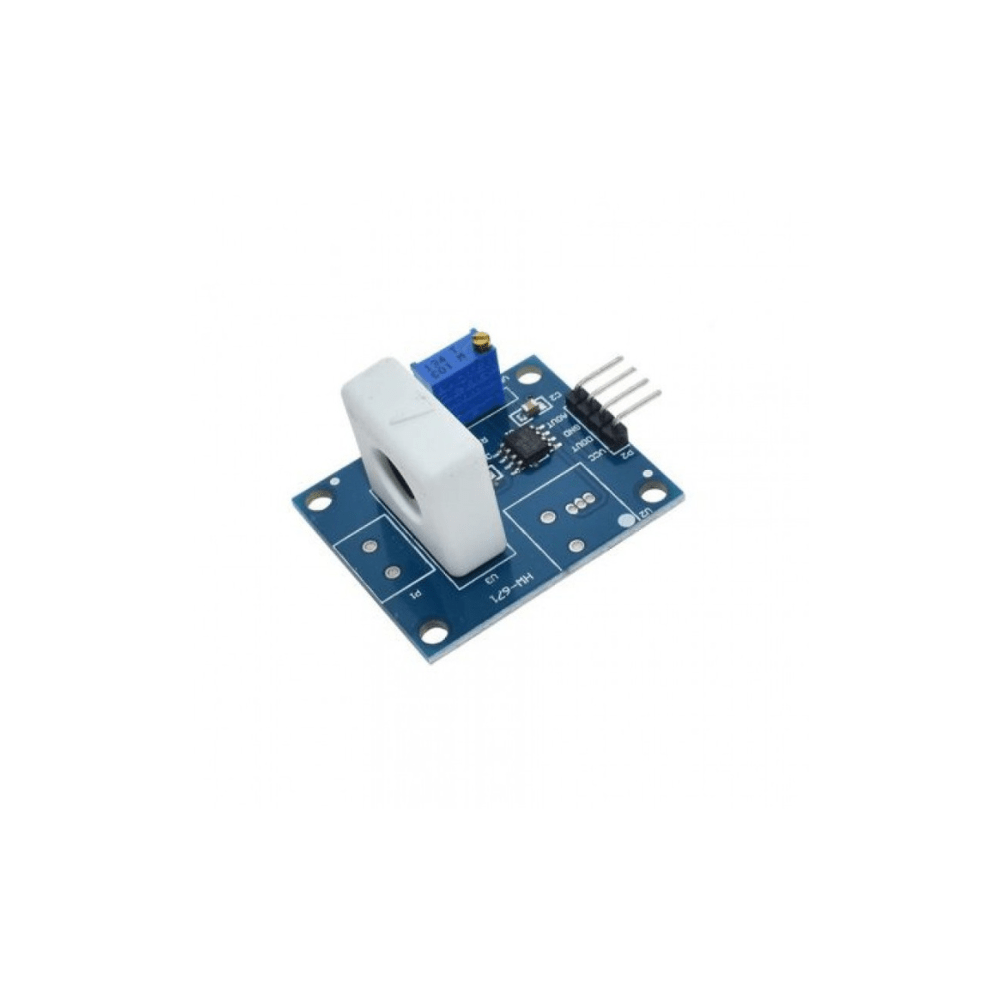

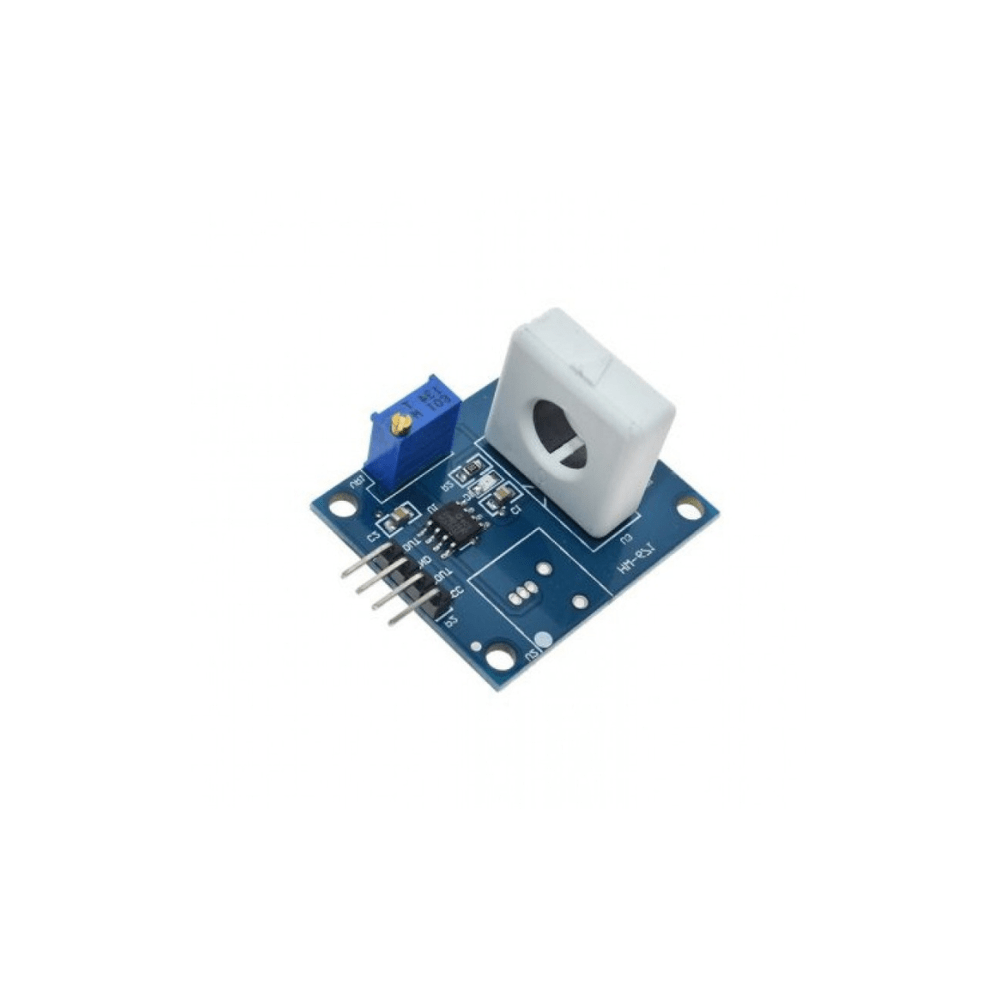

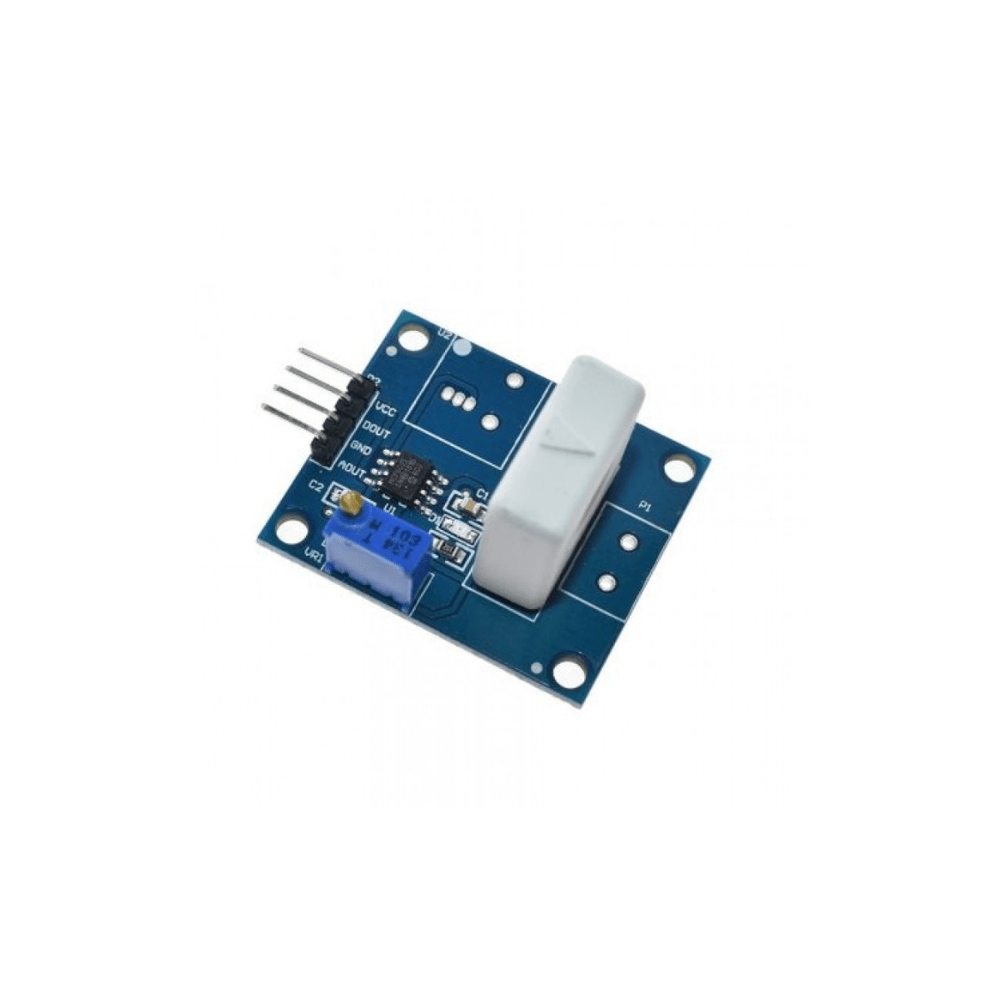

WCS1700 Hall Current Sensor Module with Over Current Protection (Hall Effect Current Sensor)

The WCS1700 Hall Current Sensor Module is a high-precision current sensing module designed to measure both AC and DC current using Hall effect technology. It provides galvanic isolation between the load circuit and the measurement circuit for safe and reliable operation. Featuring built-in over current protection and an analog voltage output proportional to the measured current, the module is ideal for Arduino, ESP32, STM32, Raspberry Pi, and other embedded platforms used in power monitoring and protection applications.

Key Features -

• Hall effect current sensing technology

• Measures both AC and DC current

• Built-in over current protection

• Analog voltage output

• High electrical isolation

• Stable and reliable performance

• Fast response time

• Low power consumption

• Easy microcontroller interfacing

• Suitable for power monitoring applications

Specifications -

• Product type - Current Sensor Module

• Model - WCS1700

• Sensor type - Hall Effect

• Output type - Analog Voltage

• Operating voltage - 5V DC

• Current measurement range - Typically Up to 35A (Model Dependent)

• Sensitivity - Model Dependent

• Isolation - High Electrical Isolation

• Working temperature - Industrial Grade

• Board type - Hall Current Sensor Module

Applications -

• AC and DC current measurement

• Overcurrent protection systems

• Power monitoring

• Energy management

• Battery management systems

• Industrial automation

• Arduino and IoT projects

• Embedded electronics
