WiFi LoRa 32 (V3) ESP32S3 + SX1262 LoRa Node Meshtastic and LoRaWAN Compatible

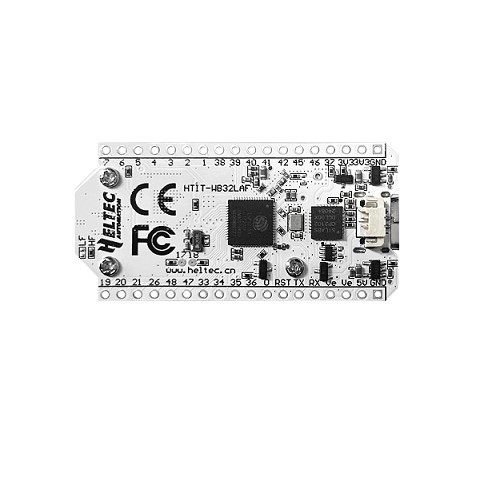

The WiFi LoRa 32 V3 development board integrates the ESP32S3 microcontroller with the SX1262 LoRa transceiver to provide long range wireless communication and WiFi connectivity in a single compact module. It is designed for IoT applications that require low power wide area communication combined with high performance processing.
This board supports LoRa communication as well as WiFi networking and can be used for long distance sensor networks, remote monitoring systems, and mesh communication projects. It is compatible with Meshtastic and LoRaWAN protocols and can be programmed using development platforms such as Arduino / ESP32 / Raspberry Pi for custom IoT solutions.
Key Features
- ESP32S3 microcontroller with integrated WiFi connectivity
- SX1262 LoRa transceiver for long range wireless communication
- Compatible with Meshtastic and LoRaWAN networks
- Supports long range low power communication
- USB interface for programming and power supply
- Suitable for IoT and wireless sensor network projects
- Compatible with Arduino / ESP32 development environments
Specifications
- Microcontroller = ESP32S3
- LoRa Transceiver = SX1262
- Wireless Connectivity = WiFi and LoRa
- Communication Protocols = Meshtastic and LoRaWAN compatible
- Interface = USB programming interface
- Operating Voltage = 3.3V
- Application = Long range IoT communication and sensor networks

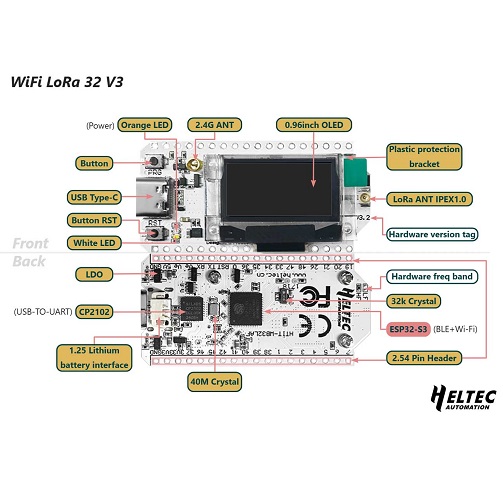

Interfaces
- 5V = Power input
- 3.3V = Regulated power output
- GND = Ground
- GPIO = General purpose input output pins
- RX = UART receive
- TX = UART transmit
- USB = Programming and power interface
