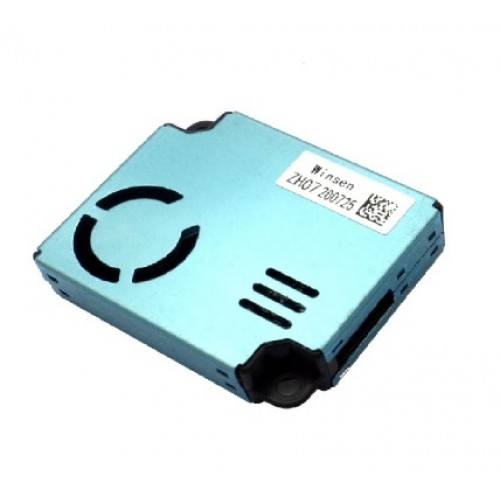

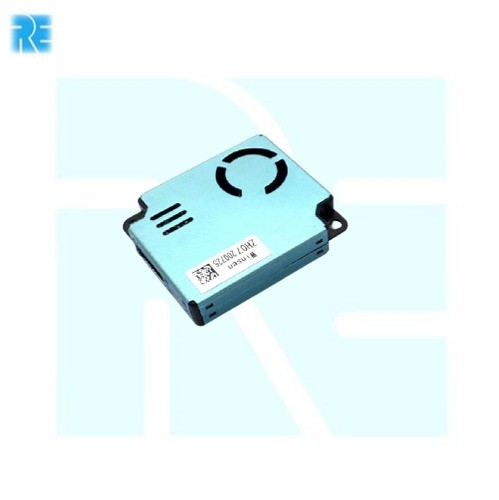

Winsen ZH07 Laser Dust Sensor Module
The Winsen ZH07 Laser Dust Sensor Module is an air quality monitoring sensor designed to detect airborne particulate matter such as PM2.5 and fine dust particles. It uses the laser scattering principle where particles passing through a laser beam scatter light that is measured by an internal photodiode to calculate particle concentration.
The module provides real time dust concentration data and supports UART and PWM output interfaces, making it easy to integrate with microcontrollers and embedded systems. It is widely used in air purifiers, ventilation systems, portable air quality monitors and smart home environmental monitoring devices.
Key Features
- Laser based dust particle detection sensor
- Detects airborne particles using light scattering technology
- Measures PM2.5 and fine particulate matter
- UART and PWM digital output interfaces
- Real time response with stable measurement
- Compact module design with mounting holes
- Suitable for air quality monitoring and smart home systems
Specifications
- Model = ZH07
- Detection Particle Size = 0.3um-10um
- Measurement Range = 0-1000ug/m3
- Detection Interval = 1s
- Preheating Time = 30s
- Operating Voltage = 4.8V-5.5V DC
- Operating Current = Less than 120mA
- Dormancy Current = Less than 20mA
- Response Time = Less than 30s
- Operating Temperature = -10C-60C
- Operating Humidity = 0-80 percent RH
- Module Size = 48mm x 40mm x 12.5mm
Interfaces
- VCC = Power supply input 5V
- GND = Ground connection
- TX = UART transmit data output
- RX = UART receive command input
- PWM = PWM output for dust concentration data
