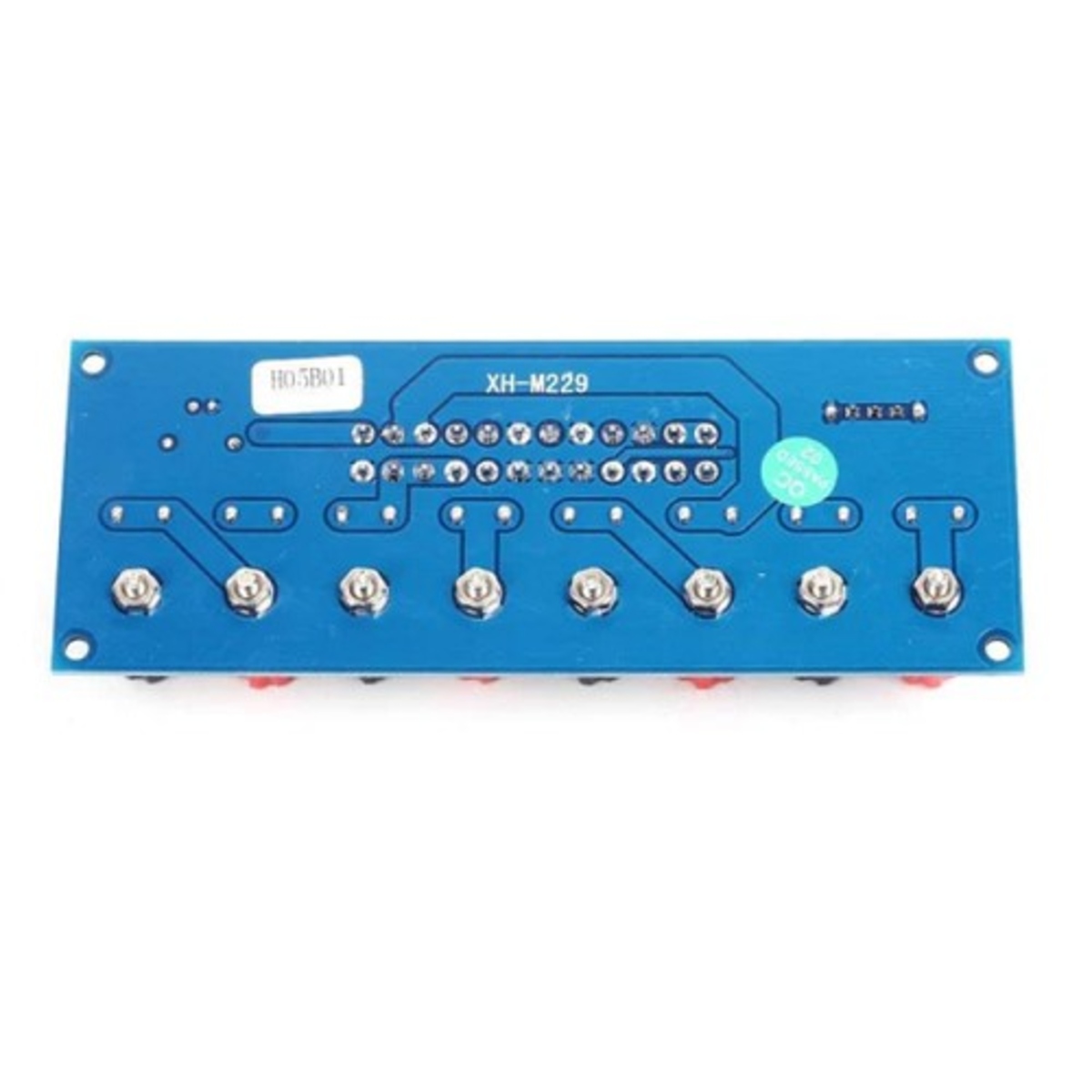

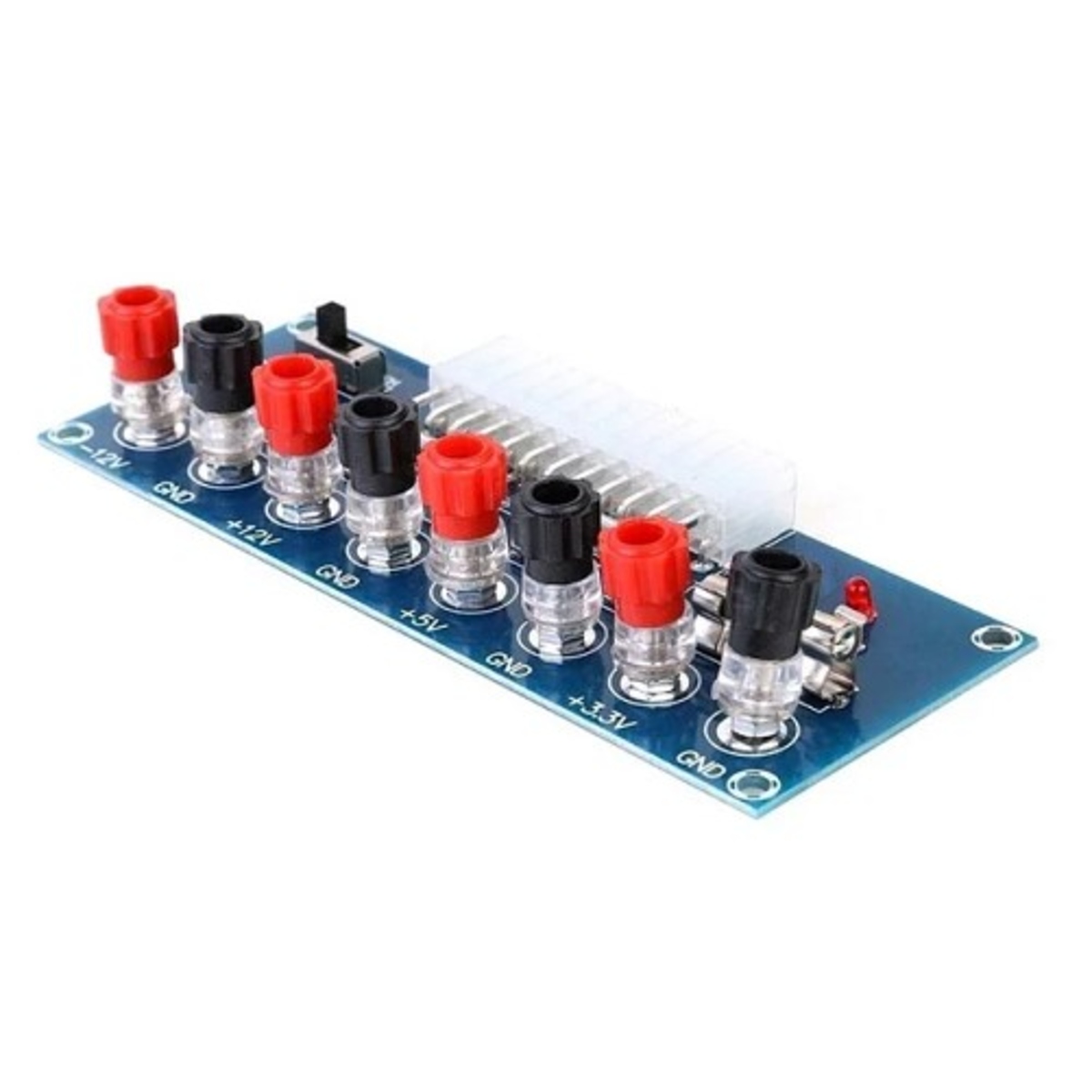

XH-M229 Desktop Power Supply ATX Adapter Module
The XH M229 Desktop Power Supply ATX Adapter Module converts a standard computer ATX power supply into a convenient desktop bench power supply. It connects directly to the 24 pin ATX connector and provides multiple regulated voltage outputs for electronics testing and development.
The module includes built in output terminals and high current banana plug connectors for easy connection of loads. Power indicator LEDs display the status of each voltage rail and an onboard power switch allows simple control of the power supply. This adapter is suitable for laboratory testing, DIY electronics workbenches, and development environments.
Key Features
- Converts ATX computer power supply into desktop bench power supply
- Standard 24 pin ATX connector interface
- Multiple voltage outputs including 3.3V 5V 12V and -12V
- High current banana plug output terminals
- Built in screw output terminals for easy connection
- Power indicator LEDs for voltage rails
- On board power switch for supply control
- Integrated protection resistors and capacitors
Specifications
- Module Model = XH-M229
- Input Connector = Standard 24 pin ATX power connector
- Output Voltages = 3.3V 5V 12V -12V
- Output Terminals = Banana plug terminals and screw terminals
- Indicators = Power status LEDs
- Control = On board power switch
- Protection Components = Resistors and capacitors

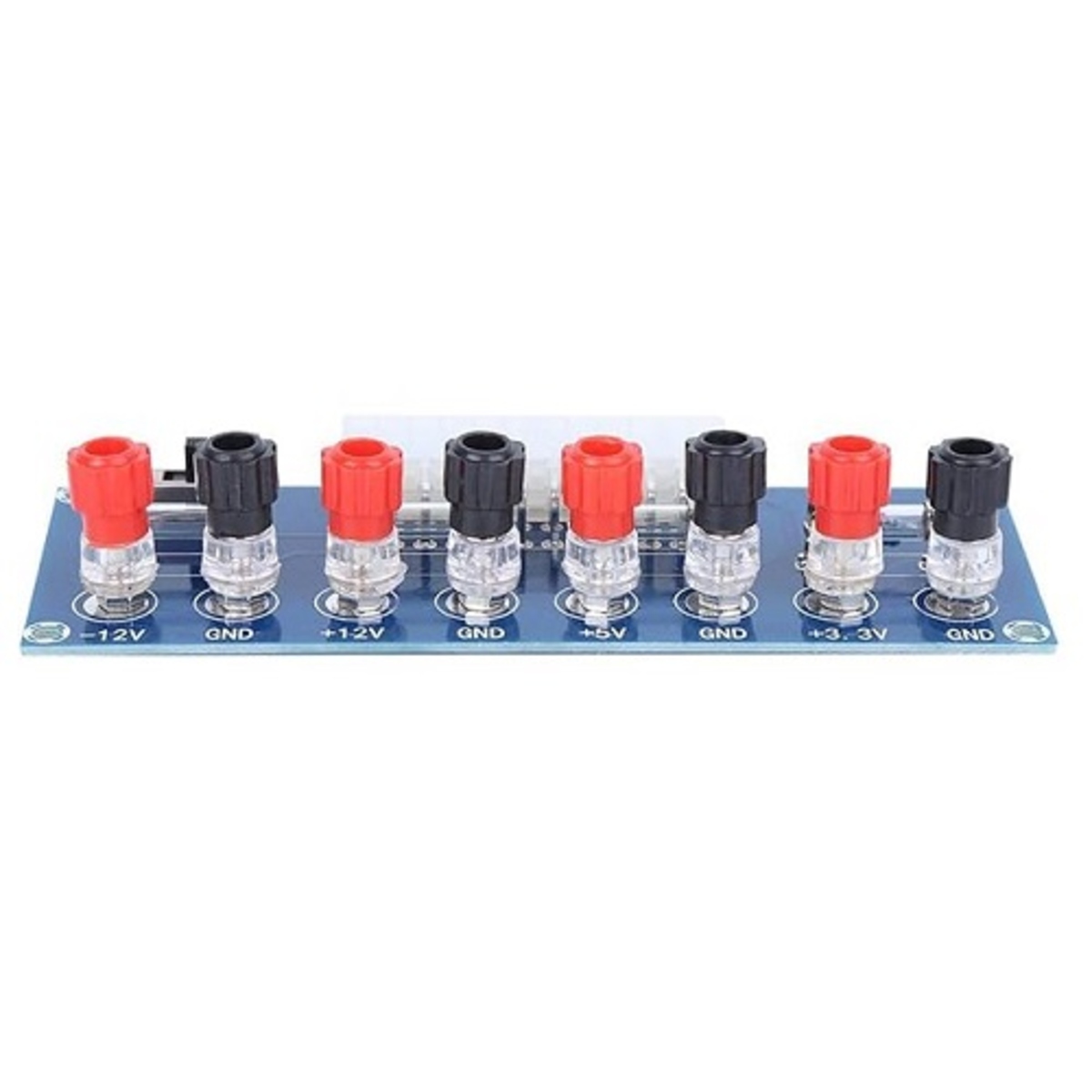

Interfaces
- ATX 24 Pin = Input connection from ATX power supply
- 3.3V = 3.3V output terminal
- 5V = 5V output terminal
- 12V = 12V output terminal
- -12V = -12V output terminal
- GND = Ground terminal
