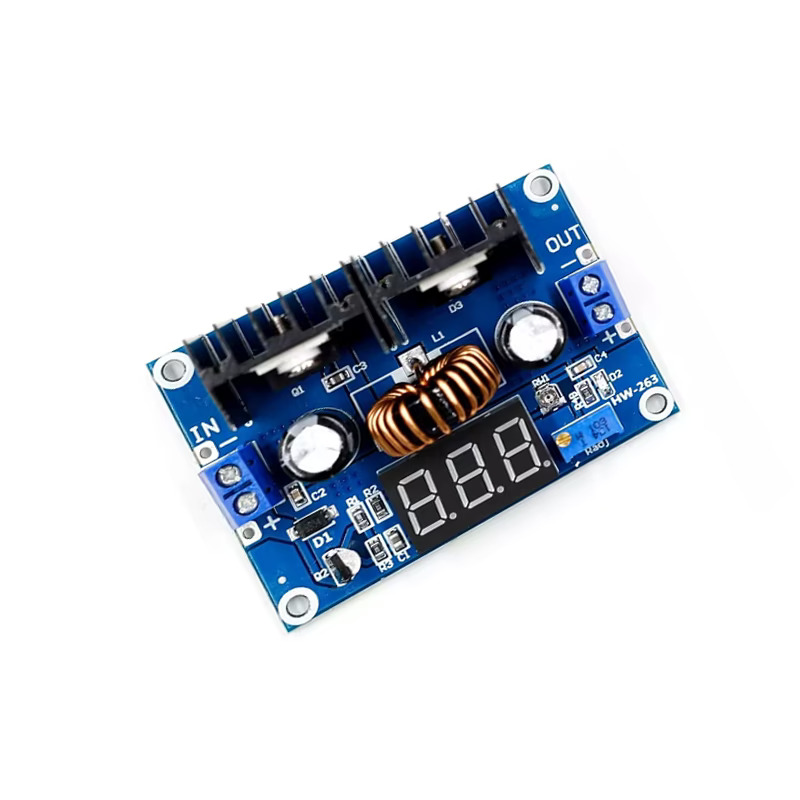

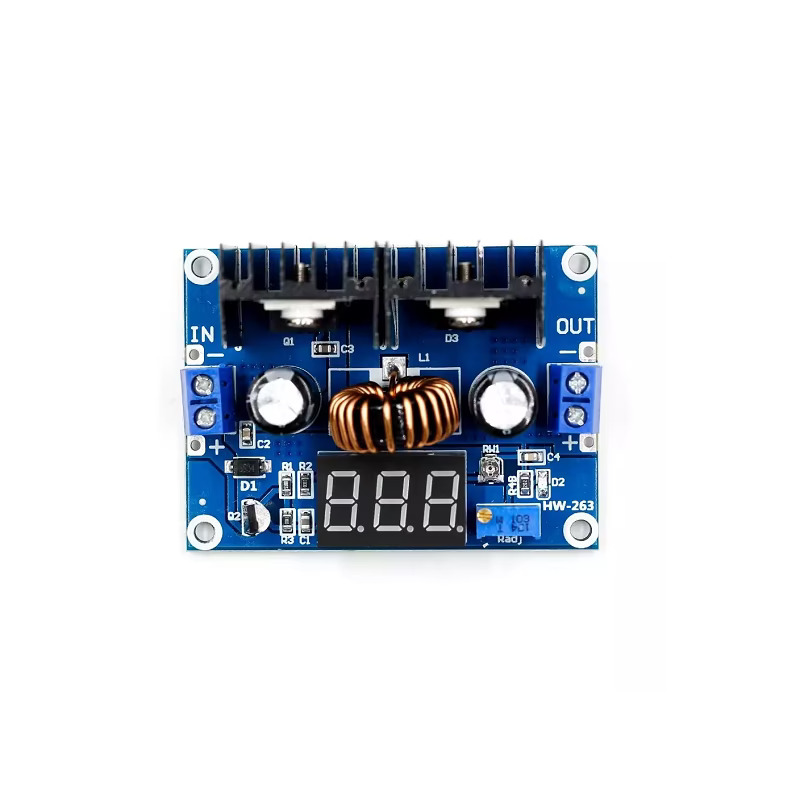

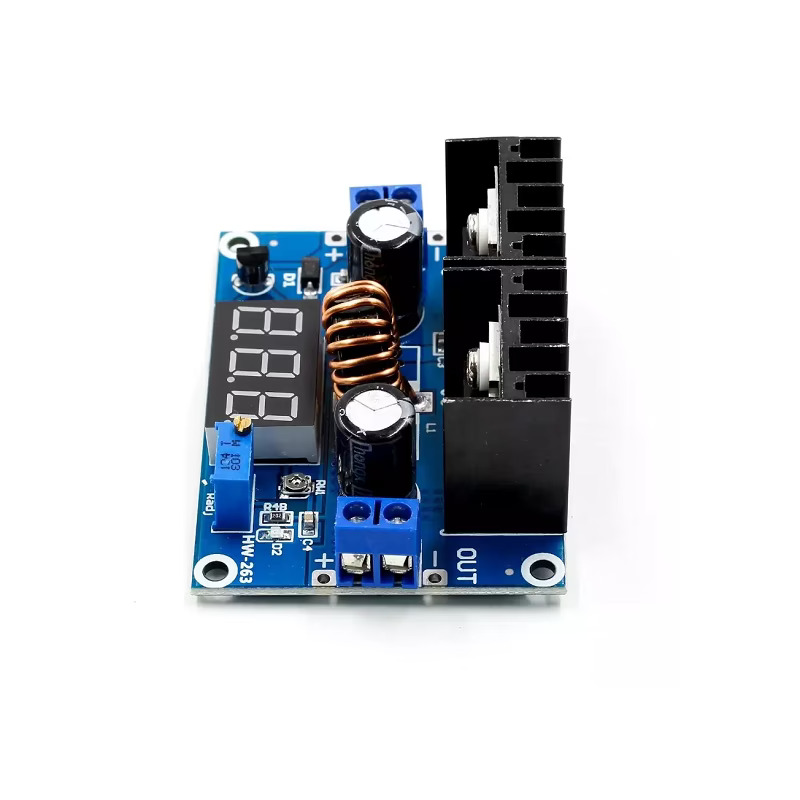

XH-M404 XL4016 DC 4V to 40V 8A Voltage Regulator Module with Display (Adjustable Buck Converter)

The XH-M404 XL4016 Voltage Regulator Module is a high-power DC step-down buck converter designed to convert a higher DC input voltage into an adjustable lower output voltage. Based on the XL4016 switching regulator IC, it provides efficient power conversion and supports high-current applications.

The module accepts a wide 4V to 40V DC input and provides an adjustable output from 1.25V to 36V, with output current capability up to 8A. An integrated digital display provides convenient monitoring of the output voltage during operation.

Key Features -

• High-power DC step-down buck converter

• Based on XL4016 switching regulator IC

• Wide input voltage range of 4V to 40V DC

• Adjustable output voltage from 1.25V to 36V

• Output current up to 8A

• Built-in digital voltage display

• Adjustable output voltage control

• Efficient switching voltage conversion

• Suitable for high-current power applications

• Suitable for battery charging and LED applications

Specifications -

• Product Type: DC DC Buck Converter Module

• Model: XH-M404

• Regulator IC: XL4016

• Input Voltage: 4V to 40V DC

• Output Voltage: 1.25V to 36V DC Adjustable

• Maximum Output Current: 8A

• Conversion Type: DC Step-Down Buck Converter

• Display Type: Digital Voltage Display

• Output Adjustment: Adjustable

• Application: Power Regulation, LED Driver and Battery Charging

Applications -

• Adjustable DC power supplies

• Battery charging systems

• LED driver applications

• Embedded electronics

• DIY power supply projects

• Motor and actuator power systems

• Laboratory power regulation

• High-current electronic projects

• Automotive electronics

• Industrial power control
