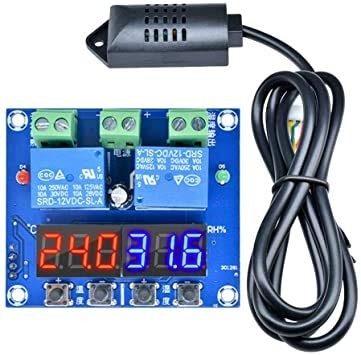

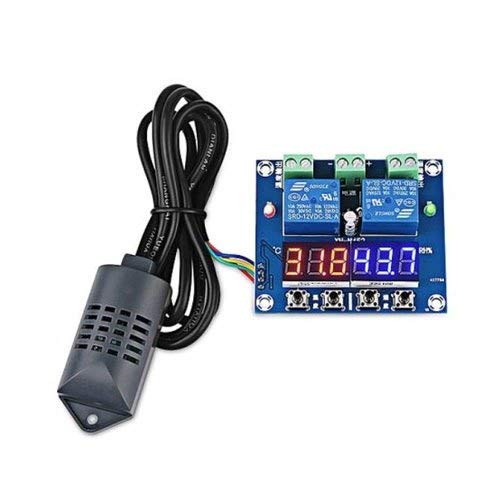

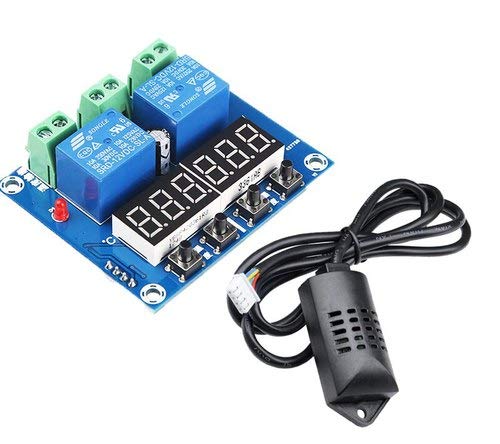

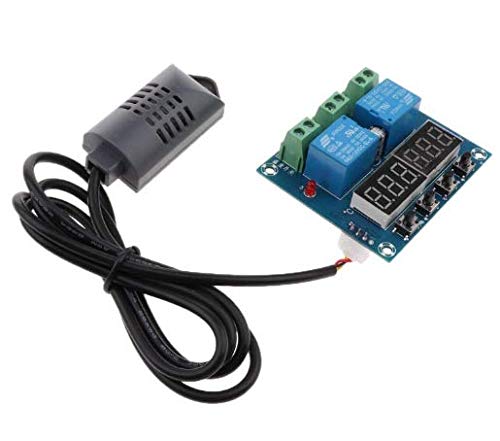

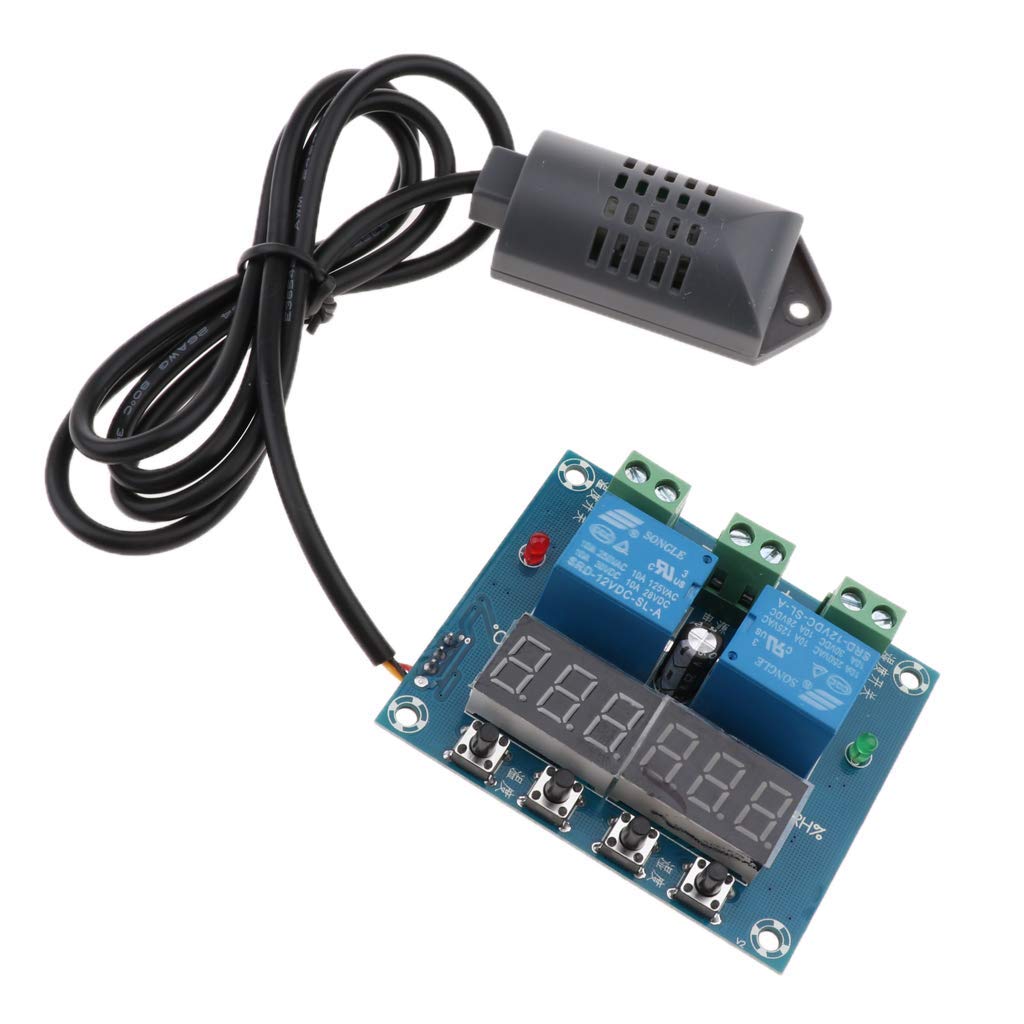

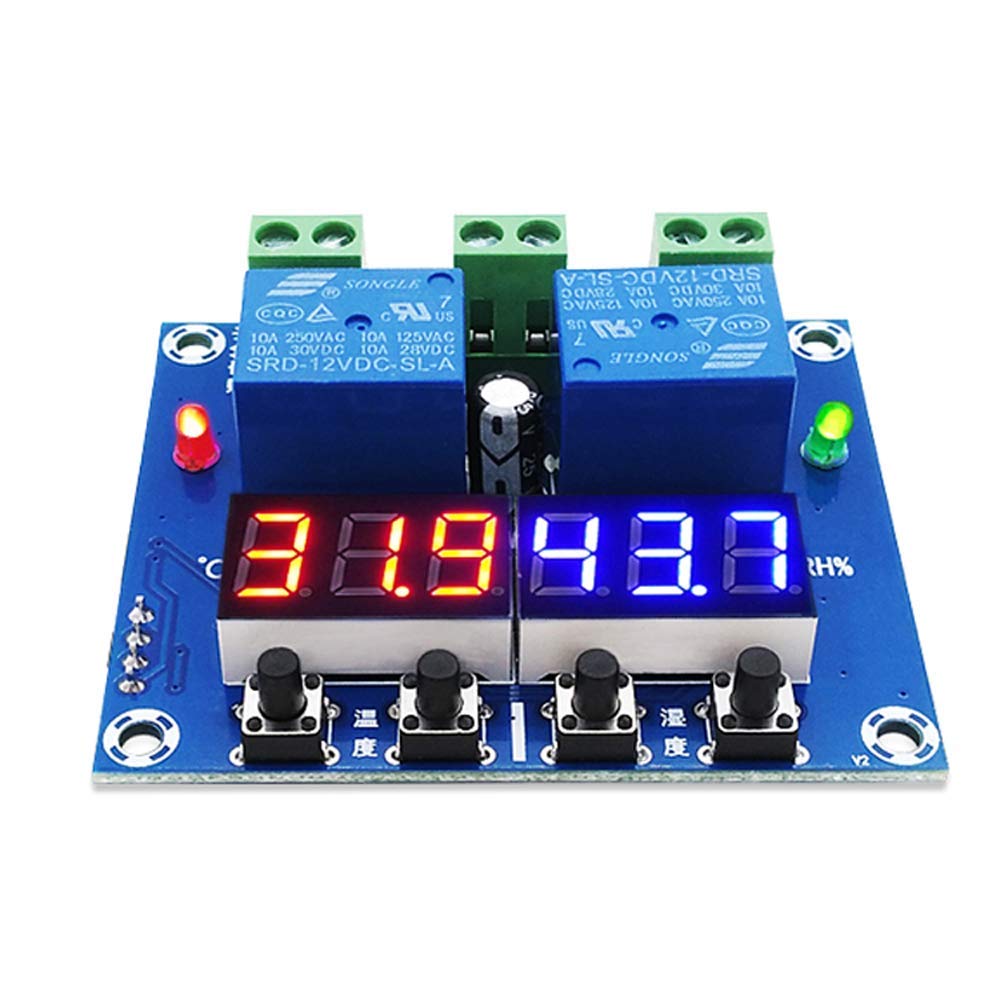

XH-M452 Temperature and Humidity Controller Module
The XH-M452 Temperature and Humidity Controller Module is a digital control board designed to monitor and regulate temperature and humidity in enclosed environments. It features dual relay outputs to control heating cooling humidifying or dehumidifying devices based on user defined set points.
This module is suitable for incubators greenhouses storage rooms industrial cabinets and environmental control systems. With a clear digital display and simple parameter setting interface it provides stable and automatic control for various automation applications.
KEY FEATURES
- Dual control for temperature and humidity
- Digital LED display for real time monitoring
- Adjustable set points and hysteresis
- Dual relay output control
- High accuracy sensor input
- Easy parameter configuration
- Suitable for industrial and DIY applications
SPECIFICATIONS
- Model - XH-M452
- Control Type - Temperature and humidity control
- Input Voltage - 12V DC
- Temperature Measurement Range - -20 to +60 degree C
- Humidity Measurement Range - 0 to 100 percent RH
- Temperature Accuracy - plus minus 1 degree C
- Humidity Accuracy - plus minus 5 percent RH
- Relay Capacity - 10A at 220V AC
- Display Type - Dual digital LED display
- Sensor Type - External temperature and humidity sensor
INTERFACES
- VCC - 12V DC power input
- GND - Ground connection
- TEMP SENSOR - Temperature sensor input
- HUM SENSOR - Humidity sensor input
- RELAY1 COM - Common terminal for temperature control
- RELAY1 NO - Normally open terminal for temperature control
- RELAY1 NC - Normally closed terminal for temperature control
- RELAY2 COM - Common terminal for humidity control
- RELAY2 NO - Normally open terminal for humidity control
- RELAY2 NC - Normally closed terminal for humidity control
