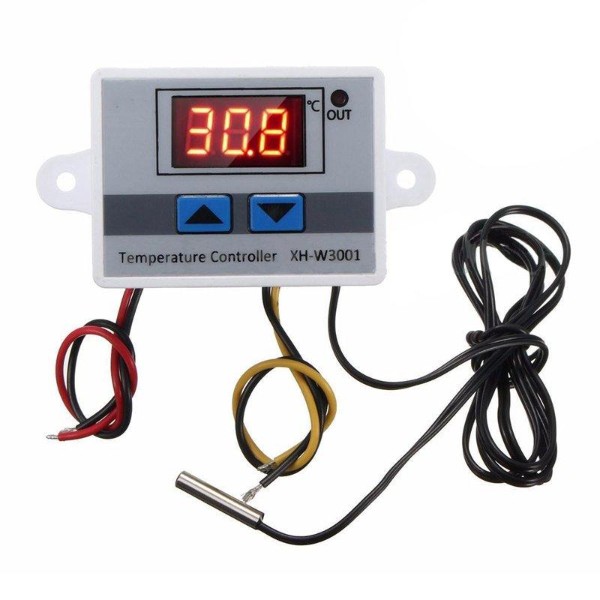

XH-W3001 220V AC 1500W Digital Temperature Controller (NTC Thermostat Relay Module)

The XH-W3001 Digital Temperature Controller is a microcomputer-based thermostat module designed for automatic temperature monitoring and control in AC-powered heating and cooling systems. It operates from 220V AC and uses an integrated relay to switch connected loads up to 1500W.

The module features a digital LED display for temperature monitoring and adjustable temperature thresholds for automatic relay control. An external NTC temperature probe measures the surrounding temperature and allows the controller to activate or deactivate the connected load according to the configured settings.

Key Features -

• Microcomputer-based temperature controller

• 220V AC operating voltage

• Supports load switching up to 1500W

• Digital LED temperature display

• Adjustable upper and lower temperature limits

• Integrated relay output

• NTC temperature sensing probe

• Suitable for heating and cooling control

• Compact panel-mount design

• Automatic temperature-based load control

Specifications -

• Product Type: Digital Temperature Controller

• Model: XH-W3001

• Operating Voltage: 220V AC

• Maximum Load Power: 1500W

• Temperature Control Range: -50 C to 110 C

• Temperature Control Accuracy: ±0.1 C

• Sensor Type: NTC Temperature Probe

• Output Type: Relay Switch Output

• Display Type: LED Digital Display

• Control Method: Automatic Temperature Based Relay Switching

• Application: Heating and Cooling Temperature Control

Applications -

• Heating system control

• Cooling system control

• Refrigeration equipment

• Incubators

• Greenhouse temperature control

• Laboratory equipment

• Home automation projects

• Industrial temperature control

• Electrical cabinet temperature control

• DIY thermostat systems
