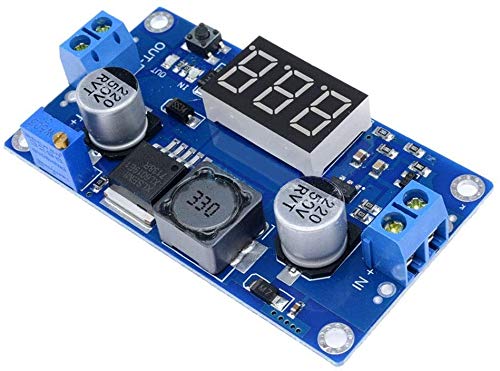

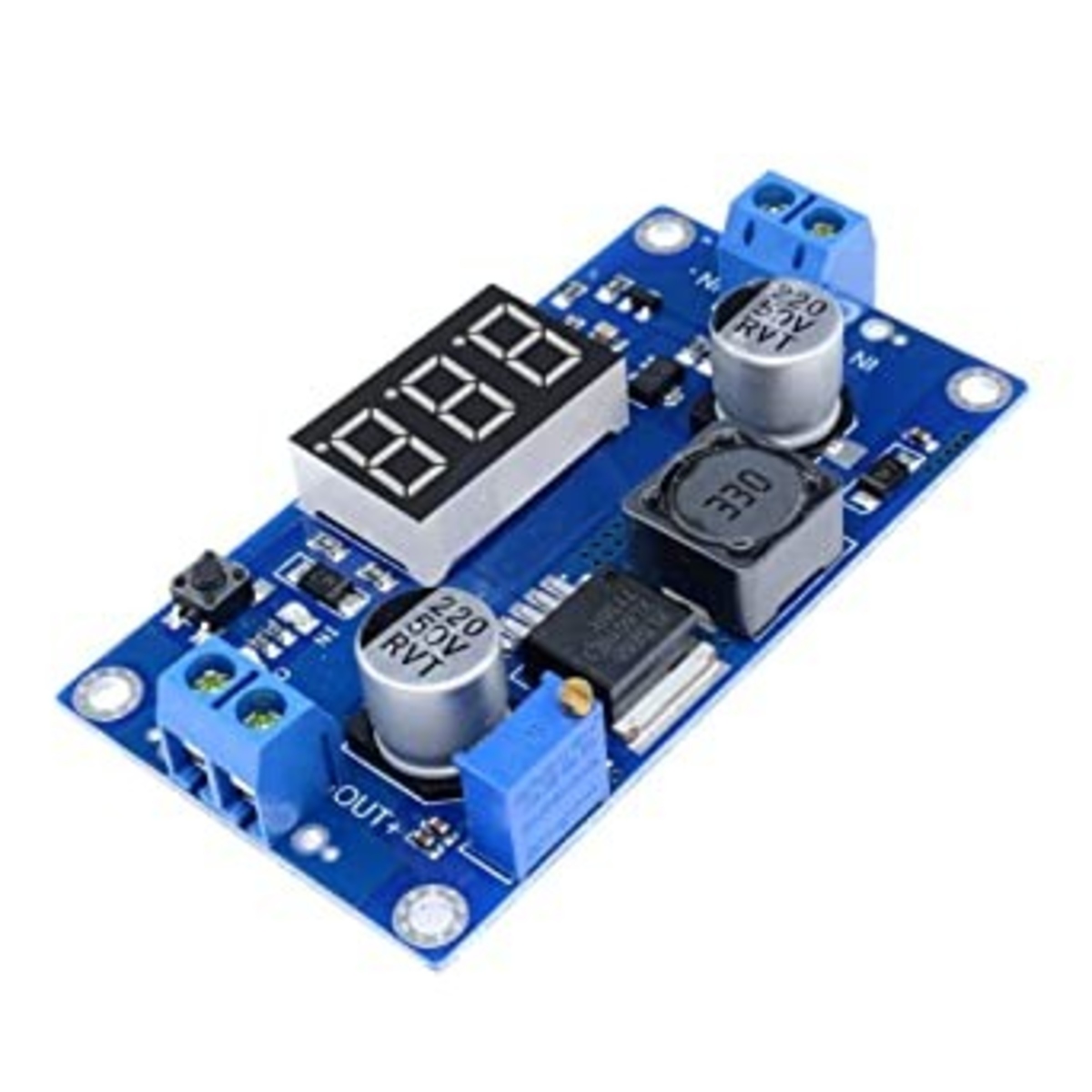

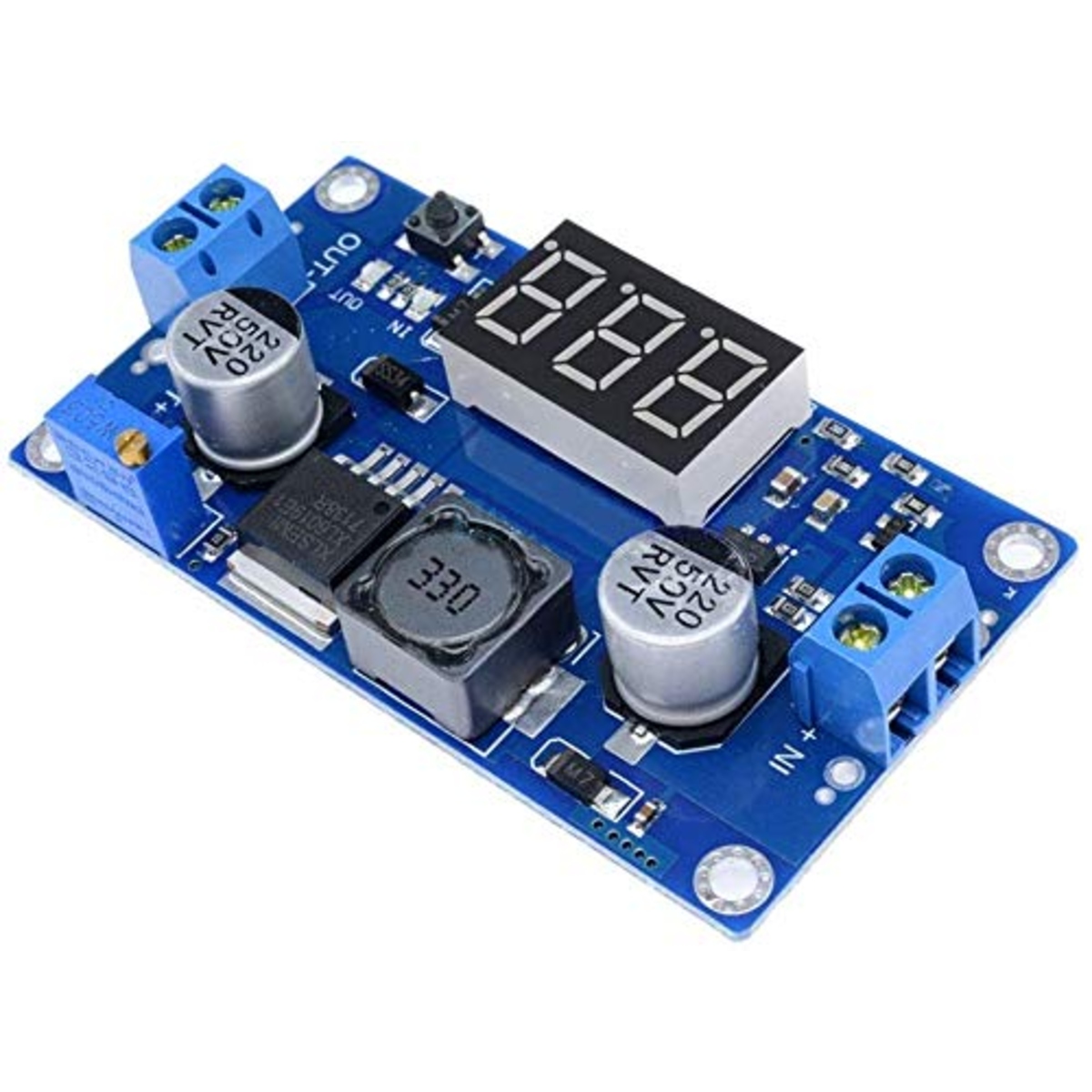

XL6009 DC-DC Digital Boost Converter Module with Voltmeter (Adjustable Step-Up Power Supply)
The XL6009 DC-DC Digital Boost Converter Module with Voltmeter is a high-efficiency step-up voltage regulator designed to increase low DC input voltages to a higher adjustable output voltage. Based on the XL6009 boost converter IC, it delivers stable constant voltage output while featuring an onboard digital LED voltmeter for real-time voltage monitoring and easy adjustment. Its compact design and efficient power conversion make it ideal for battery-powered devices, solar energy systems, robotics, automotive electronics, and DIY power supply projects.
The module supports a wide input voltage range and provides reliable performance for applications requiring adjustable DC voltage with visual output monitoring.
Key Features -
• Based on the XL6009 DC-DC boost converter IC
• Adjustable output voltage with constant voltage regulation
• Integrated LED digital voltmeter for real-time voltage display
• High-efficiency step-up (boost) power conversion
• Wide DC input voltage range
• Stable and reliable output regulation
• Compact PCB module design
• Suitable for battery-powered and portable applications
• Easy voltage adjustment using onboard potentiometer
• Ideal for DIY power supplies and embedded systems
Specifications -
• Product type - DC-DC Boost Converter Module
• Converter IC - XL6009
• Conversion type - Step-Up (Boost) Converter
• Input voltage - Wide DC Input Range
• Output voltage - Adjustable DC Output
• Regulation mode - Constant Voltage (CV)
• Display type - LED Digital Voltmeter
• Efficiency - High Conversion Efficiency
• Output adjustment - Onboard Potentiometer
• Package / Mounting type - PCB Module
Applications -
• DIY adjustable power supplies
• Battery-powered electronic devices
• Solar power systems
• Arduino and ESP32 projects
• Robotics and automation
• Automotive electronics
• Portable charging systems
• LED lighting applications
• Industrial embedded systems
• DC voltage boosting applications
