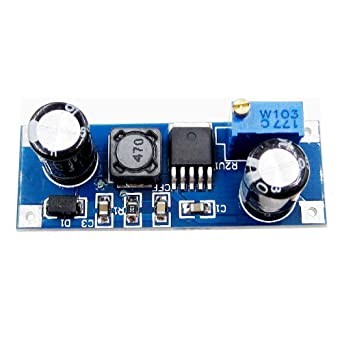

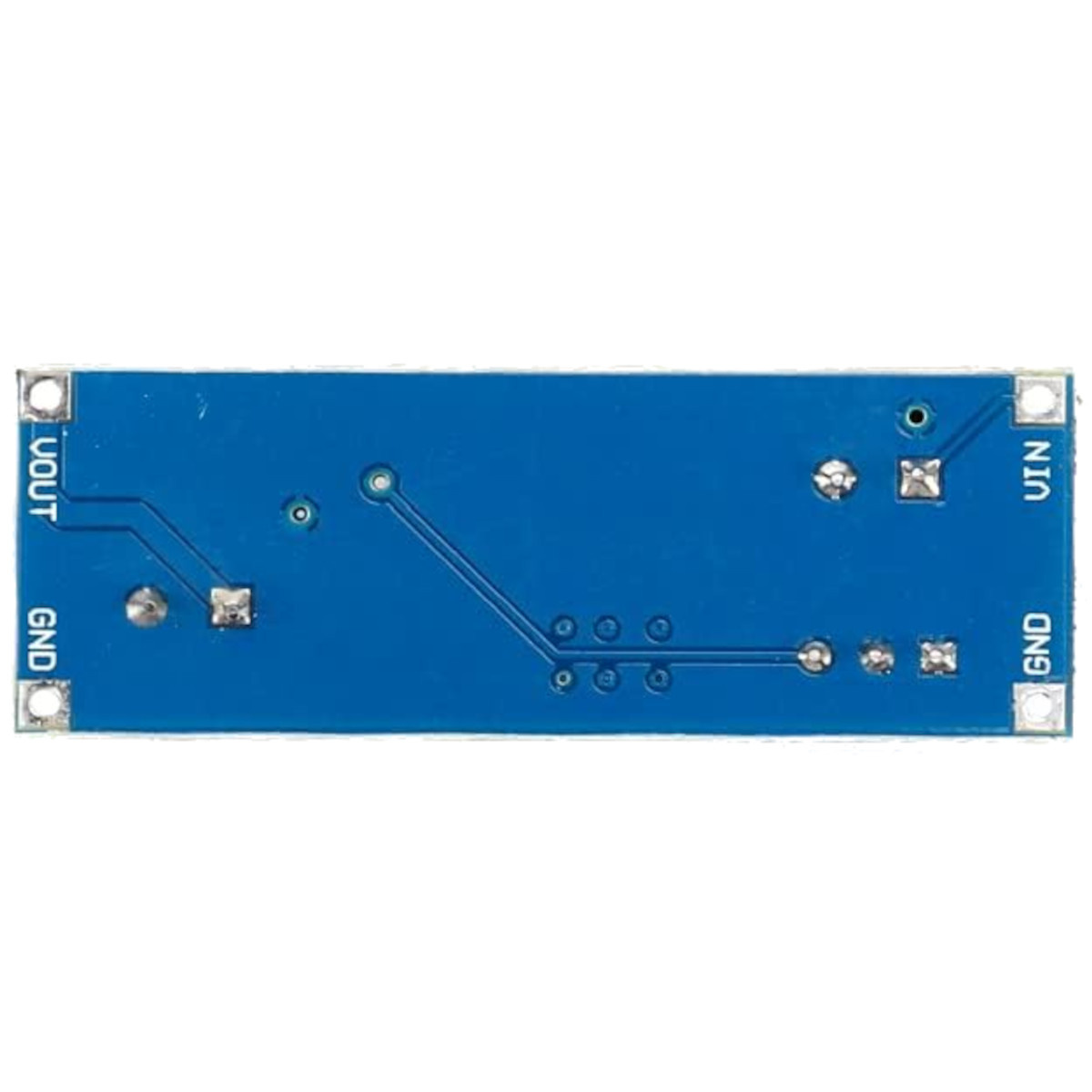

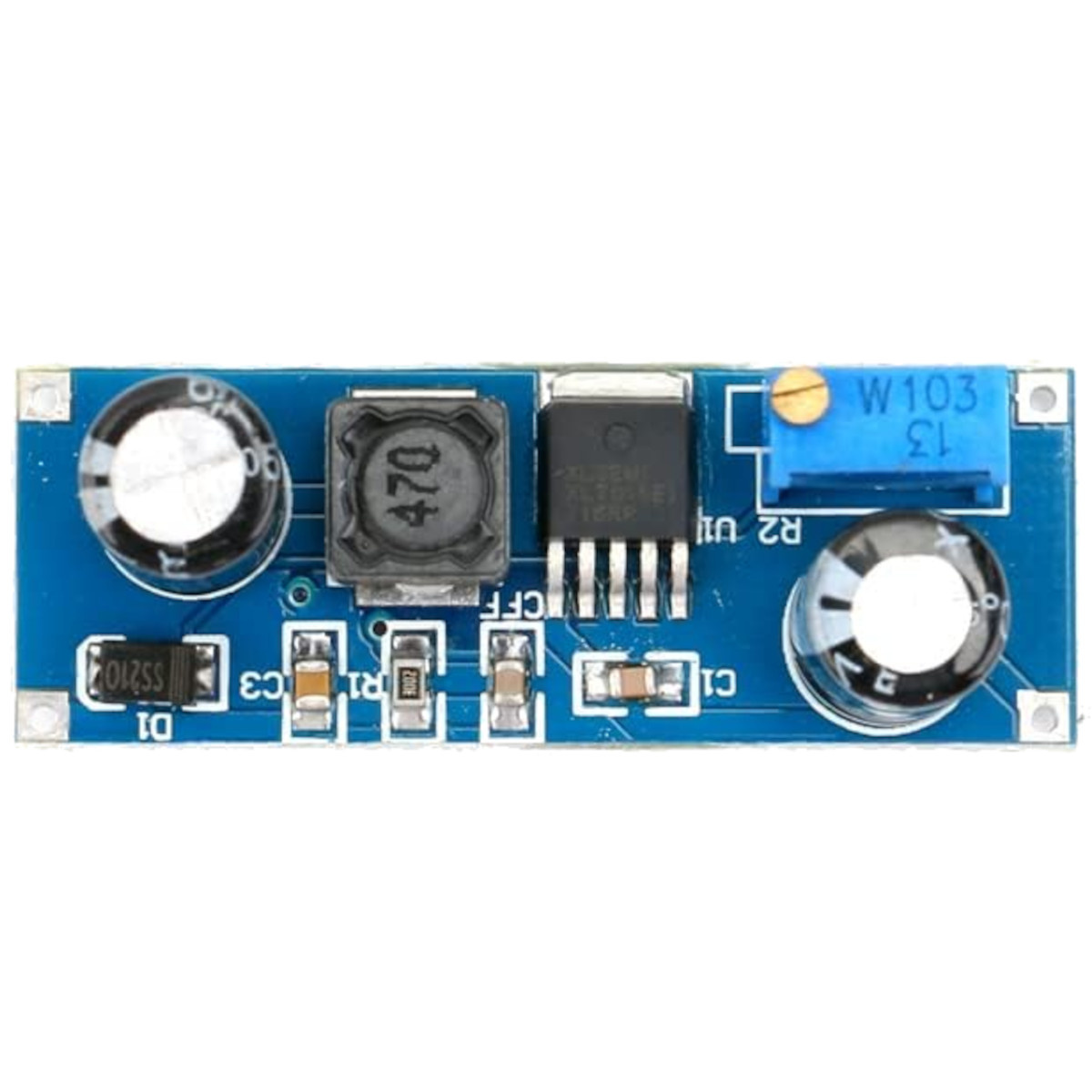

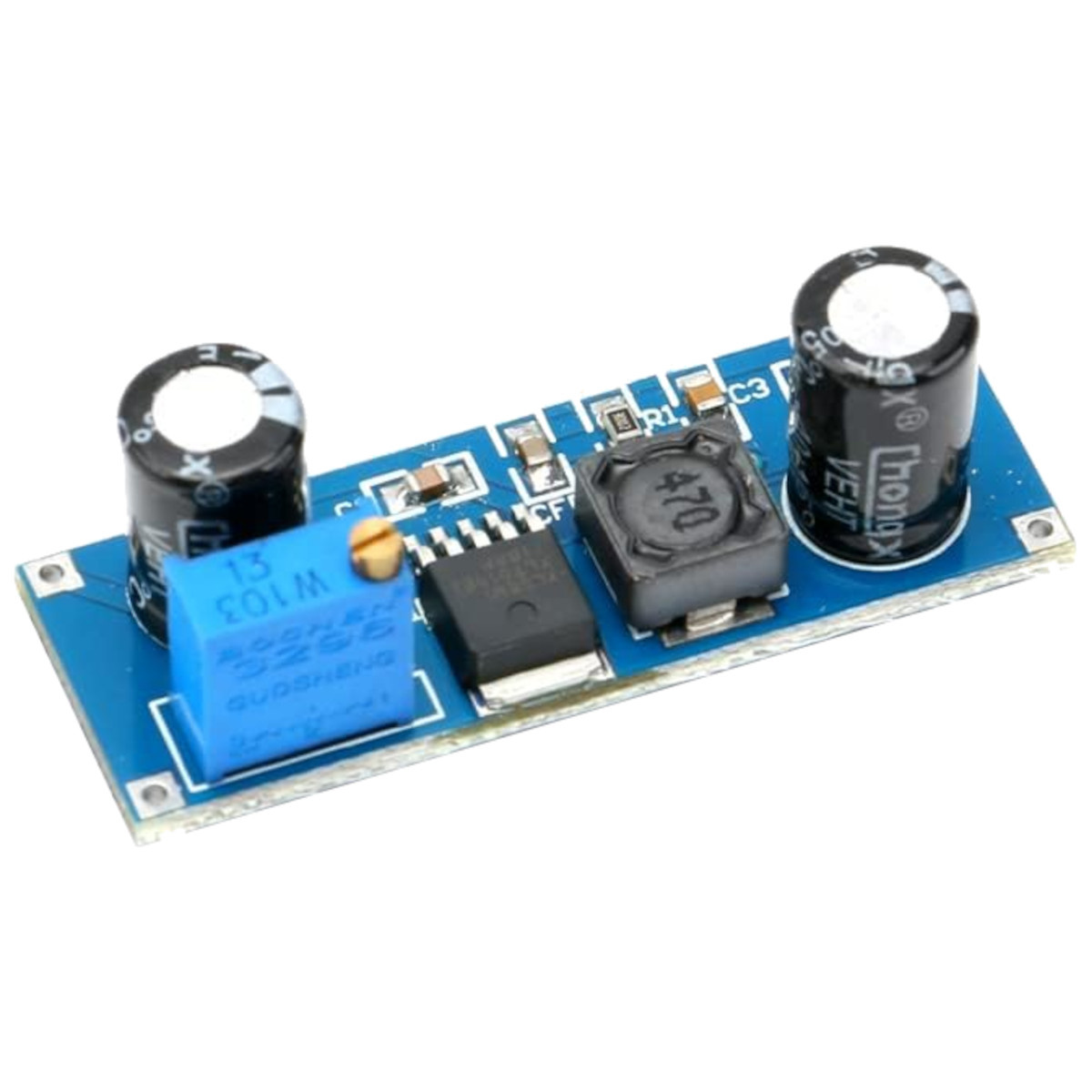

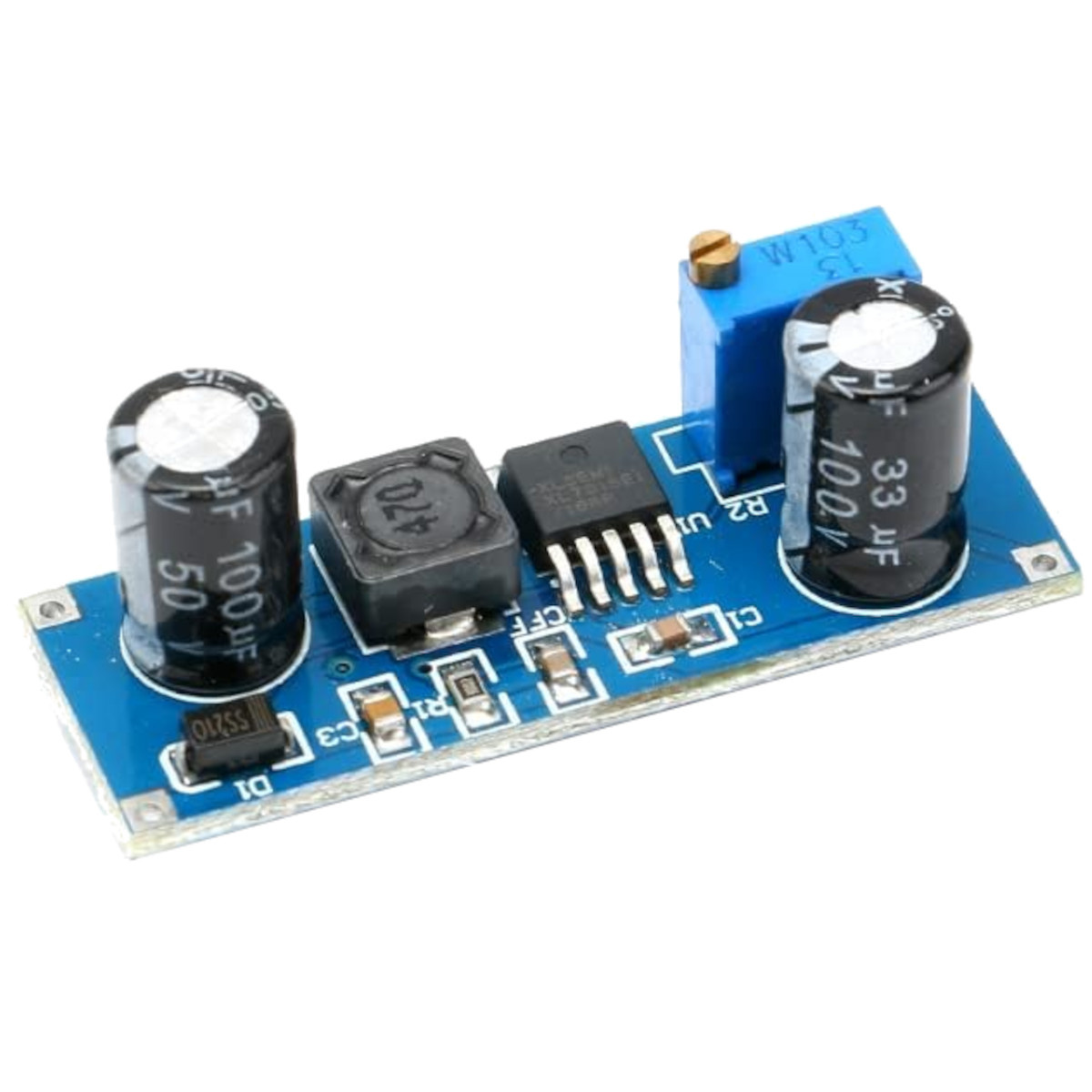

XL7015 DC-DC Step-Down Buck Converter Module 5V-80V (Adjustable Voltage Regulator)

The XL7015 DC-DC Step-Down Buck Converter Module is a high-efficiency switching voltage regulator designed to convert 5V to 80V DC input into a stable, adjustable lower DC output. Based on the XL7015 buck converter IC, the module provides reliable voltage regulation with low power loss, making it suitable for industrial equipment, battery-powered systems, embedded electronics, and automation applications.

Its wide input voltage range allows it to operate from high-voltage DC sources while delivering an adjustable output for powering microcontrollers, sensors, LED lighting, control systems, and other low-voltage electronic devices. The compact PCB design and built-in protection features make it easy to integrate into a variety of projects.

Key Features -

• Based on the XL7015 high-efficiency buck converter IC

• Wide input voltage range from 5V to 80V DC

• Adjustable DC output voltage

• High conversion efficiency up to 85%

• Stable and reliable voltage regulation

• Compact PCB module design

• Low heat generation with switching regulation

• Over-temperature protection

• Short-circuit protection

• Suitable for industrial and embedded power applications

Specifications -

• Product type - DC-DC Step-Down Buck Converter Module

• Regulator IC - XL7015

• Conversion type - Buck (Step-Down) Converter

• Input voltage - 5V to 80V DC

• Output voltage - Adjustable 5V to 20V DC

• Maximum output current - Up to 0.8A

• Conversion efficiency - Up to 85%

• Switching frequency - 150kHz

• Regulation type - Switching Voltage Regulator

• Operating temperature - -40C to +85C

• Mounting type - PCB Module

Applications -

• Industrial control systems

• Arduino and ESP32 power supplies

• PLC and automation equipment

• LED lighting systems

• Battery-powered electronics

• Embedded system development

• IoT devices

• Instrumentation and control circuits

• Portable electronic equipment

• DIY electronics projects
