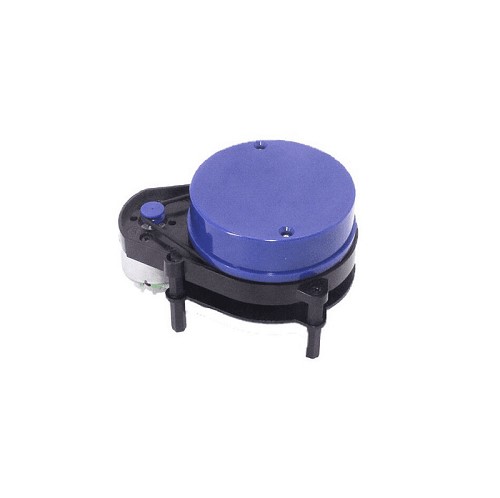

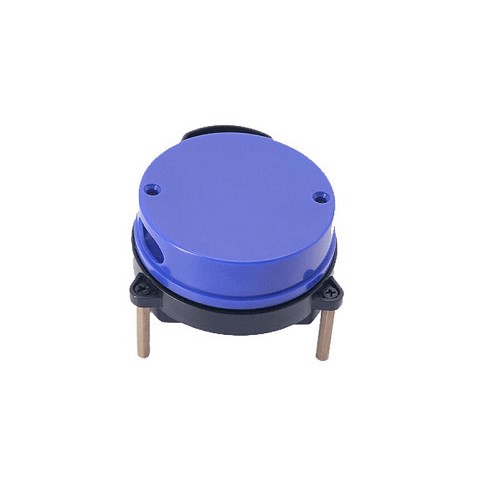

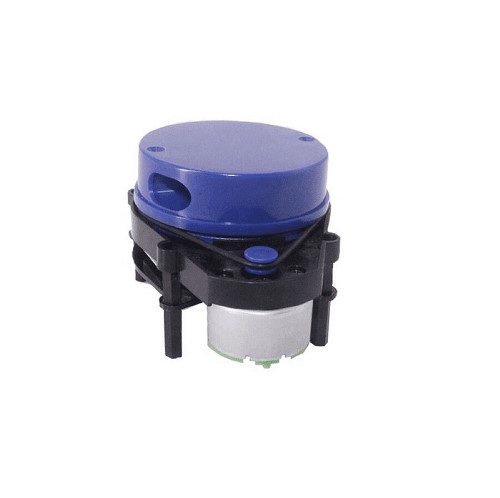

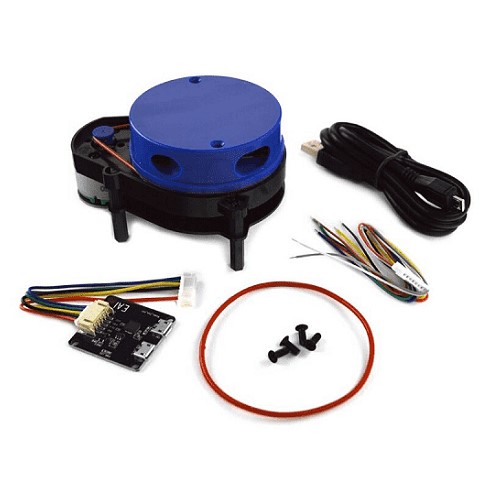

YDLIDAR X4 360 Degree LIDAR Laser Radar Scanner Module (8m Range)

The YDLIDAR X4 LIDAR Laser Radar Scanner Module is a 360 degree laser scanning sensor designed for distance measurement, obstacle detection, and two dimensional environmental mapping. It continuously scans the surrounding area and provides distance measurements that can be used for navigation and spatial awareness.

The module is suitable for autonomous robots, SLAM applications, obstacle avoidance, indoor mapping, navigation systems, and embedded robotics projects. Its compact design and serial communication interface allow integration with single board computers, embedded systems, and robotics platforms.

Key Features -

• 360 degree laser scanning

• Distance measurement up to 8m

• Real time environmental scanning

• Suitable for obstacle detection and avoidance

• Supports SLAM and mapping applications

• Adjustable scanning frequency

• Compact and lightweight design

• Suitable for robotics and autonomous navigation

Specifications -

• Model = YDLIDAR X4

• Sensor Type = 360 degree LIDAR laser scanner

• Operating Voltage = 5V DC

• Scanning Range = 0.12-8m

• Scan Frequency = 5-12Hz adjustable

• Angular Resolution = 1 degree

• Communication Interface = USB / TTL

• Measurement Accuracy = ±2 percent typical

• Operating Temperature = -10 to 50 C

• Module Size = Approx. 60 x 60 x 45mm

Applications -

• Autonomous robots

• Obstacle detection and avoidance

• SLAM mapping systems

• Indoor navigation

• Autonomous vehicle projects

• Smart mapping systems

• Robotics research and development

• Environmental scanning
