YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 5V-48V

The YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module is designed to provide seamless power switching between main supply and backup lithium battery during power failure conditions. It ensures uninterrupted power delivery to connected loads.

The module supports a wide DC input voltage range from 5V to 48V and can handle load current up to 10A. It is suitable for backup power systems, routers, embedded devices, security systems, and industrial control equipment.

Key Features

• Automatic power failure switching
• Supports lithium battery backup
• Wide input voltage range 5V to 48V
• Maximum load current up to 10A
• Fast switching response
• Suitable for DC backup systems

Specifications

• Input Voltage = DC 5V - 48V
• Maximum Load Current = 10A
• Working Temperature = -25 - 85 C
• Battery Type = Lithium battery
• Switching Type = Automatic standby switching

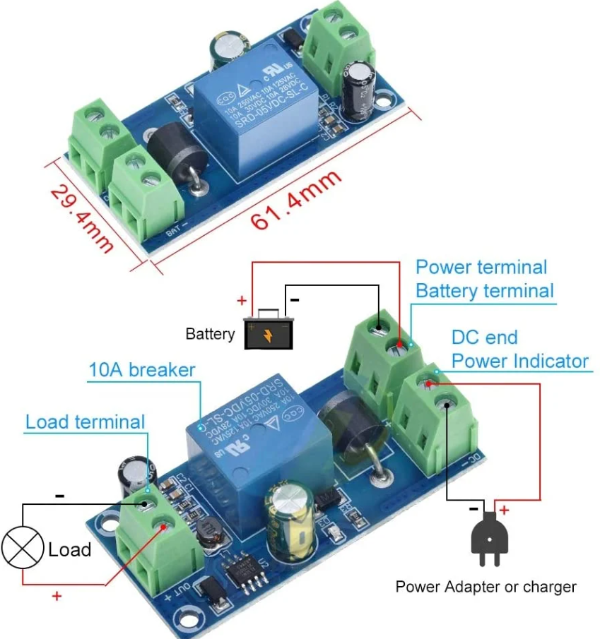

Interfaces

• VIN Plus = Main power input positive
• VIN Minus = Main power ground
• BAT Plus = Battery positive
• BAT Minus = Battery ground
• OUT Plus = Output to load positive
• OUT Minus = Output to load ground
