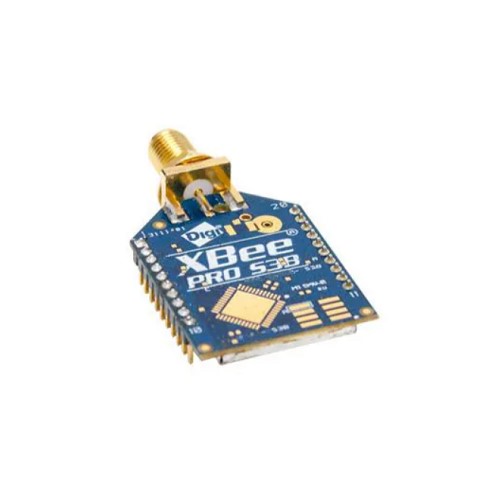

Zigbee XBee PRO S3B Module 24 dBm Output Power 902 MHz to 928 MHz XBP9B-DMST-0002
The Zigbee XBee PRO S3B Module is a high performance wireless communication module designed for long range data transmission in industrial and IoT applications. It operates in the 902 MHz to 928 MHz ISM band and provides up to 24 dBm RF output power for reliable communication over extended distances.
This module supports mesh and point to multipoint networking using the Zigbee protocol. It is commonly used in wireless sensor networks, remote monitoring systems, industrial automation, and embedded wireless communication systems. The module is designed in the standard XBee form factor for easy integration with development boards and microcontroller platforms such as Arduino/ESP32/Raspberry Pi.
Key Features
- 24 dBm high power RF output for long range communication
- Operates in 902 MHz to 928 MHz ISM frequency band
- Supports Zigbee mesh networking and point to multipoint communication
- Standard XBee footprint for easy integration
- Suitable for industrial wireless sensor networks
- Reliable wireless communication for IoT and automation systems
- Compatible with Arduino/ESP32/Raspberry Pi through XBee interface boards
Specifications
- Module Type = Zigbee XBee PRO S3B
- Model Number = XBP9B-DMST-0002
- Frequency Band = 902 MHz to 928 MHz
- RF Output Power = 24 dBm
- Network Protocol = Zigbee
- Data Interface = UART serial
- Form Factor = Standard XBee module
- Application = Wireless sensor network and IoT communication
Interfaces
- VCC = Power supply input
- GND = Ground
- DIN = Serial data input
- DOUT = Serial data output
- RTS = Request to send control
- CTS = Clear to send control
- RESET = Module reset input
