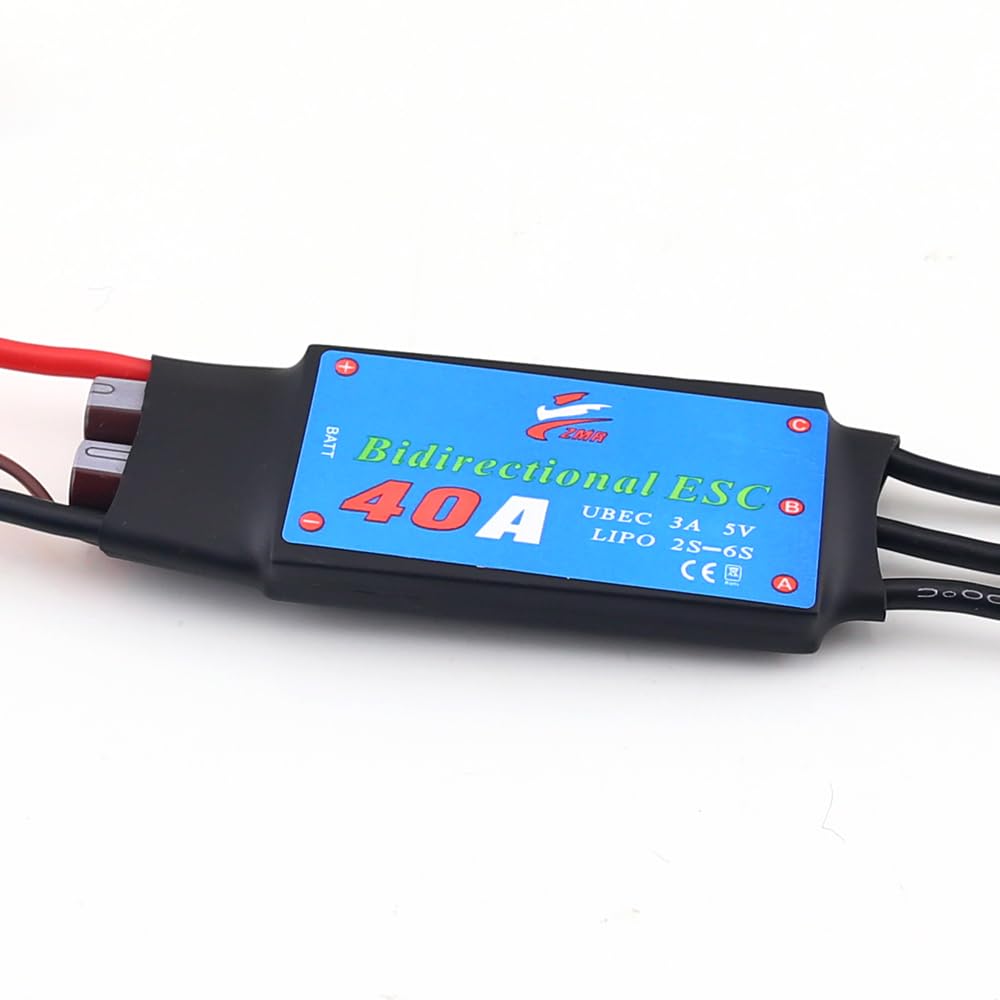

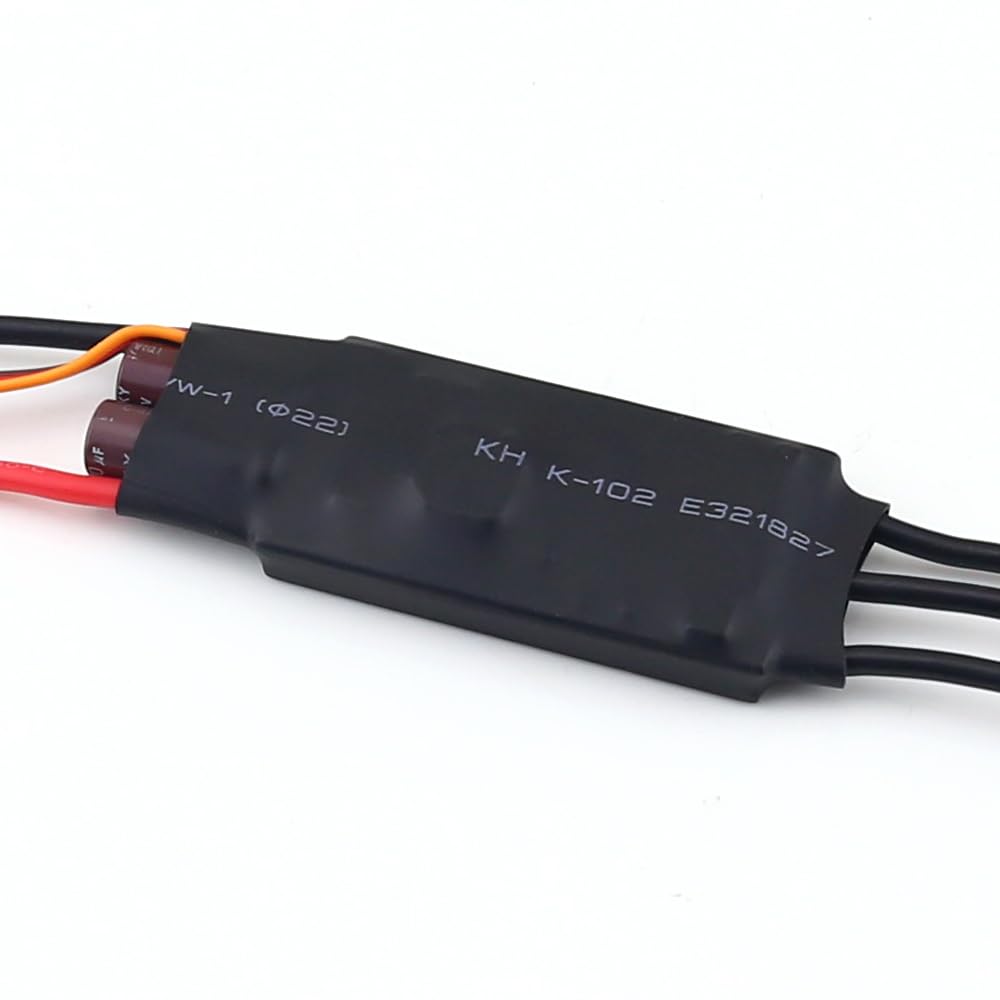

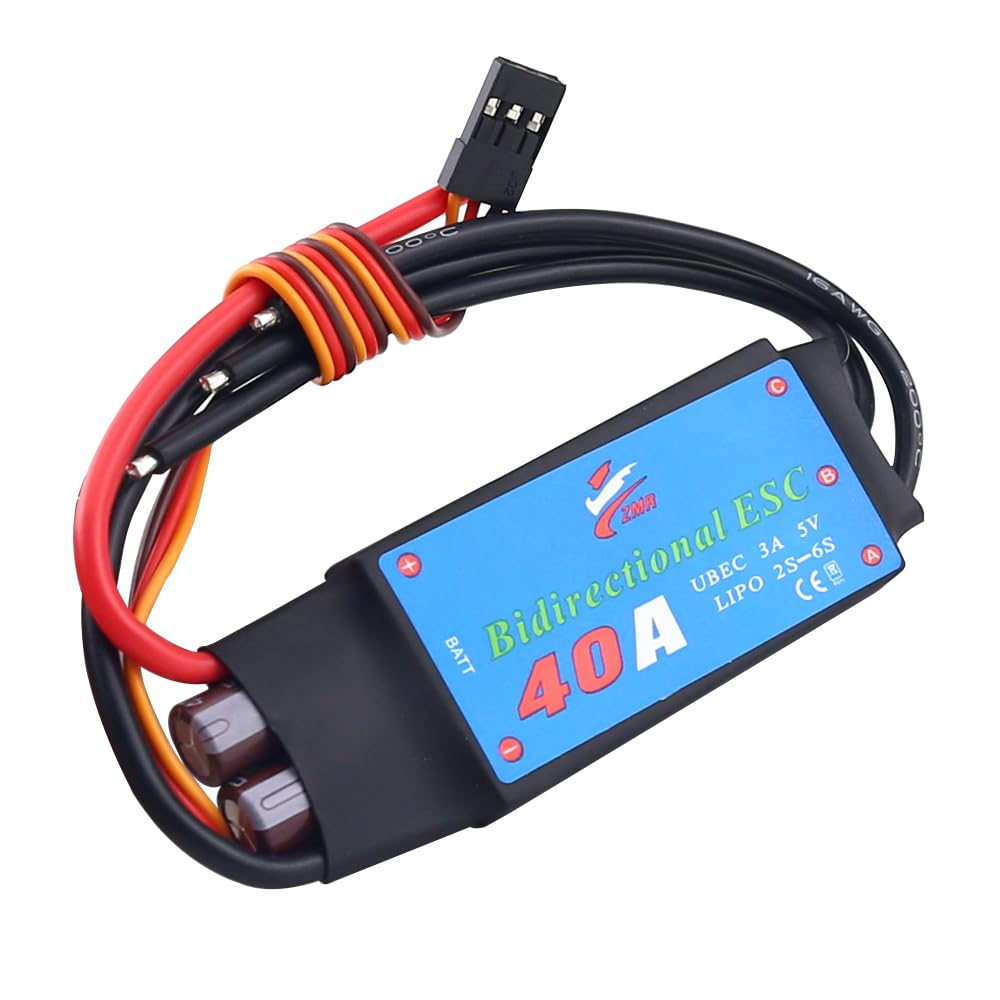

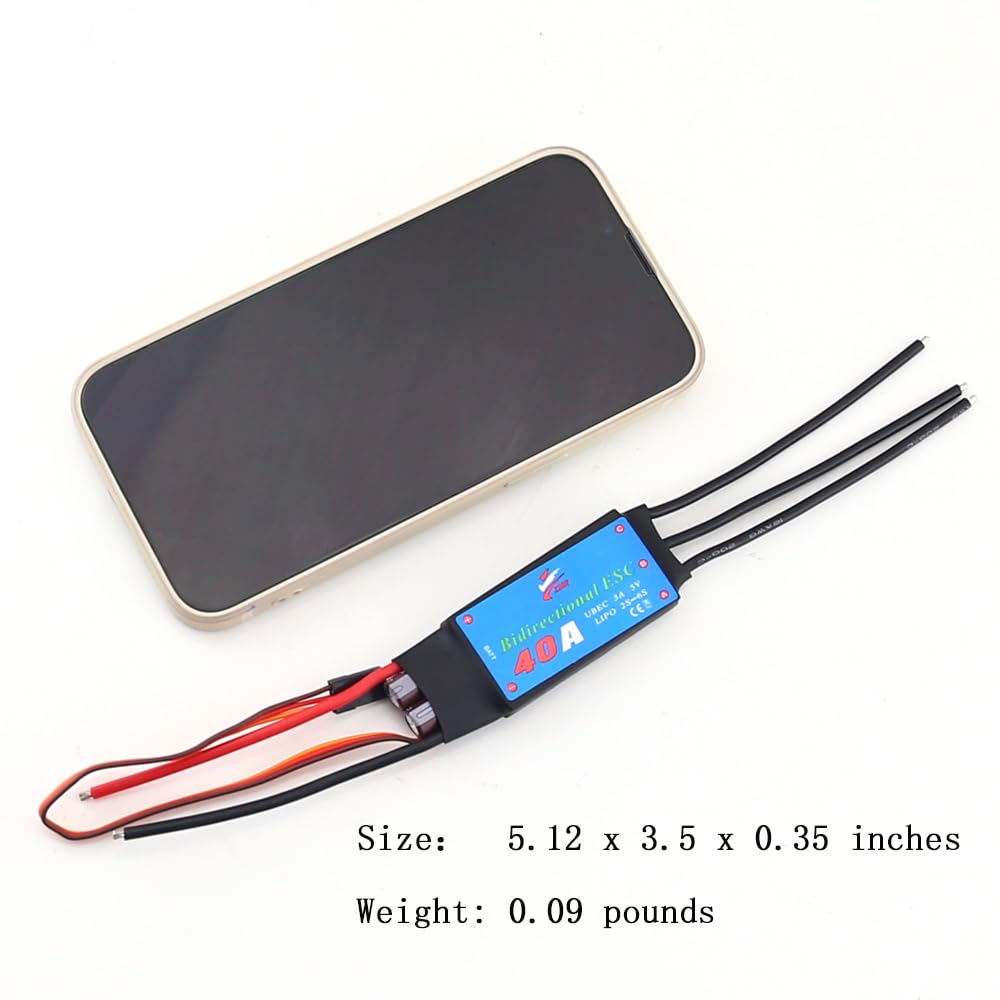

ZMR 40A Bidirectional Brushless 2-6S UBEC 3A 5V ESC for Remote Control Car Pneumatic Underwater Propeller

The ZMR 40A Bidirectional Brushless ESC is designed to control brushless DC motors in RC vehicles, underwater propellers and robotics applications. It supports bidirectional motor control which allows forward and reverse rotation, making it suitable for RC cars, boats and underwater propulsion systems.

This ESC supports 2-6S lithium battery input and includes an integrated UBEC that provides a stable 5V output with up to 3A current for powering receivers or control electronics. The compact design and reliable motor control make it suitable for remote control vehicles and embedded motion systems.

Key Features

• 40A brushless electronic speed controller
• Bidirectional motor control forward and reverse
• Supports 2-6S lithium battery input
• Built in UBEC 5V 3A output
• Suitable for RC cars boats and underwater propellers
• Smooth and reliable motor speed control
• Compact ESC design for RC applications

Specifications

• Model = ZMR 40A ESC
• Motor Type = Brushless DC motor
• Continuous Current = 40A
• Battery Support = 2-6S lithium battery
• UBEC Output Voltage = 5V
• UBEC Output Current = 3A
• Control Signal = PWM signal from receiver or controller
• Application = RC car/RC boat/underwater propulsion systems

Interfaces

• Battery Input + = Positive battery connection
• Battery Input - = Negative battery connection
• Motor Output A = Brushless motor phase connection
• Motor Output B = Brushless motor phase connection
• Motor Output C = Brushless motor phase connection
• Servo Connector Signal = PWM control signal input
• Servo Connector VCC = 5V UBEC output
• Servo Connector GND = Ground connection
