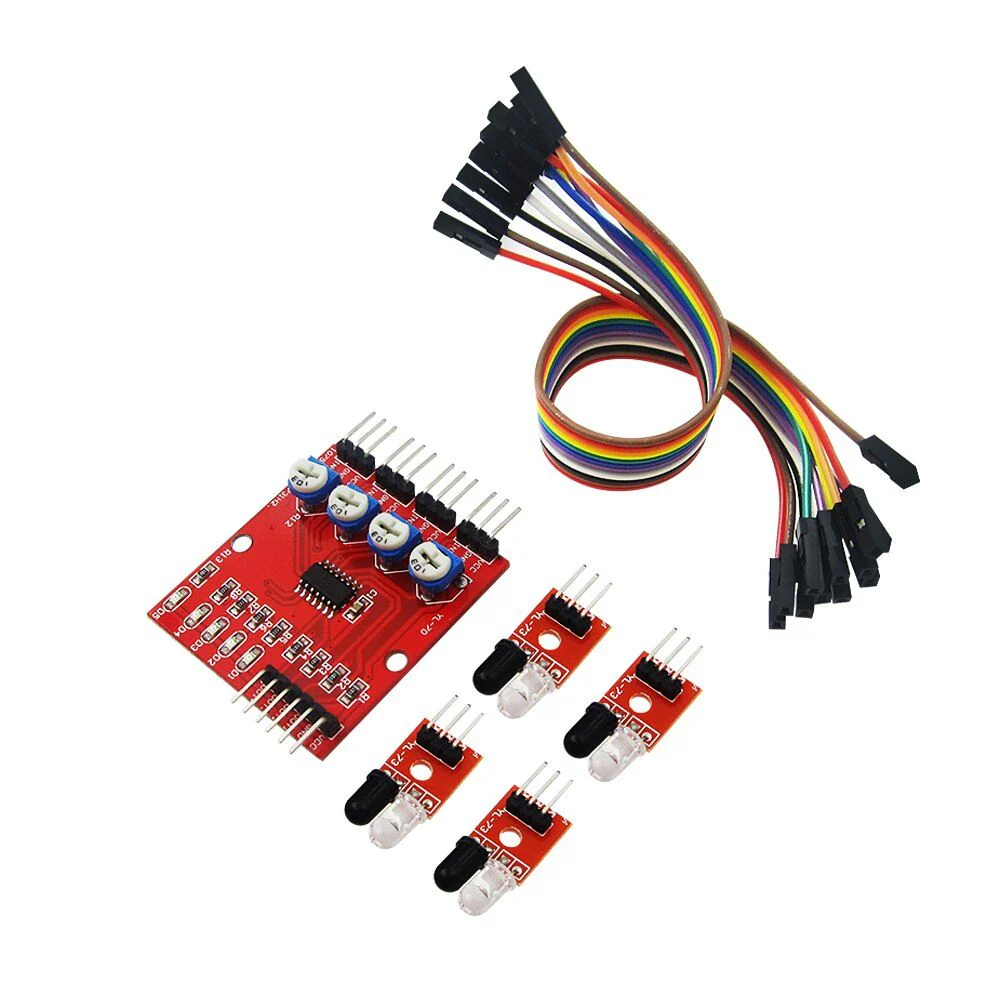

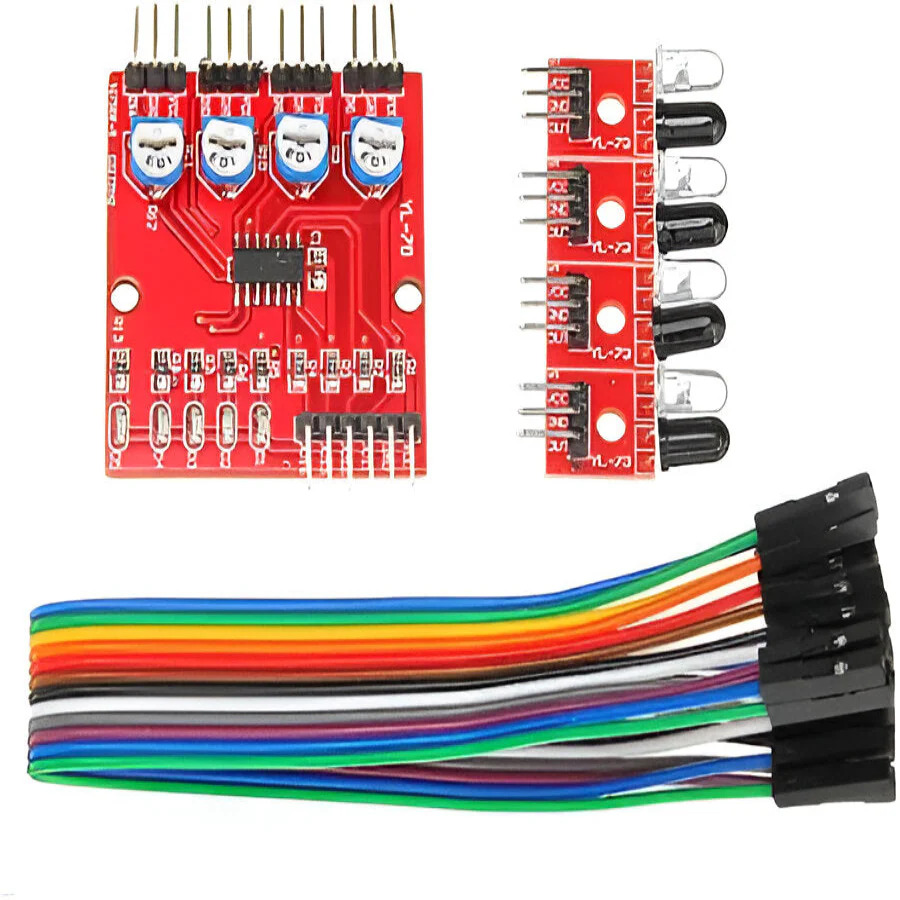

4 Way IR Line Tracking / Following Sensor Module

The 4 Way IR Line Tracking / Following Sensor Module is a compact optical sensing board designed for line detection and tracking applications in robotics and automation systems. It uses four infrared LED and photodiode pairs to detect contrast differences on surfaces such as black lines on white backgrounds. Each sensor channel outputs a digital or analog signal depending on reflectivity, allowing precise edge and line detection for line following robots.

This module is ideal for educational robotics, maze solving bots, and autonomous vehicles requiring real-time path tracking. Its easy to interface pins and adjustable potentiometers for sensitivity tuning make it suitable for microcontroller integration with Arduino, ESP, PIC, and other embedded platforms.

KEY FEATURES

• 4 independent IR tracking sensors
• Digital or analog output signals
• Adjustable sensitivity via potentiometers
• Fast response for real time line following
• Compact board with mounting holes
• Easy integration with microcontrollers
• Ideal for line tracking and robotics projects

SPECIFICATIONS

• Number of Channels 4
• Sensor Type Infrared LED and photodiode pairs
• Output Type Digital / analog (depending on model)
• Operating Voltage 3.3V to 5V DC
• Detection Range Few millimeters above surface
• Response Time Fast optical detection
• Board Material FR4 PCB

INTERFACES

• VCC Power supply
• GND Ground
• OUT1 Sensor 1 output
• OUT2 Sensor 2 output
• OUT3 Sensor 3 output
• OUT4 Sensor 4 output
