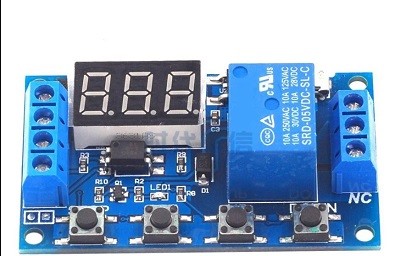

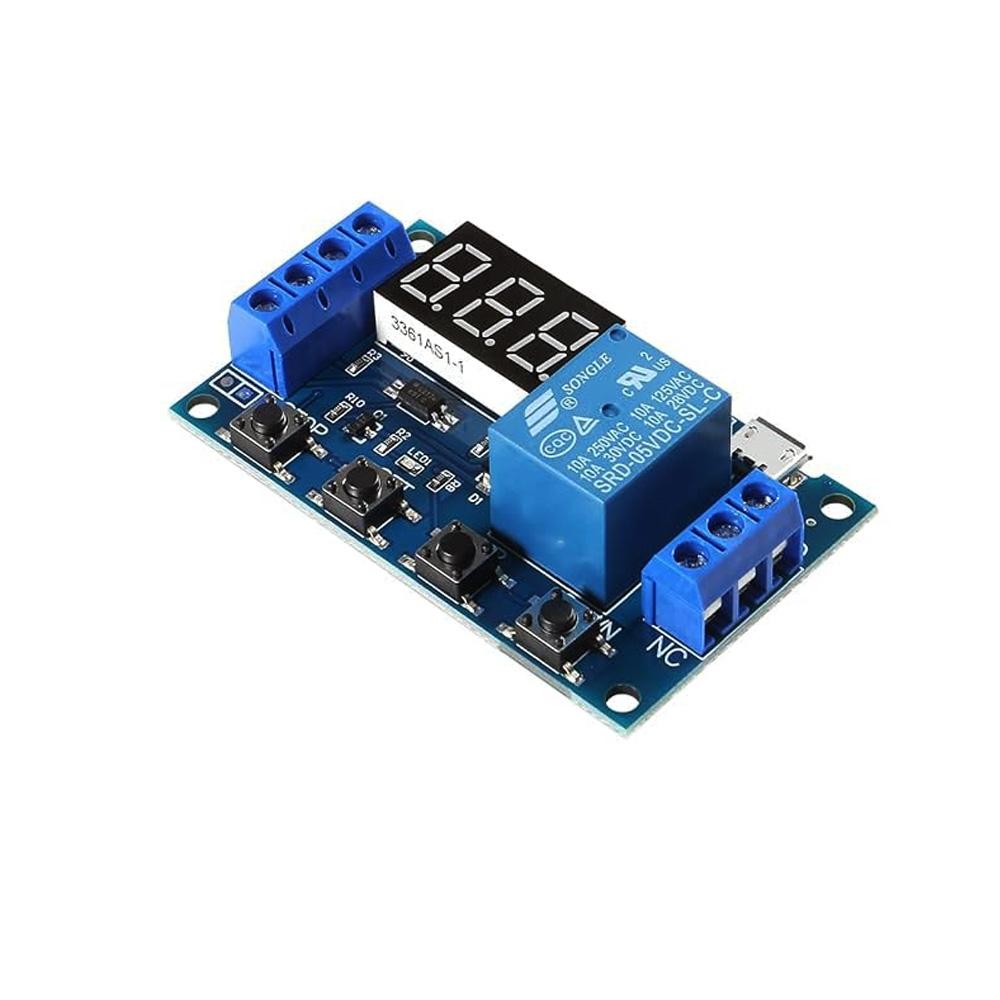

6-30V 1-Channel Power Relay Module With Adjustable Timing Cycle

The 6-30V 1-Channel Power Relay Module With Adjustable Timing Cycle is a multifunction delay control board designed for automatic switching of electrical loads. It supports wide input voltage range from 6V to 30V DC and provides configurable timing and cycle modes for flexible automation applications.

This module is suitable for motor control lighting systems battery charging control pumps and industrial automation tasks. With onboard digital control and adjustable parameters it enables delay on delay off cycle timing and repeat trigger operations for reliable system control.

KEY FEATURES

• Wide operating voltage range 6V to 30V DC
• Single channel relay output
• Adjustable delay and cycle timing modes
• Repeat trigger and loop control support
• Digital parameter configuration
• Stable and reliable relay switching
• Suitable for automation and industrial use

SPECIFICATIONS

• Operating Voltage - 6V to 30V DC
• Trigger Voltage - 3V to 24V compatible
• Timing Range - 0.1 second to 999 minutes adjustable
• Relay Type - Electromechanical relay
• Relay Capacity - 10A at 250V AC
• Control Modes - Delay on delay off cycle repeat
• Standby Current - Low power consumption
• Operating Temperature - -20 to +70 degree C
• Mounting Type - PCB module

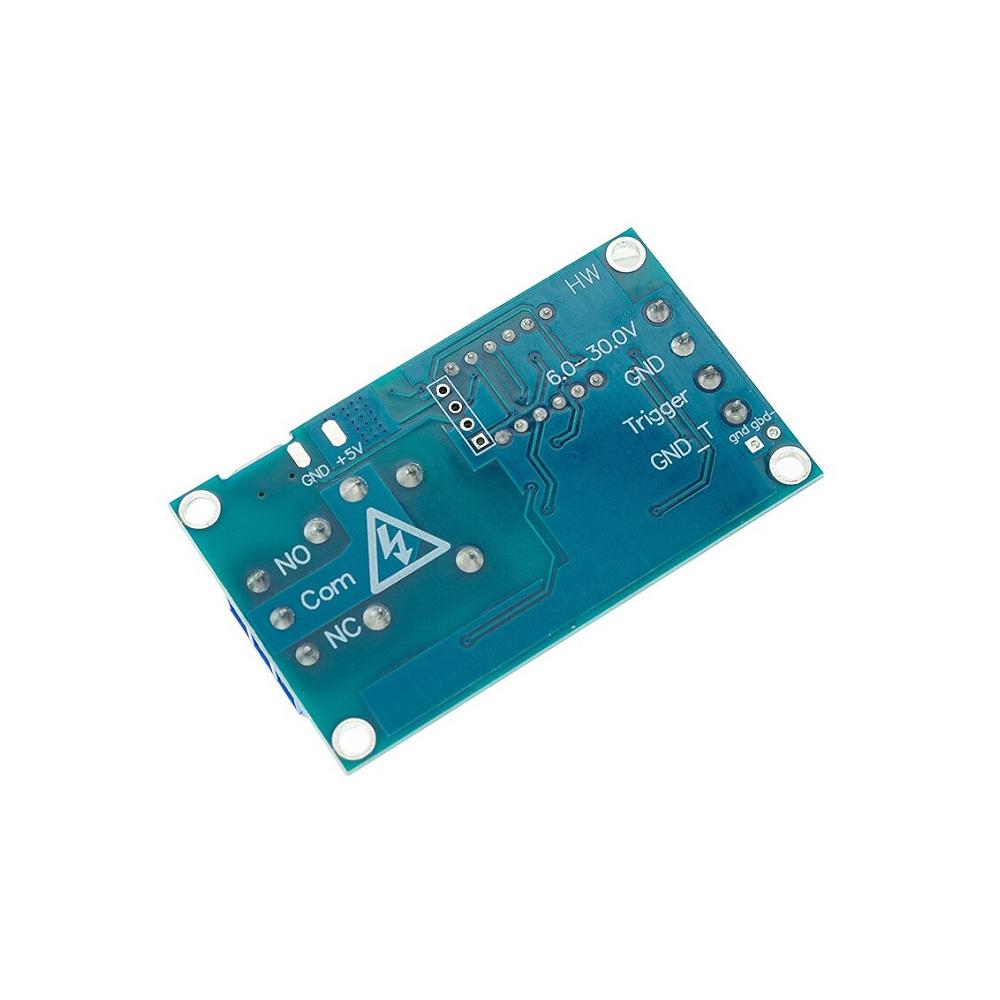

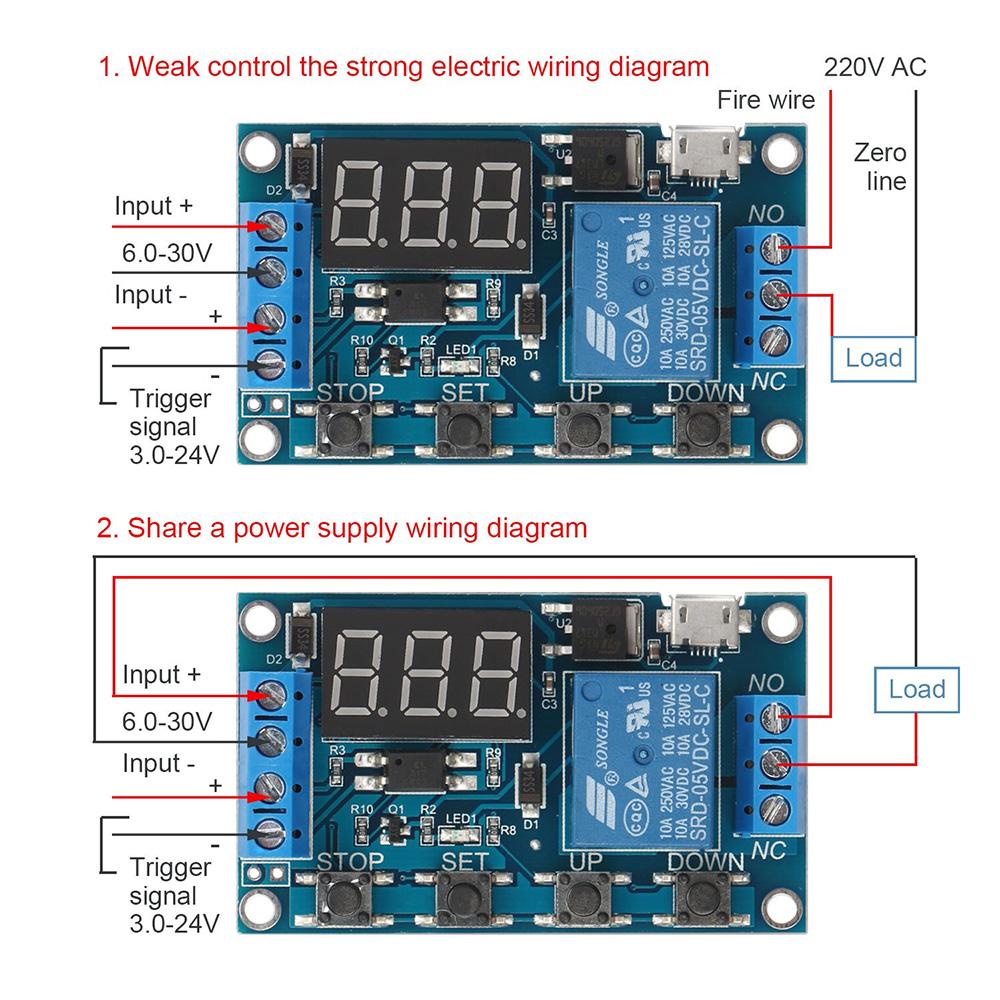

INTERFACES

• VCC - DC power input positive
• GND - Ground connection
• TRIG - External trigger input
• RELAY COM - Common contact
• RELAY NO - Normally open contact
• RELAY NC - Normally closed contact
• KEY - Parameter setting buttons
• DISPLAY - Digital timing display
