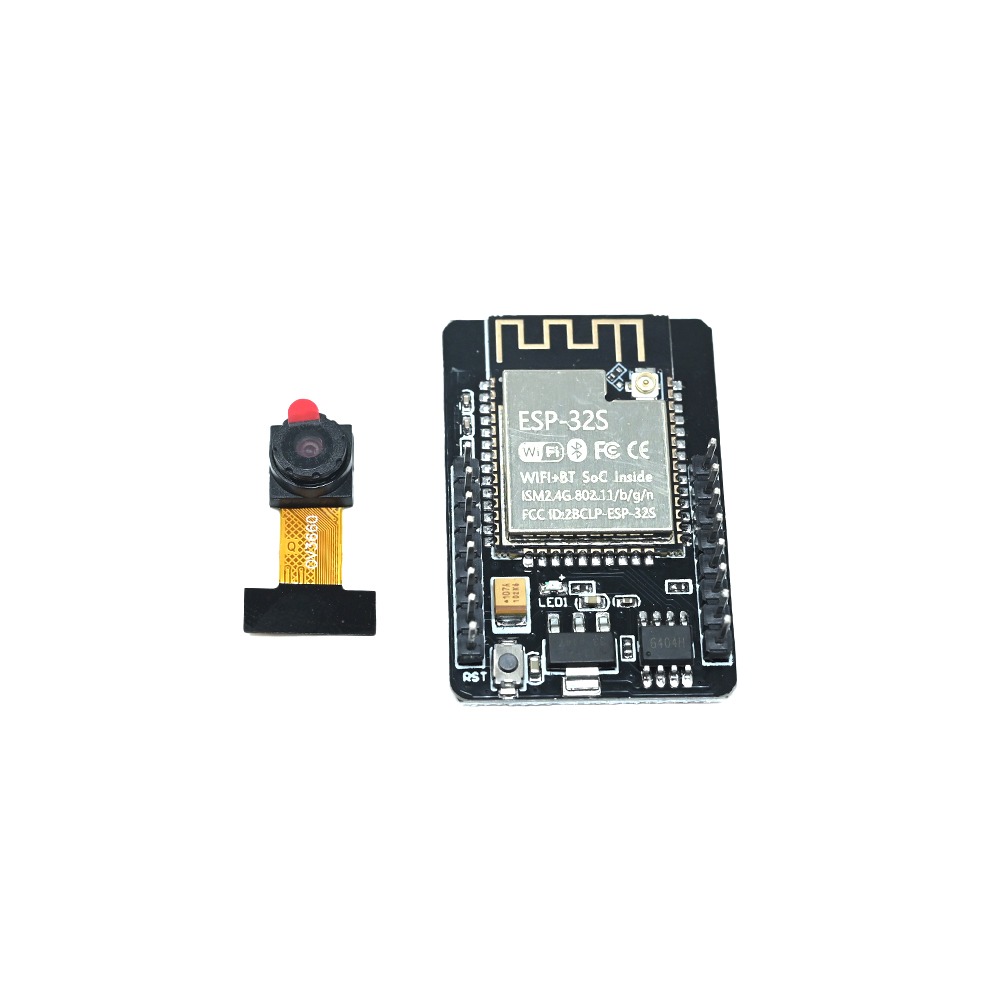

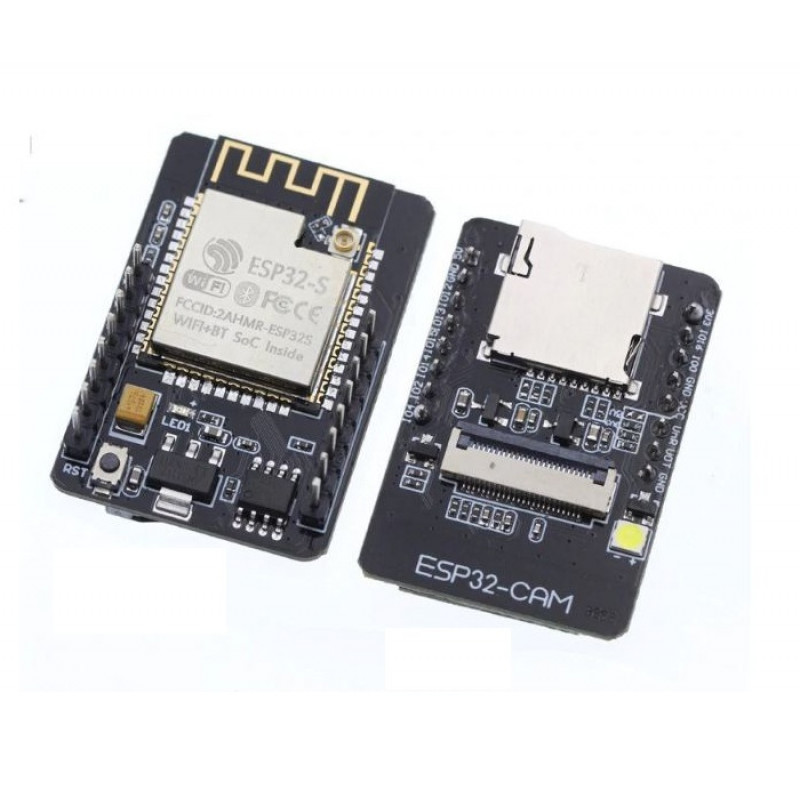

ESP32 CAM Wi-Fi Module Bluetooth With Camera Module

The ESP32 CAM Wi-Fi Module Bluetooth With Camera Module is a compact development board that integrates the ESP32 SoC with built in Wi-Fi and Bluetooth connectivity along with an onboard camera interface. It is designed for image capture video streaming and IoT based surveillance applications.

This module supports wireless communication and camera data processing in a small form factor suitable for smart home security remote monitoring face detection and embedded vision projects. It provides GPIO expansion and serial programming interface for flexible development.

KEY FEATURES

• Integrated ESP32 Wi-Fi and Bluetooth SoC
• Onboard camera module support
• Supports image capture and video streaming
• Compact and lightweight design
• Multiple GPIO expansion pins
• Suitable for IoT and surveillance projects
• Low power operation modes supported

SPECIFICATIONS

• Microcontroller - ESP32 dual core processor
• Wireless Connectivity - 2.4GHz Wi-Fi and Bluetooth
• Camera Resolution - 2MP typical OV2640
• Operating Voltage - 5V DC input
• Flash Memory - 4MB onboard
• GPIO Pins - Multiple programmable IO
• Communication - UART SPI I2C PWM
• Operating Temperature - -20 to +85 degree C
• Application - Wireless camera and IoT projects

INTERFACES

• 5V - Power supply input
• GND - Ground connection
• U0R - UART receive
• U0T - UART transmit
• GPIO - General purpose input output pins
• CAM Connector - Camera interface connection
• 3.3V - Regulated output
• EN - Chip enable control
