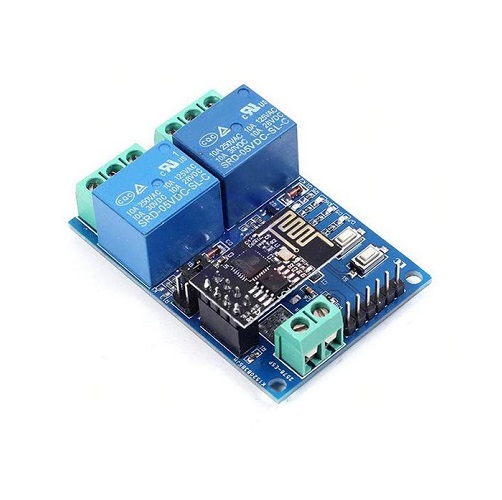

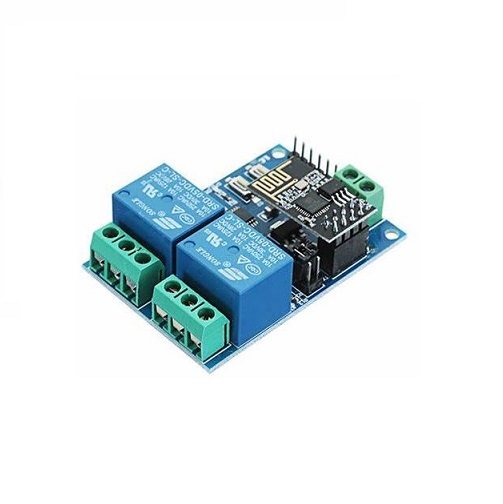

ESP8266 ESP 01 5V 2 Channels Wi Fi Relay Module Things Smart Home Remote Control Switch
The ESP8266 ESP 01 5V 2 Channels Wi Fi Relay Module is designed for wireless control of electrical devices through Wi Fi networks. It integrates an ESP 01 ESP8266 Wi Fi module with two relay outputs, allowing remote switching of connected loads using smart home applications or microcontroller based control systems.
This module is suitable for home automation, IoT control systems, and remote switching applications. It allows users to control lights, appliances, and other electrical equipment through Wi Fi communication. The module can be programmed using Arduino / ESP8266 development environments for custom automation projects.
Key Features
- Integrated ESP8266 ESP 01 Wi Fi module
- Two channel relay output for device control
- Wireless control through Wi Fi network
- Suitable for smart home automation projects
- Supports remote switching of electrical loads
- Compatible with Arduino / ESP8266 development platforms
- Compact module for embedded automation systems
Specifications
- Module Type = Wi Fi relay control module
- Wi Fi Chipset = ESP8266 ESP 01
- Operating Voltage = 5V
- Relay Channels = 2
- Communication Interface = Wi Fi
- Control Method = Wireless network control
- Application = Smart home automation and remote switching

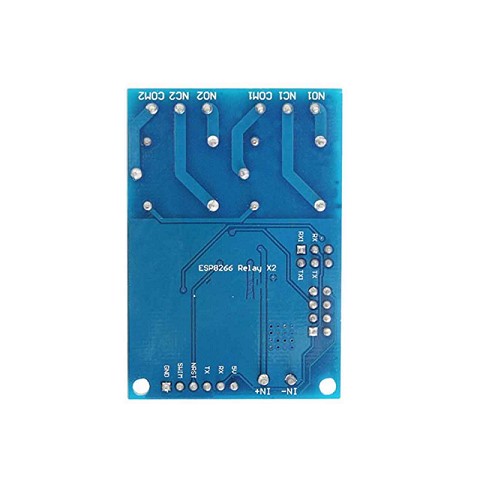

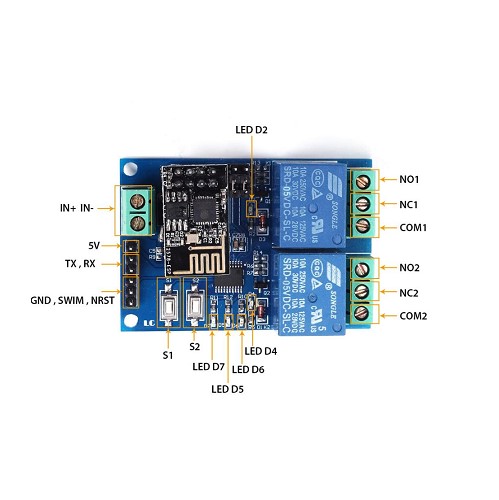

Interfaces
- VCC = 5V power supply input
- GND = Ground
- IN1 = Relay channel 1 control
- IN2 = Relay channel 2 control
- COM1 = Relay channel 1 common terminal
- NO1 = Relay channel 1 normally open terminal
- NC1 = Relay channel 1 normally closed terminal
- COM2 = Relay channel 2 common terminal
- NO2 = Relay channel 2 normally open terminal
- NC2 = Relay channel 2 normally closed terminal
