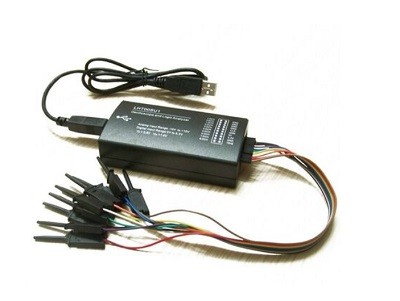

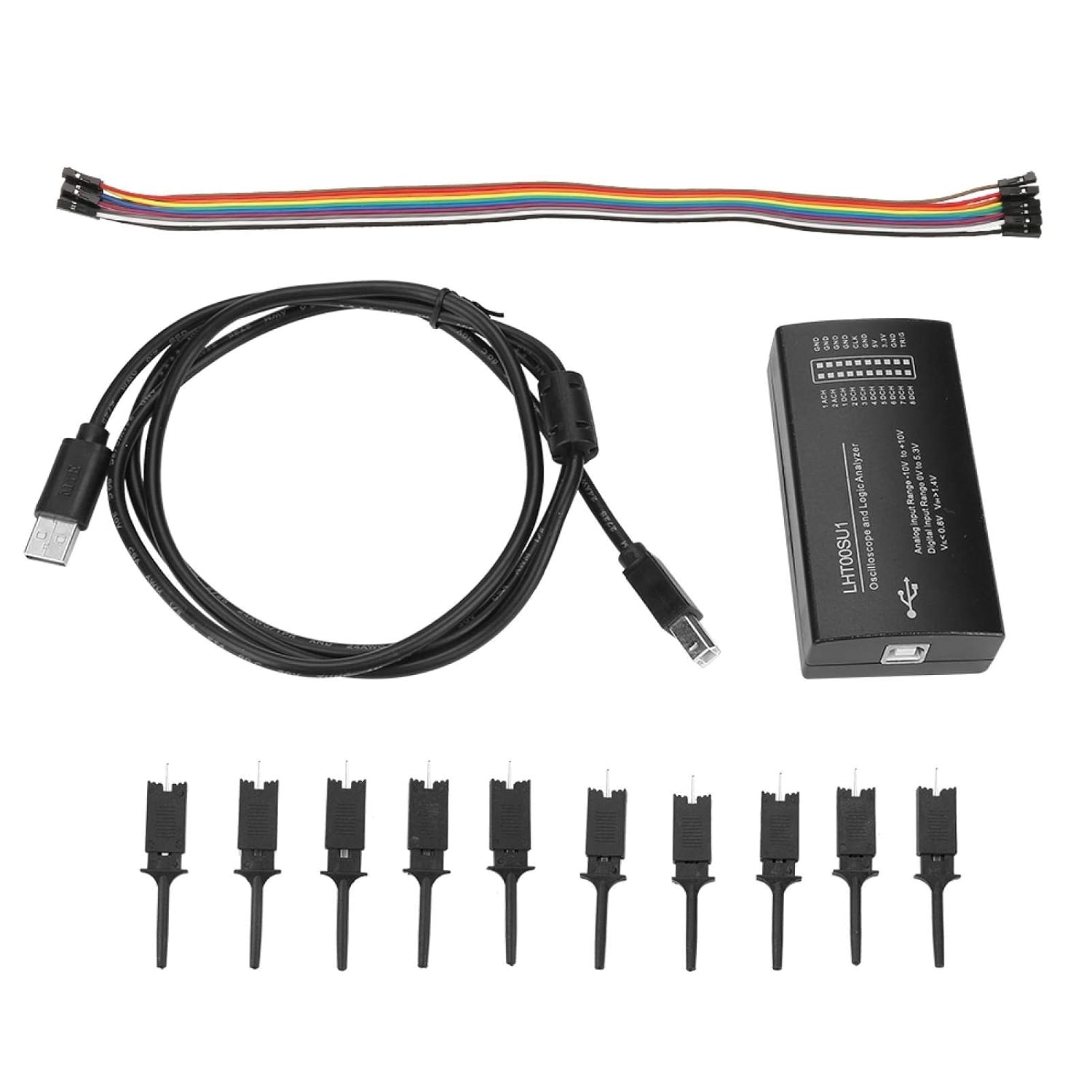

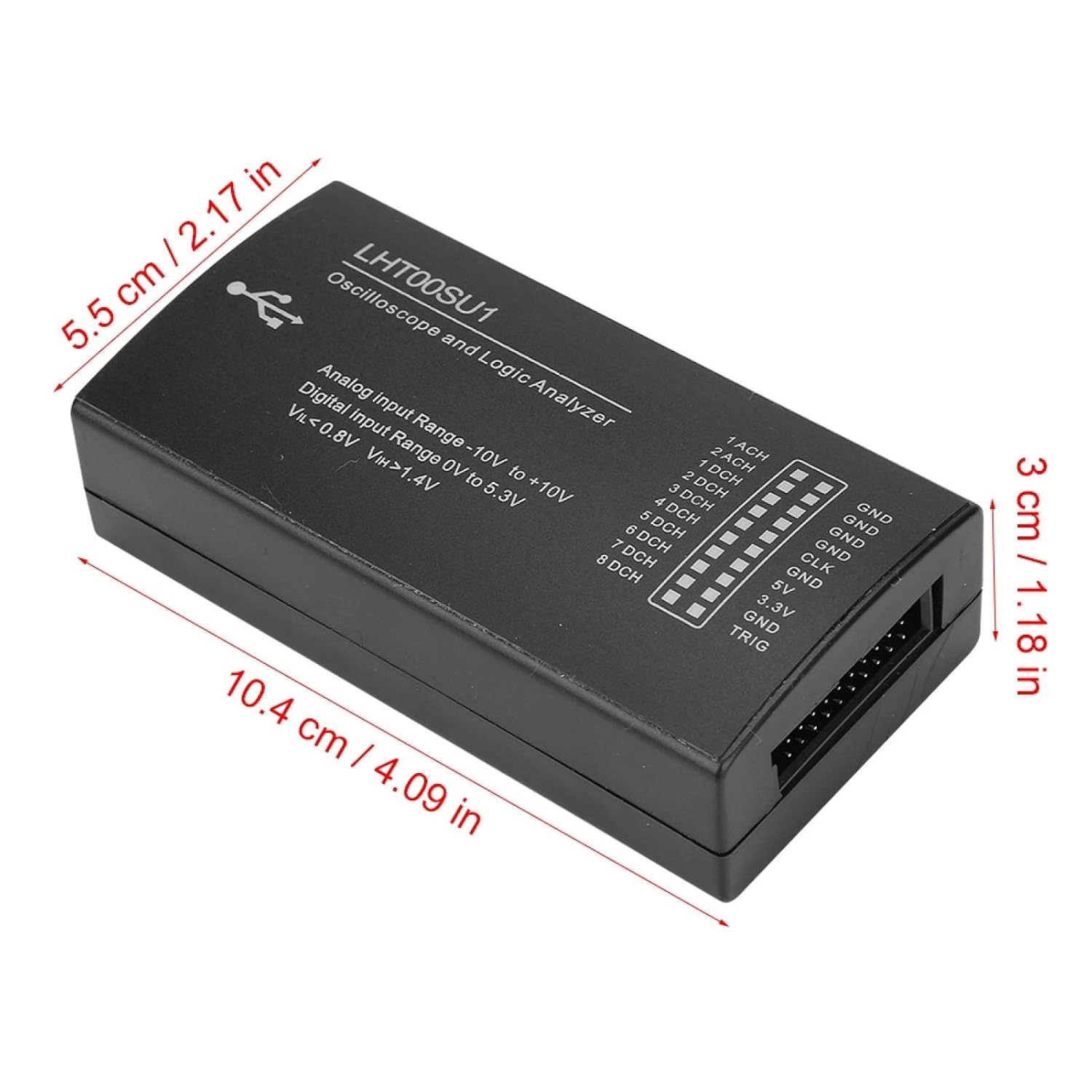

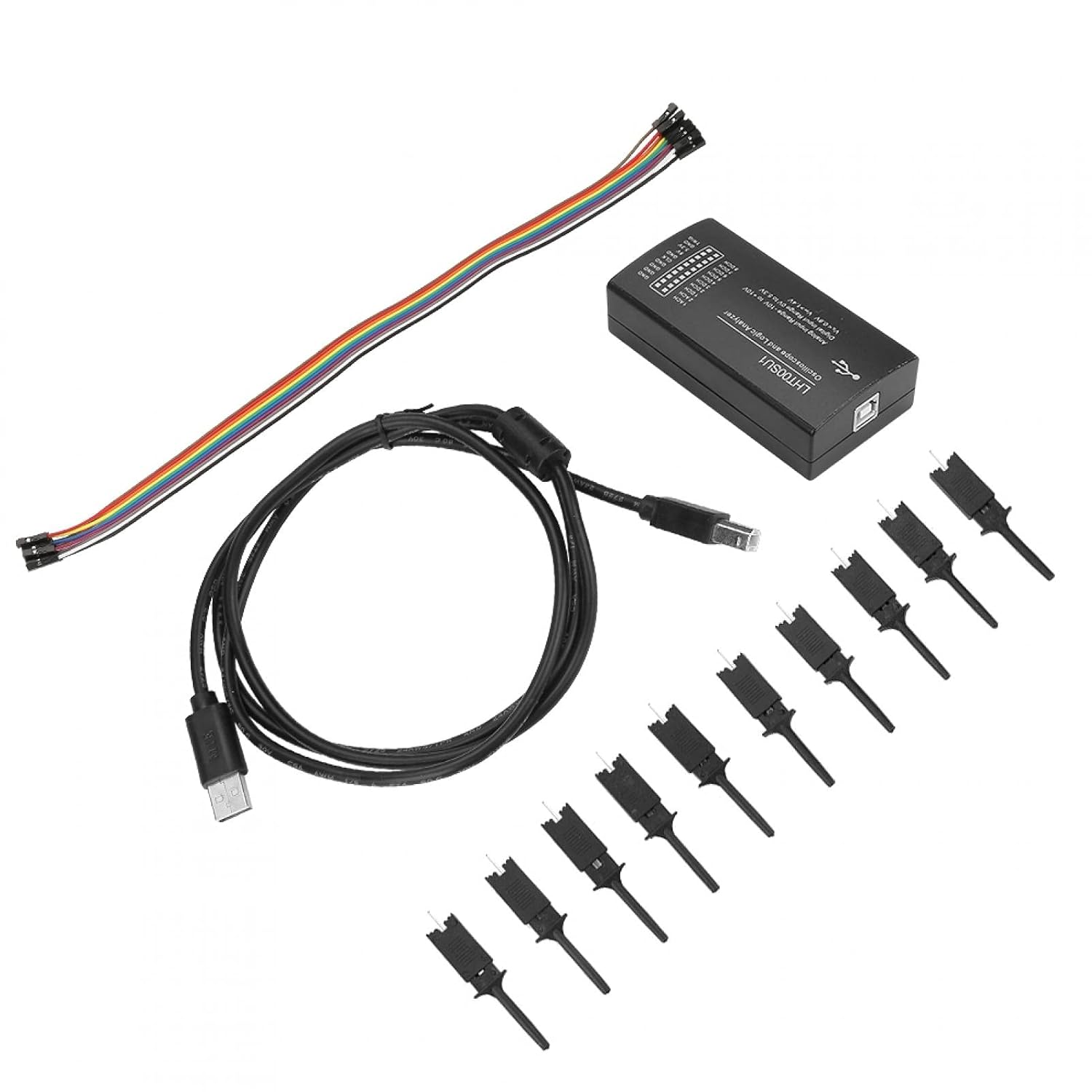

LHT00SU1 Virtual Oscilloscope Logic Analyzer Multifunctional (USB PC-Based Signal Analysis Tool)

The LHT00SU1 Virtual Oscilloscope Logic Analyzer is a compact USB-based measurement instrument that combines the functionality of a digital oscilloscope and logic analyzer in a single portable device. Connected to a PC or laptop, it captures both analog and digital signals and displays waveforms, timing diagrams, and logic states using dedicated software. Its multifunctional design makes it an ideal tool for electronics testing, embedded system development, digital circuit debugging, education, and laboratory applications.

Key Features -

• Multifunctional virtual oscilloscope and logic analyzer

• Captures both analog and digital signals

• USB interface for PC or laptop connectivity

• Software-based real-time waveform display

• Logic timing analysis for digital circuits

• Compact and portable design for easy transport

• USB powered with no external power supply required

• Suitable for embedded system debugging and testing

• Easy integration with PC-based measurement software

• Ideal for education, laboratory, and electronics development

Specifications -

• Product type - Virtual Oscilloscope and Logic Analyzer

• Model - LHT00SU1

• Functions - Oscilloscope and Logic Analyzer

• Channels - Supports Analog and Digital Channels

• Communication interface - USB

• Power supply - USB Powered

• Display - PC Software-Based Interface

• Sampling rate - Software and Hardware Dependent

• Package / Mounting type - Portable USB Measurement Device

Applications -

• Embedded system debugging

• Digital logic analysis

• Electronic circuit troubleshooting

• Signal waveform observation

• Microcontroller communication analysis

• Educational electronics laboratories

• Research and development projects

• DIY electronics and prototyping
