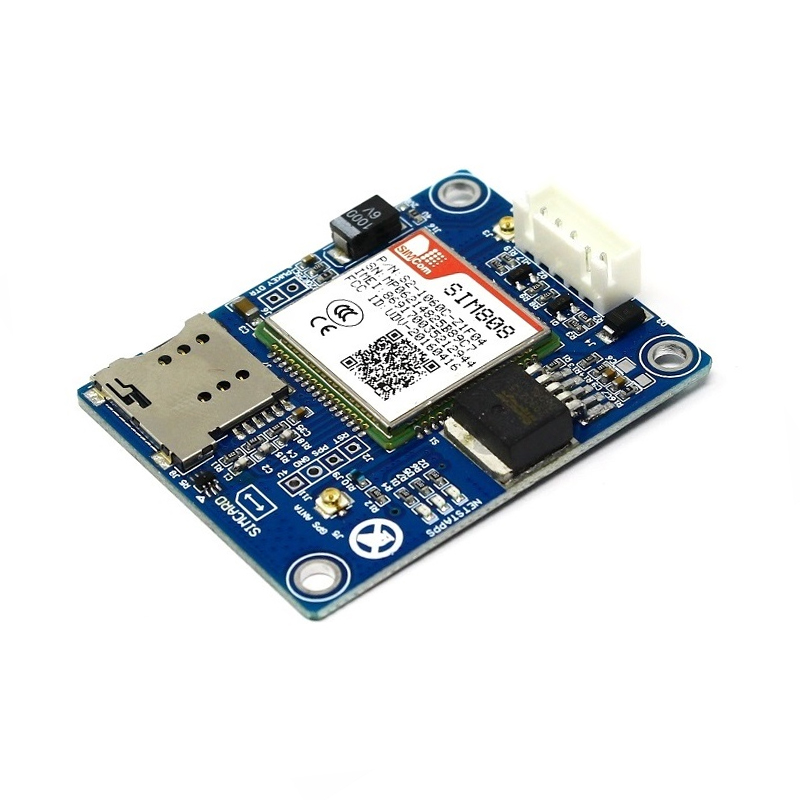

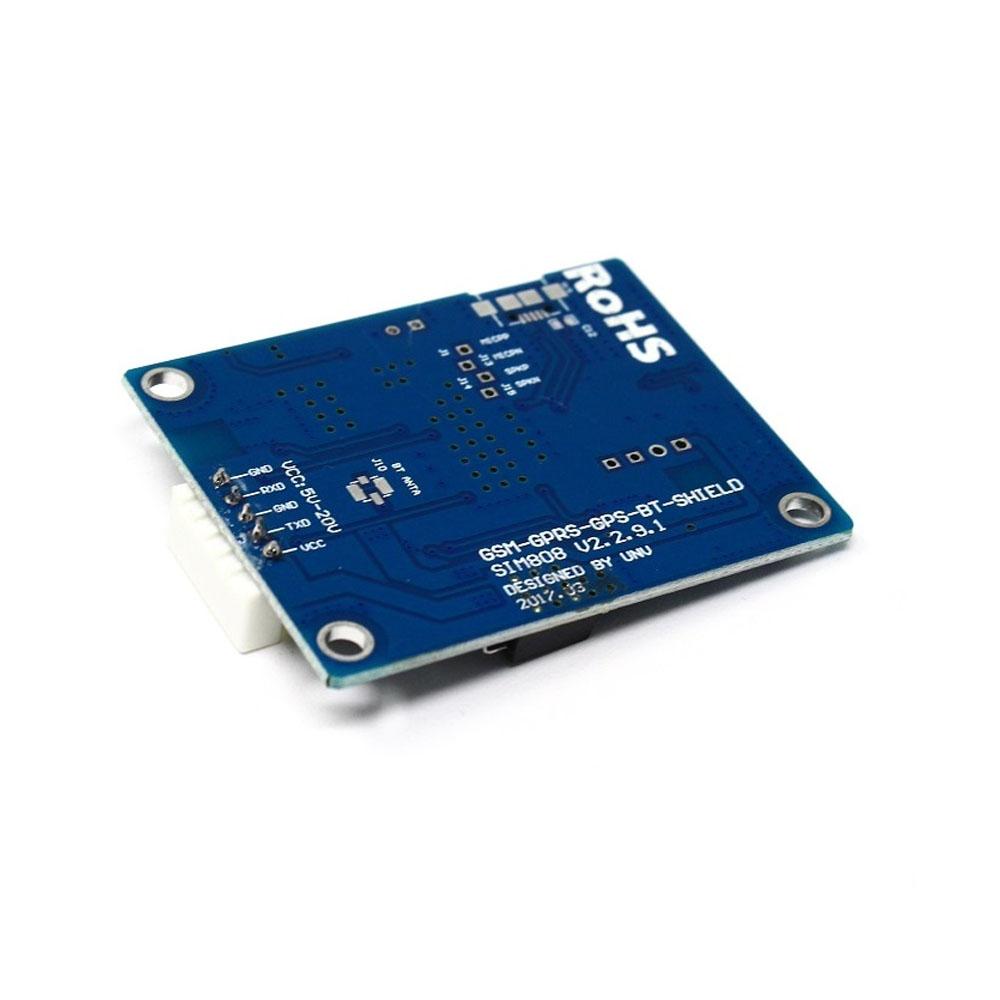

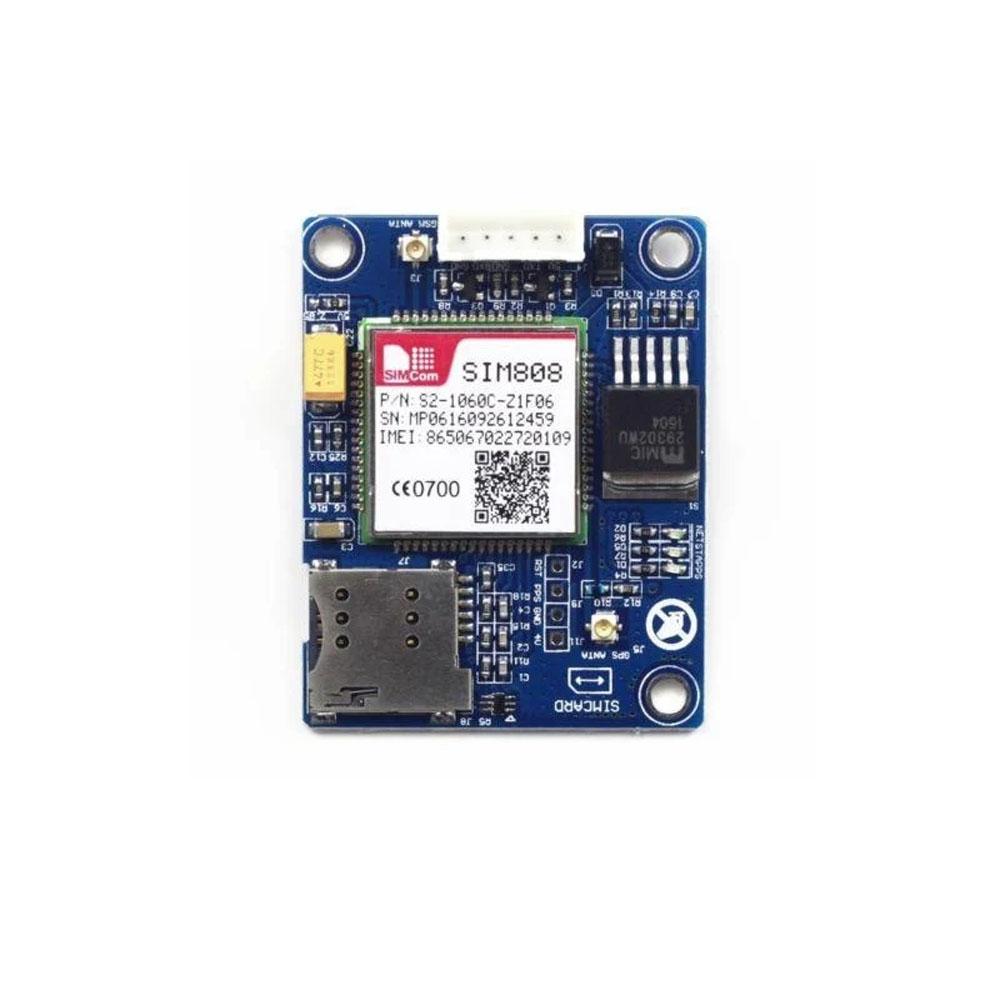

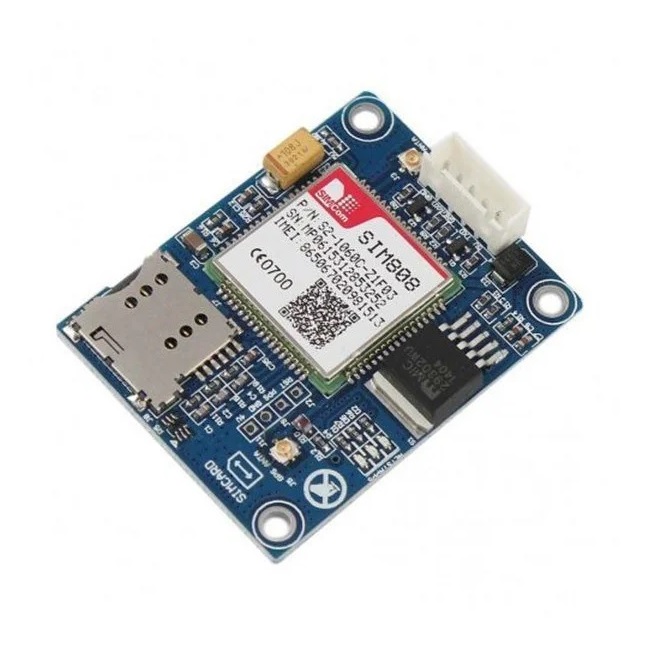

SIM808 Module GPS GSM GPRS Quad Band Development Board

The SIM808 Module GPS GSM GPRS Quad Band Development Board is an integrated communication board that combines quad-band GSM/GPRS cellular connectivity with GPS positioning capabilities. Designed as a development platform, it simplifies interfacing and prototyping with the SIM808 module. The board provides easy access to GSM, GPRS, GPS, and serial communication interfaces for embedded communication and tracking projects.

This development board is suitable for IoT applications, vehicle tracking systems, remote data terminals, and wireless monitoring solutions requiring reliable cellular and GPS functionality. Its accessible pin headers and standard connectors make it easy to connect sensors, microcontrollers, and power sources.

KEY FEATURES

• Quad band GSM/GPRS support
• Integrated GPS positioning
• Development board with accessible headers
• UART serial communication
• Supports SMS voice and data services
• Easy prototyping and interfacing
• Suitable for tracking and communication projects

SPECIFICATIONS

• GSM Frequency Bands 850 900 1800 1900 MHz
• GPRS Support Multi slot GPRS data
• GPS Receiver Onboard GNSS engine
• Communication Interface UART serial
• Operating Voltage Typical 3.4V–4.4V
• Board Format Development board with headers
• Control Method AT command set

INTERFACES

• UART TX RX Serial communication with host controller
• GSM Antenna Connector RF connection for cellular network
• GPS Antenna Connector RF connection for satellite reception
• Power Input Board DC supply input
• Header Pins General I/O and module connections
