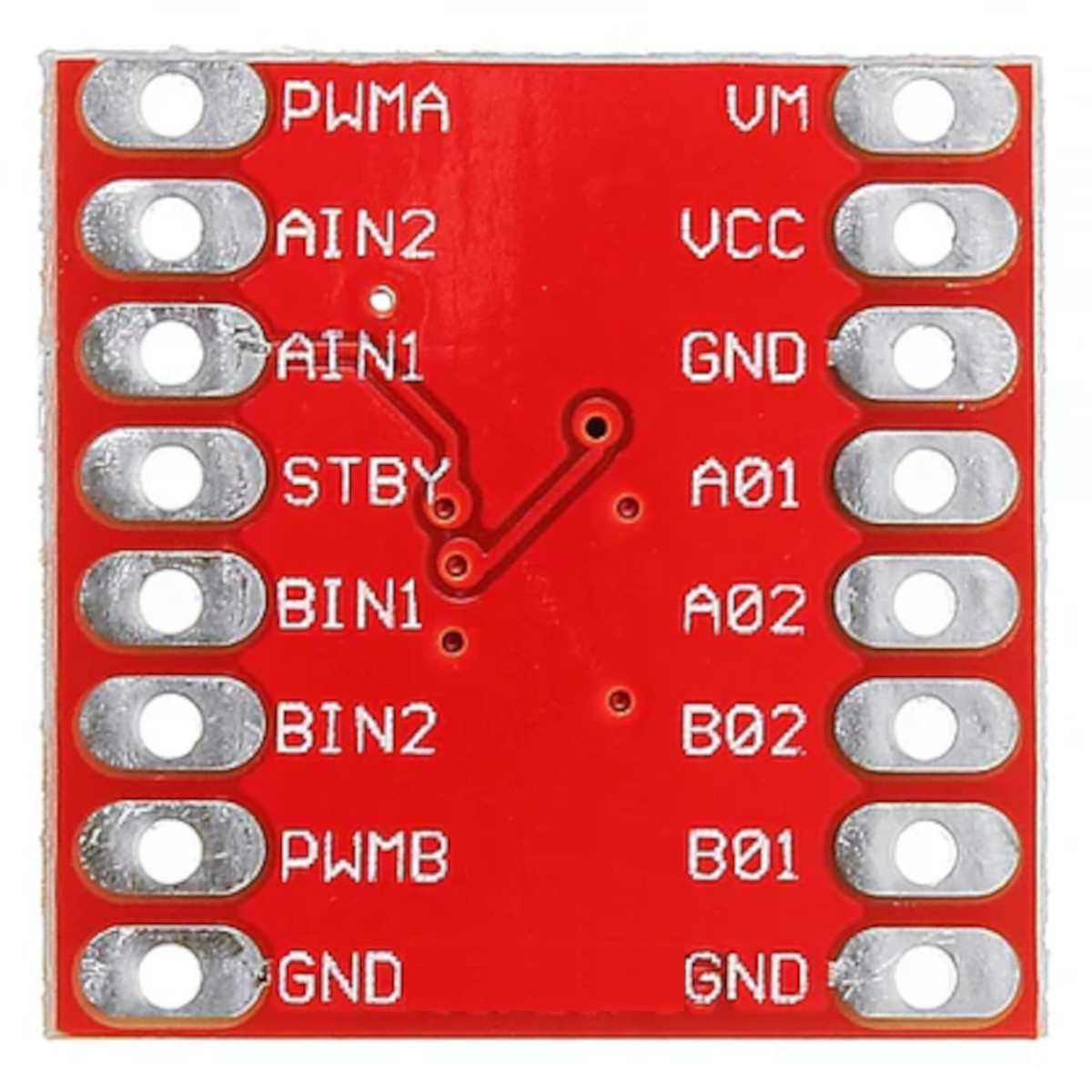

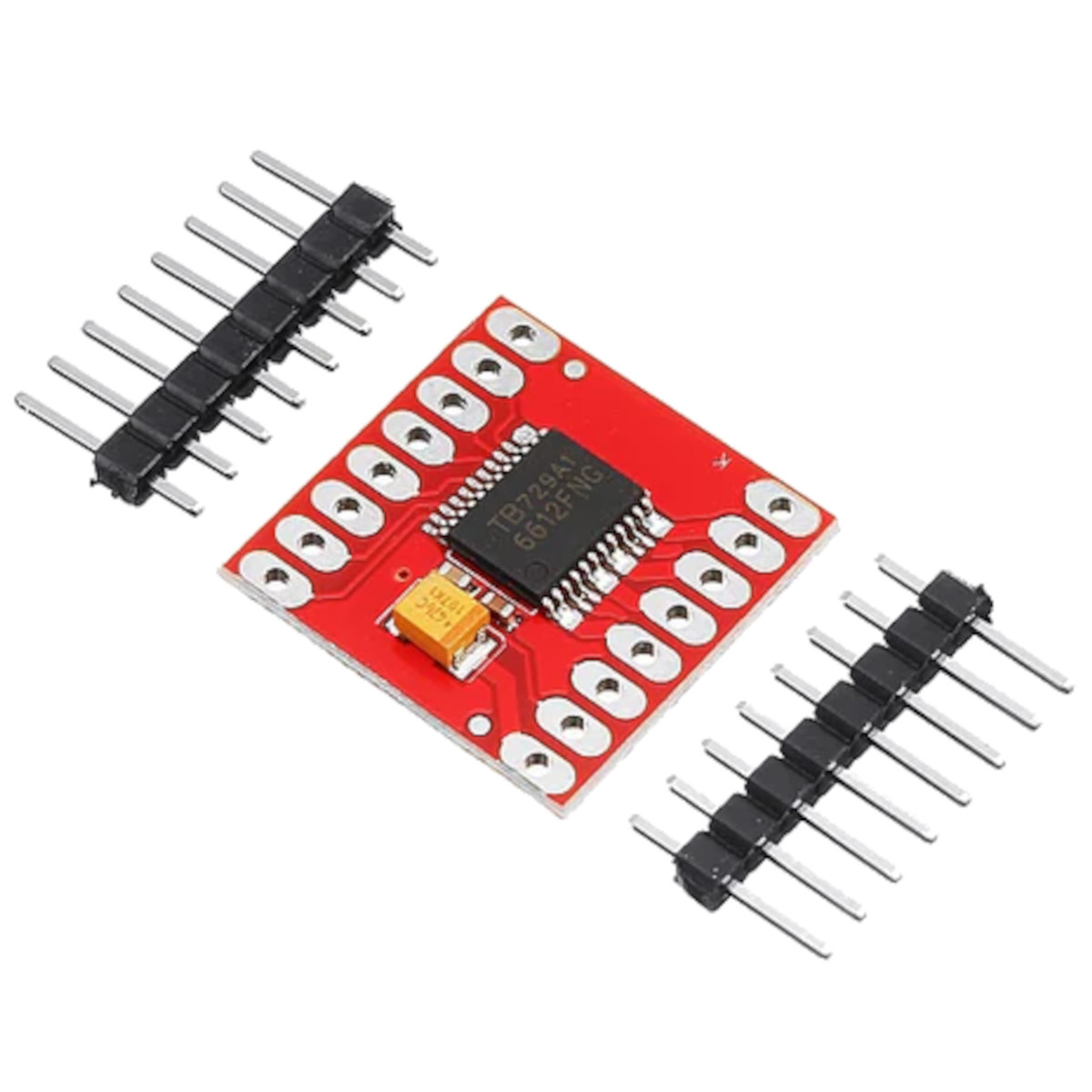

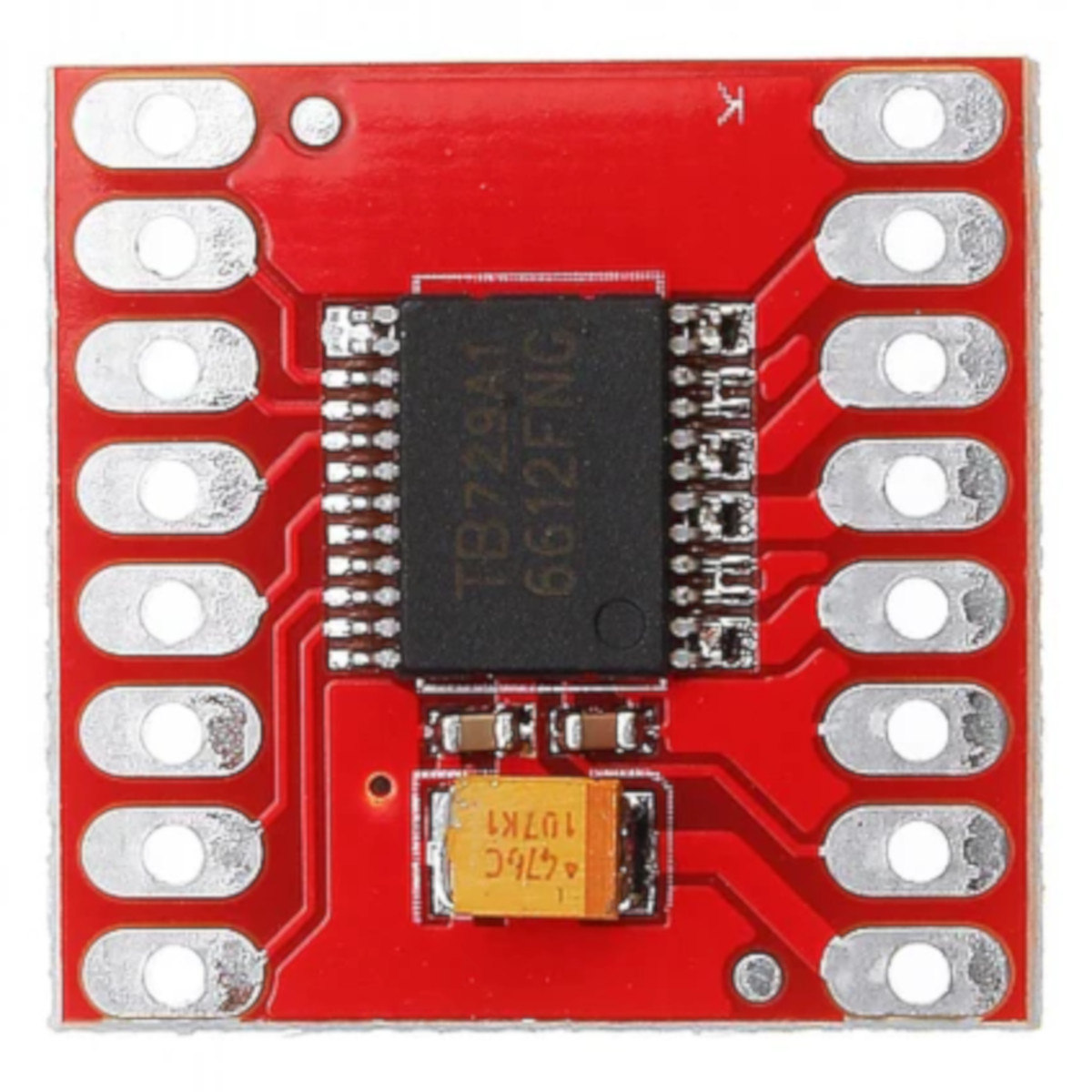

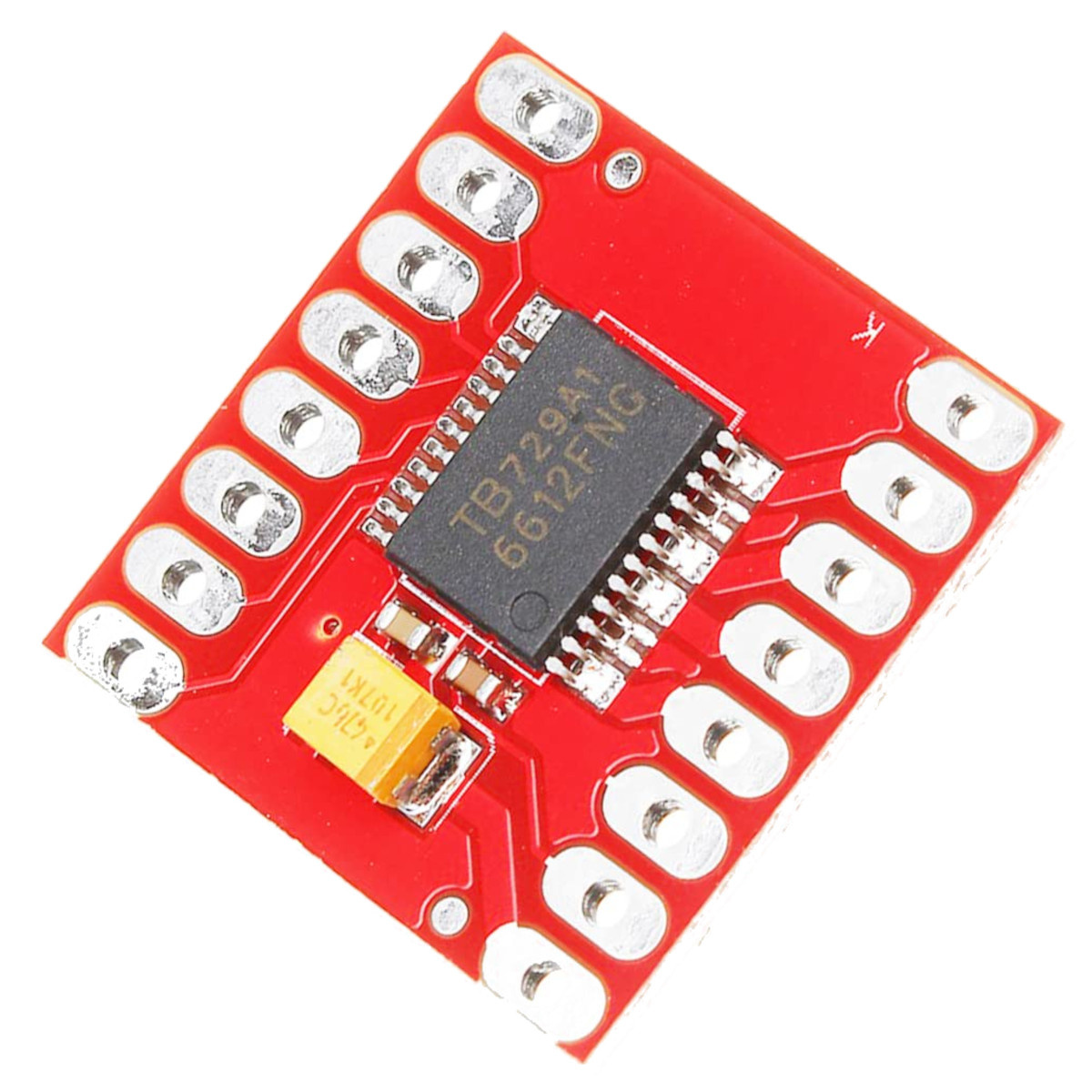

TB6612FNG Dual Motor Driver Module 1A (Dual DC Motor & Stepper Motor Driver for Arduino)

The TB6612FNG Dual Motor Driver Module is a compact and efficient motor control board designed to drive two DC motors or one bipolar stepper motor. Based on the TB6612FNG H-Bridge motor driver IC, it provides independent speed and direction control for each motor using PWM and digital control signals. With up to 1A continuous output current per channel and high-efficiency MOSFET drivers, the module is ideal for Arduino, ESP32, STM32, Raspberry Pi, robotics, automation, and embedded motor control applications.

Key Features -

• Based on the TB6612FNG dual H-Bridge motor driver IC

• Drives two DC motors or one bipolar stepper motor

• Up to 1A continuous output current per channel

• Peak current up to 3A per channel (Short Duration)

• PWM control for smooth motor speed regulation

• Independent forward and reverse direction control

• Low power dissipation with high-efficiency MOSFET outputs

• Standby mode for reduced power consumption

• Compatible with Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers

• Compact PCB module for robotics and embedded projects

Specifications -

• Product type - Dual Motor Driver Module

• Main IC / Chipset - TB6612FNG

• Motor channels - 2 DC Motors or 1 Bipolar Stepper Motor

• Continuous output current - 1A per Channel

• Peak output current - 3A per Channel (Short Duration)

• Logic operating voltage - 2.7V to 5.5V DC

• Motor supply voltage - 4.5V to 13.5V DC

• Control signals - PWM and Digital Direction Inputs

• Driver type - Dual H-Bridge Motor Driver

• Package / Mounting type - PCB Module with Header Pins

Applications -

• Arduino robotic vehicles

• Line-following and obstacle-avoiding robots

• DC motor speed and direction control

• Stepper motor control systems

• Smart automation projects

• Educational robotics and STEM learning

• Embedded motor control applications

• DIY electronics and prototyping
