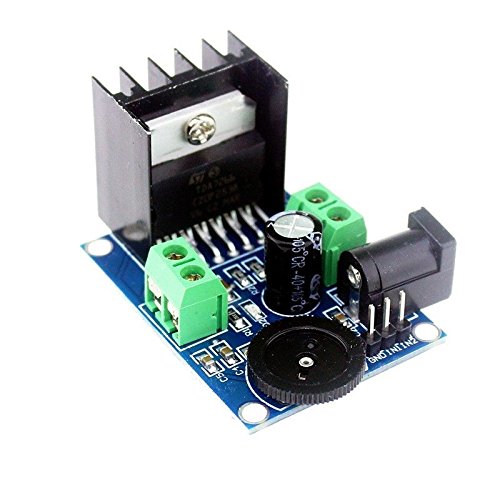

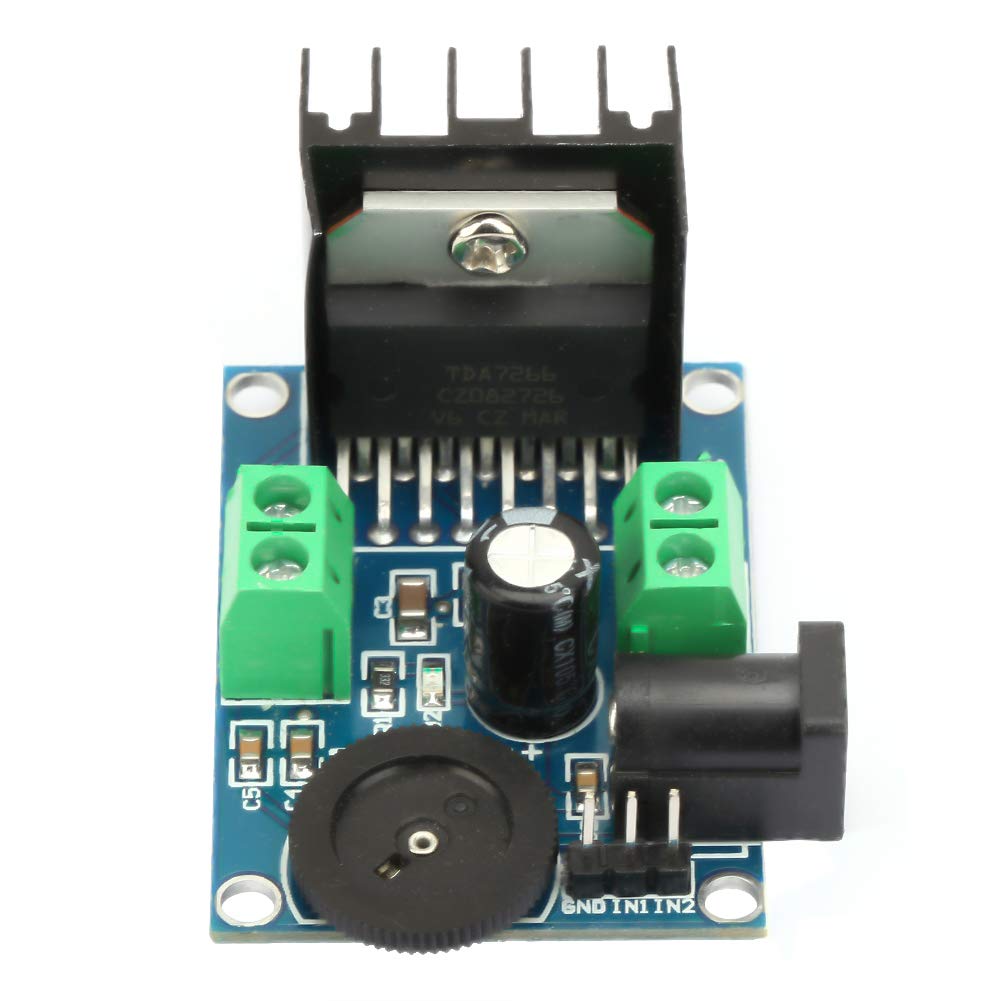

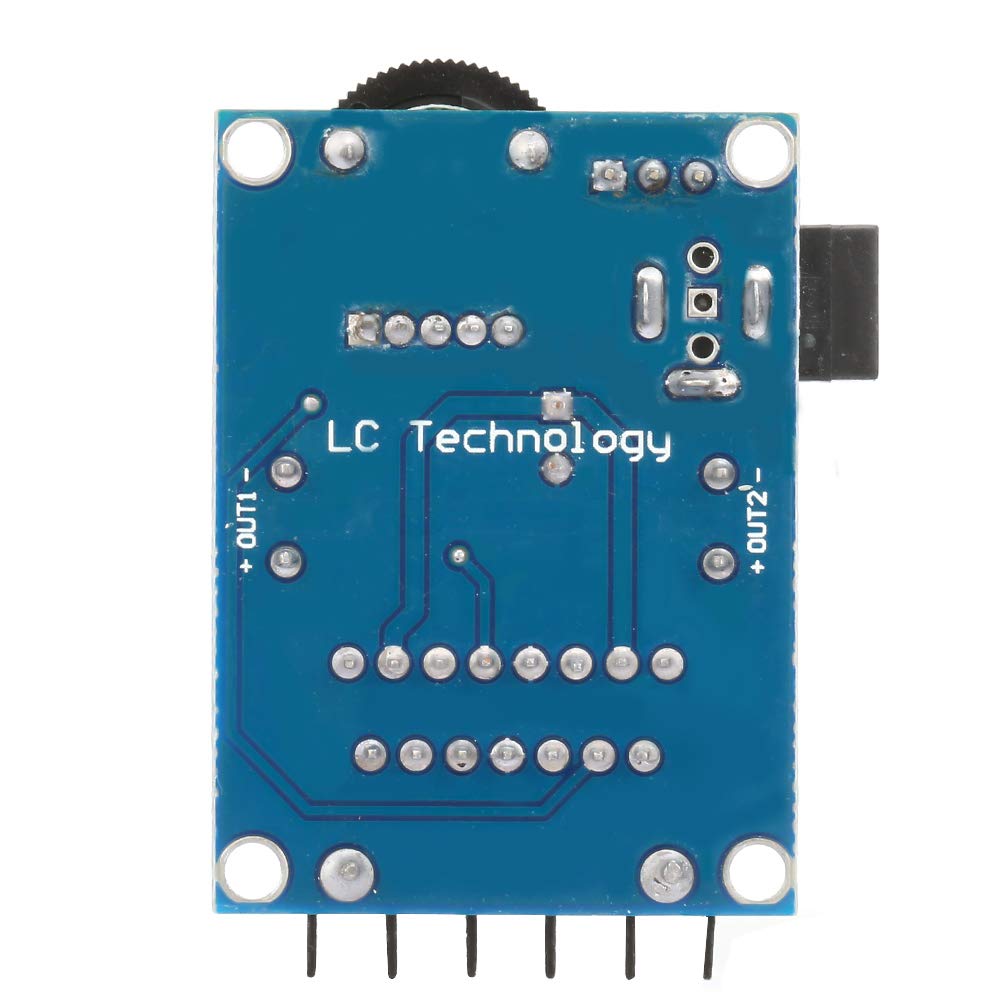

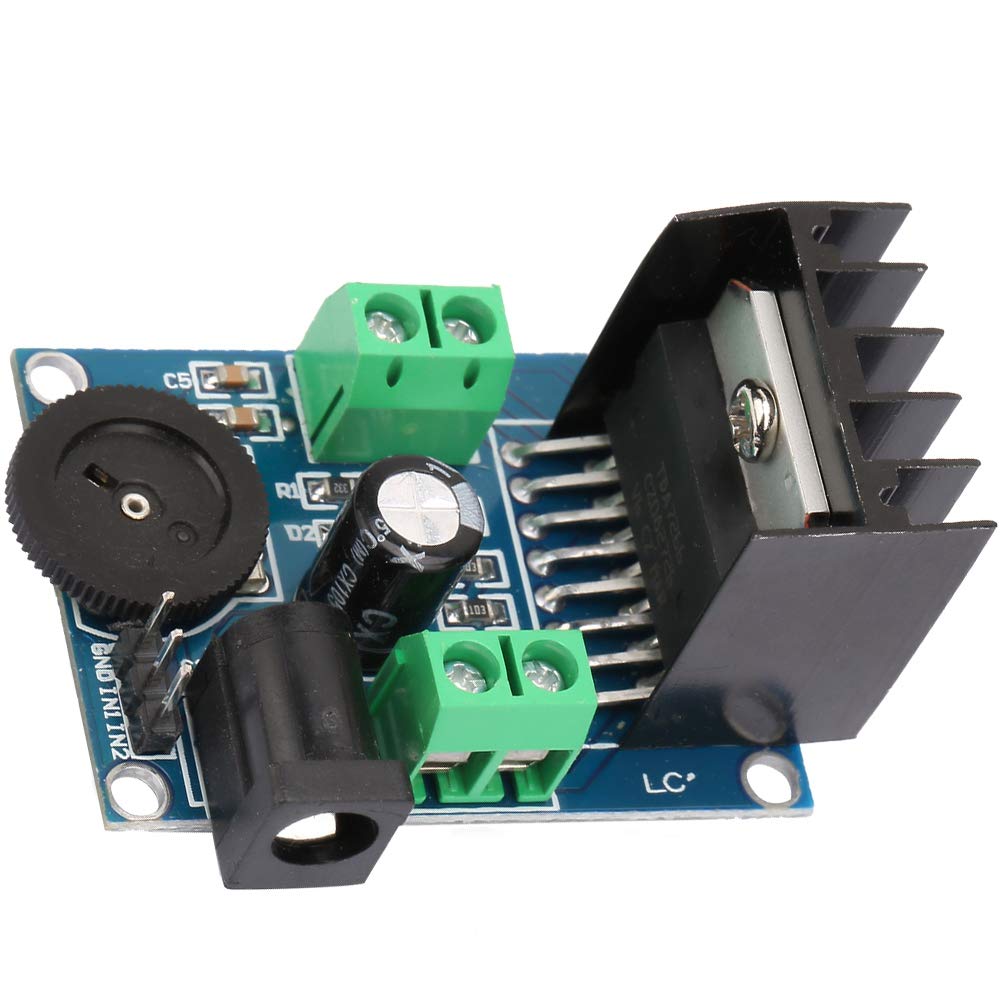

TDA7266 Audio Amplifier Module (Dual Channel Stereo Power Amplifier Board)

The TDA7266 Audio Amplifier Module is a compact dual-channel stereo power amplifier board based on the TDA7266 audio amplifier IC. It is designed to deliver clear and efficient audio amplification for DIY speaker systems, multimedia devices, portable audio equipment, and embedded audio applications. Operating over a wide DC voltage range, the module can drive 4 Ohm to 8 Ohm speakers with low distortion and high audio quality. Its simple input and output connections make it easy to interface with audio sources, Bluetooth audio receivers, MP3 modules, and microcontroller-based projects.

Key Features -

• Based on TDA7266 audio amplifier IC

• Dual-channel stereo audio output

• High-quality audio amplification

• Wide operating voltage range

• Low distortion sound output

• Suitable for 4 Ohm to 8 Ohm speakers

• Compact PCB module

• Easy audio input and speaker connections

• Stable and reliable performance

• Ideal for DIY audio projects

Specifications -

• Product type - Stereo Audio Amplifier Module

• Amplifier IC - TDA7266

• Output channels - 2 (Stereo)

• Operating voltage - 3V to 18V DC

• Output power - Up to 7W + 7W (Depending on Supply Voltage and Load)

• Speaker impedance - 4 Ohm to 8 Ohm

• Input type - Analog Audio

• Output type - Stereo Speaker Output

• Mounting type - PCB Module

• Operating temperature - Standard Ambient

Applications -

• DIY speaker systems

• Bluetooth speakers

• Portable audio devices

• Multimedia systems

• MP3 player projects

• Embedded audio systems

• Educational electronics

• Audio amplification projects
